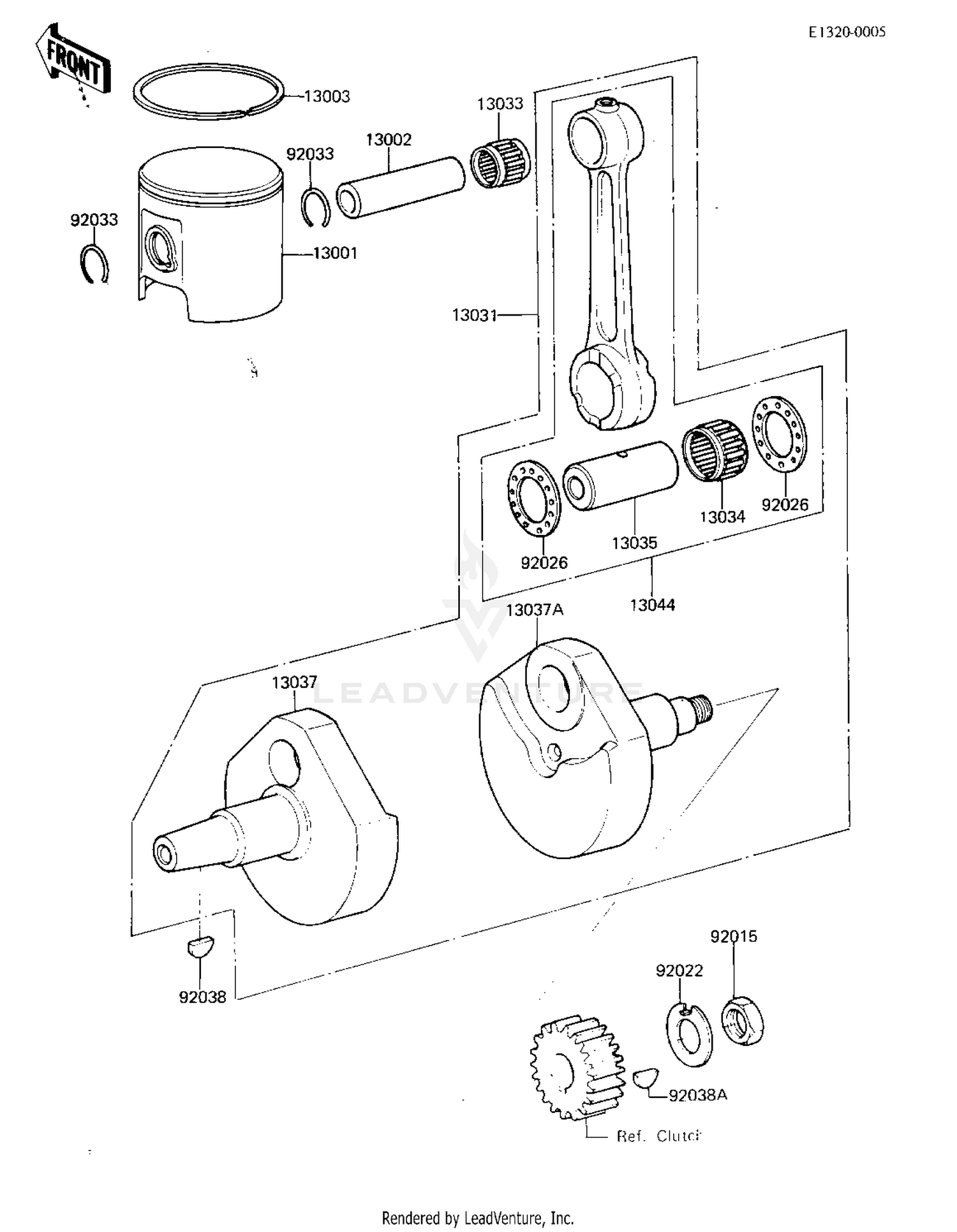

Crankshaft/piston ('81 A7) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13001
PISTON-ENGINE
13001-1052
|
$164.98 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-1003
|
$21.42 | ||
|
Available to order. Add to View Price |
|||
|
#13003
RING,PISTON,S.T.D
13003-1060
|
$110.80 | ||
|
Available to order. Add to View Price |
|||
|
#13031
CRANKSHAFT-COMP
13031-5010
|
$264.42 | ||
|
Available to order. Add to View Price |
|||
|
#13033
BEARING-SMALL END,KBK
13033-1007
Superseded by 13033-1051
|
$22.58 | ||
|
Available to order. Add to View Price |
|||
|
#13034
BEARING-BIG END
13034-1079
|
$63.64 | ||
|
Available to order. Add to View Price |
|||
|
#13035
PIN,CRANK
13035-1001
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#13037
CRANKSHAFT,LH
13037-1103
|
$166.16 | ||
|
Available to order. Add to View Price |
|||
|
#13037A
CRANKSHAFT,RH
13037-1104
|
$166.16 | ||
|
Available to order. Add to View Price |
|||
|
#13044
SET-CONNECTING ROD
13044-5018
Superseded by 13044-5035
|
$203.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT 12MM
92015-006
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,LOCK
92022-1063
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#92026
WASHER SIDE
92026-011
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#92033
CIRCLIP PISTON PIN
92036-004
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92038
KEY,WOODRUFF
92038-001
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92038A
WOODRUFF KEY PRY PINI
92038-003
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
