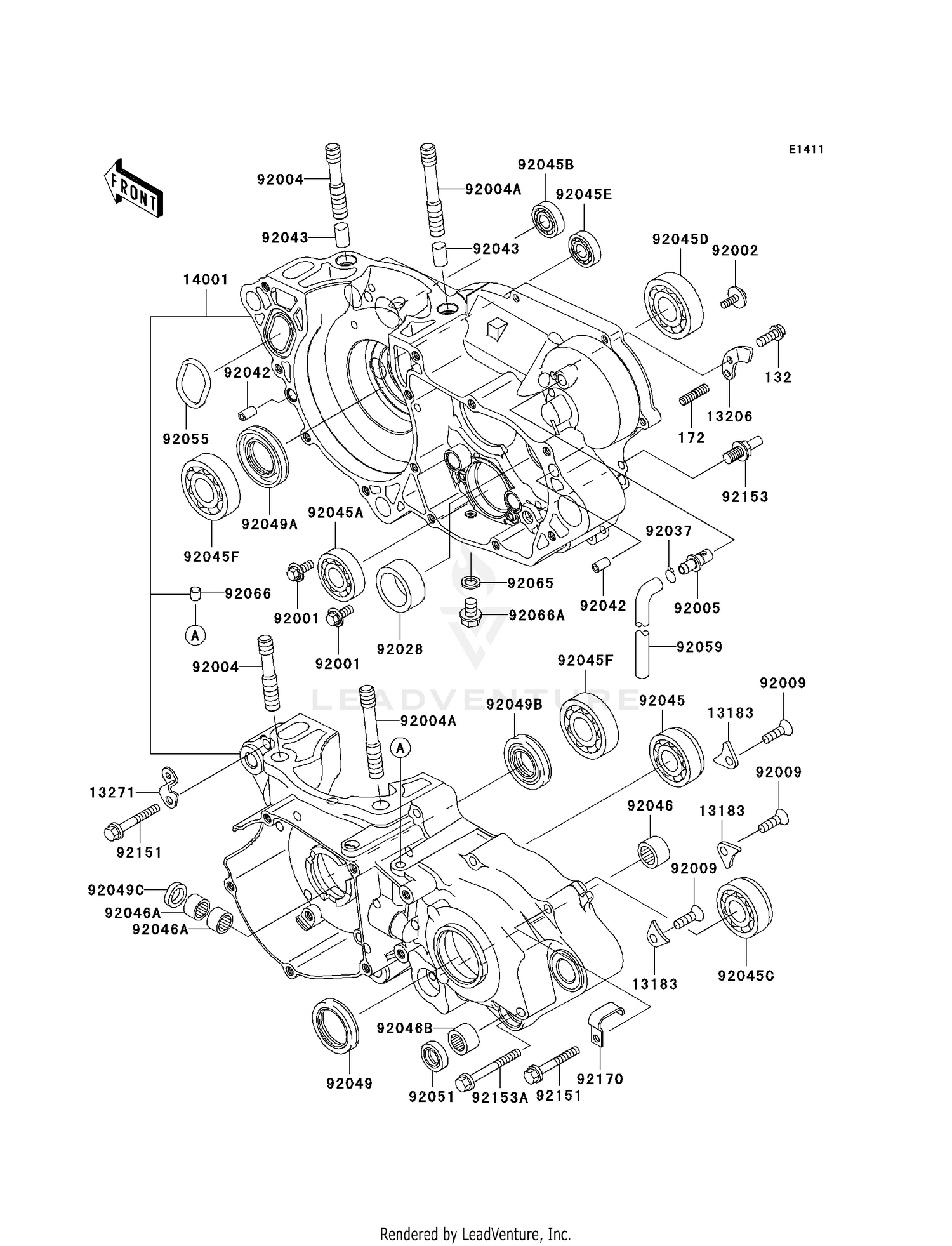

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X16
132G0616
Superseded by 132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#172
BOLT-STUD,6X12
172G0612
Superseded by 172BA0612
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE
13183-1182
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#13206
GUIDE-KICK
13206-1062
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-0549
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE,LH
14001-0065
|
$629.73 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,W/WASHER,6X14
92001-1829
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X16
92002-1659
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X39.5
92004-0022
Superseded by 92004-0810
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#92004A
STUD,10X55
92004-0023
Superseded by 92004-0809
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,BREATHER
92005-0037
|
$14.13 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X10
92009-1563
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,26X35X14
92028-131
|
$36.60 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1610
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,11X14X12.3
92043-1266
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL
92045-0013
|
$30.83 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,6905Z
92045-1058
|
$32.45 | ||
|
Available to order. Add to View Price |
|||
|
#92045B
BEARING-BALL,#628
92045-1123
|
$22.51 | ||
|
Available to order. Add to View Price |
|||
|
#92045C
BEARING-BALL
92045-1240
|
$55.07 | ||
|
Available to order. Add to View Price |
|||
|
#92045D
BEARING-BALL,63/22/25
92045-1300
|
$35.60 | ||
|
Available to order. Add to View Price |
|||
|
#92045E
BEARING-BALL
92045-1345
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#92045F
BEARING-BALL,CRANK MA
92045-1445
|
$68.87 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BRG,N,7E-HK1412
92046-037
|
$20.91 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#92046B
BEARING-NEEDLE,HK1312
92046-1148
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TC 30 40 7
92049-0030
|
$19.23 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL
92049-0031
|
$32.36 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL
92049-0032
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,AG0353-F0
92049-1262
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92051
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0059
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE
92059-103
Superseded by 92059-1939
|
$17.97 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,OIL LINE,7.2X8
92066-1012
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,DRAIN
92066-1437
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT-FLANGED-SMALL,6X
92151-1336
Superseded by 132BC0645
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,RETURN
92153-0629
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,6X75
92153-0862
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1555
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
