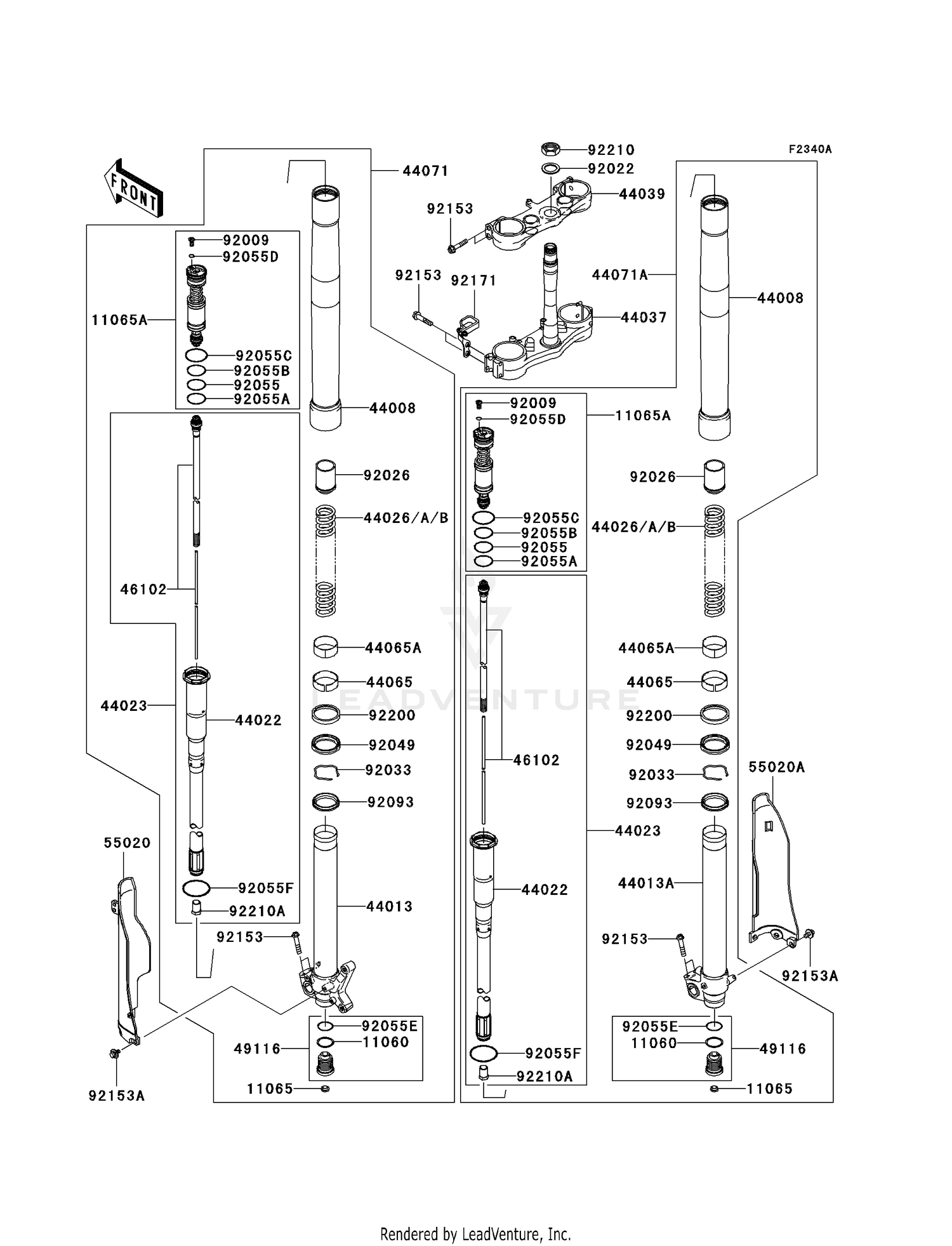

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11060
GASKET
11060-1707
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-0097
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#11065A
CAP
11065-0139
|
$399.26 | ||
|
Available to order. Add to View Price |
|||
|
#44008
PIPE-FORK OUTER,GOLD
44008-0022-828
|
$628.42 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER,LH
44013-0047
|
$430.37 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,RH
44013-0048
|
$430.37 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-0013
|
$564.02 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-0034
|
$937.90 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK,K=4
44026-0052
|
$93.17 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK,K=4
44026-0054
|
$93.17 | ||
|
Available to order. Add to View Price |
|||
|
#44026B
SPRING-FRONT FORK,K=4
44026-0056
|
$93.17 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER,M.M
44037-0031-10Y
|
$600.66 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,M.M
44039-0017-10Y
|
$264.84 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK
44065-0006
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK
44065-1140
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#44071
DAMPER-ASSY,FORK,LH,G
44071-0363-828
|
$1,363.34 | ||
|
Available to order. Add to View Price |
|||
|
#44071A
DAMPER-ASSY,FORK,RH,G
44071-0364-828
|
$1,363.34 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD
46102-0072
|
$569.09 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY
49116-0011
|
$211.49 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FORK,LH,WHITE
55020-0172-RZ
|
$62.09 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,FORK,RH,WHITE
55020-0173-RZ
Superseded by 55020-0334-RZ
|
$62.09 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1884
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,25X36X2.3
92022-250
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-0072
|
$40.66 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1329
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-0070
|
$26.13 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0071
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-0072
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-0075
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O
92055-0076
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#92055D
RING-O,2.8X6.6X1.9
92055-1441
|
$2.87 | ||
|
Unavailable |
|||
|
#92055E
RING-O,FORK VALVE
92055-1547
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92055F
RING-O
92055-1677
|
$9.43 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1566
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,8X40
92153-0484
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,6X14
92153-0936
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,HOSE
92171-0414
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0067
|
$12.38 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,24MM
92210-0066
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT
92210-0196
|
$22.93 | ||
|
Available to order. Add to View Price |
|||
