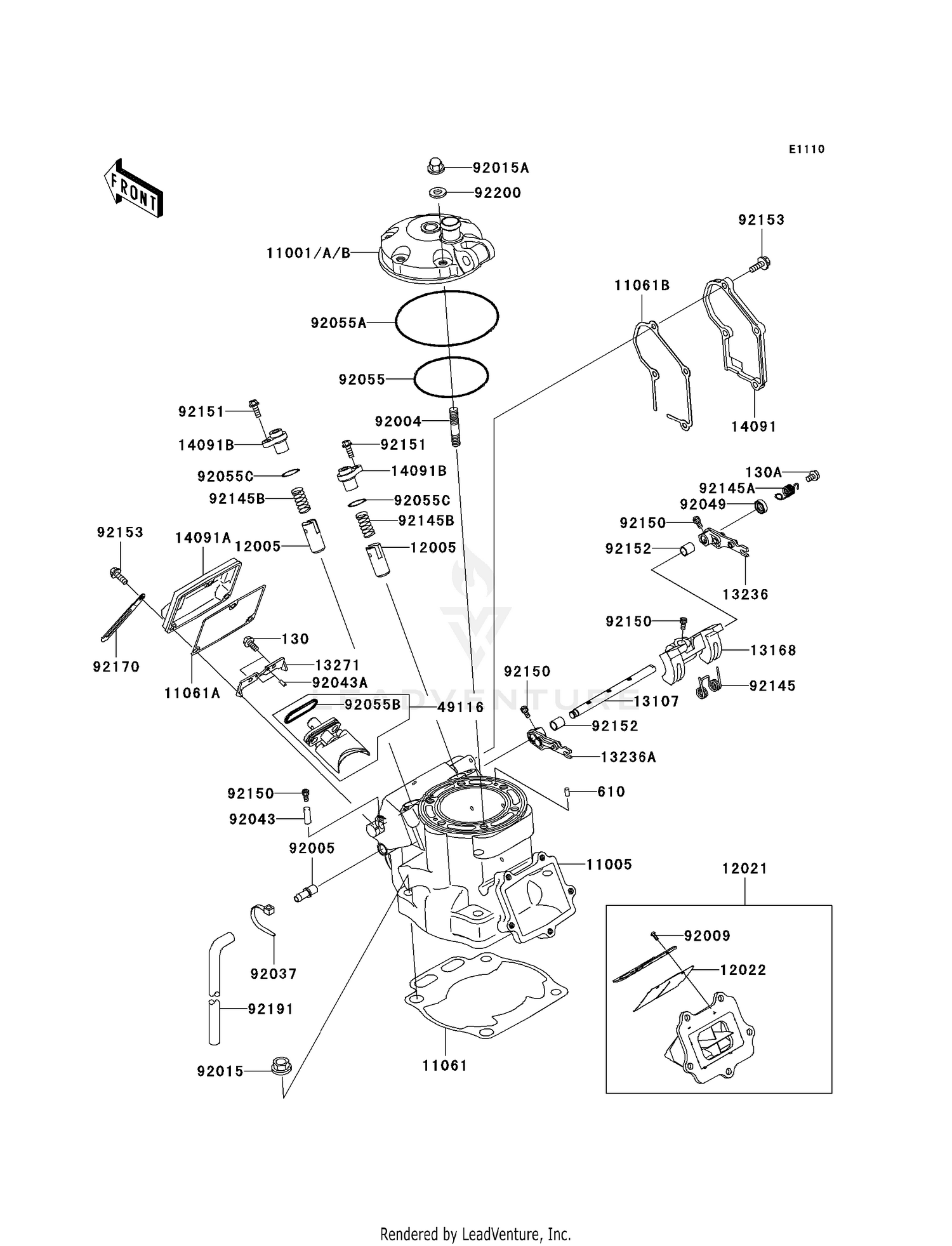

Cylinder Head/cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11001A
HEAD-CYLINDER
11001-0107
|
$350.50 | ||
|
Available to order. Add to View Price |
|||
|
#11001B
HEAD-CYLINDER
11001-0108
|
$350.50 | ||
|
Available to order. Add to View Price |
|||
|
#11005
CYLINDER-ENGINE
11005-0054
|
$896.89 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,CYLINDER BASE
11061-0091
|
$15.24 | ||
|
Available to order. Add to View Price |
|||
|
#11061A
GASKET,CNT
11061-0092
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#11061B
GASKET,GOVERNOR COVER
11061-0093
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#12005
VALVE-EXHAUST
12005-0019
|
$27.15 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-0014
|
$285.70 | ||
|
Available to order. Add to View Price |
|||
|
#12022
VALVE-REED
12022-0004
|
$68.47 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT
13107-0062
|
$27.75 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,VALVE-ASSY,MAIN
13168-0058
|
$96.28 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,RH
13236-0054
|
$56.63 | ||
|
Unavailable |
|||
|
#13236A
LEVER-COMP,LH
13236-0081
|
$56.63 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-0518
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,RH
14091-0215
|
$43.11 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,CNT
14091-0217
|
$43.11 | ||
|
Available to order. Add to View Price |
|||
|
#14091B
COVER,SUB VALVE
14091-0437
|
$15.57 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY,MAIN
49116-0007
|
$178.89 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,8X20
92004-1110
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,BREATHER
92005-1127
|
$16.56 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,REED VALVE
92009-1014
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-077
Superseded by 92015-1415
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CAP,8MM
92015-1151
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1173
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,3X8.5
92043-0033
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,3X6.8
92043-0068
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SD088144
92049-1238
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,73.9X1.9
92055-0049
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,103.3X1.9
92055-0050
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-0051
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,8.8X1.9
92055-0058
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0180
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,MAIN,VALVE
92145-0284
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING
92145-0298
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,4X8
92150-1888
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT-FLANGED-SMALL,6X14
92151-1423
Superseded by 132BC0614
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,8.1X10.0X11.2
92152-0264
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,5X16
92153-0859
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1514
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X12
130G0512
Superseded by 130BA0512
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED
130L0508
Superseded by 130BB0508
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#610
ROLLER,4X8
610A0408
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,5.8X10.8X225
92191-1692
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,HEAD
92200-0273
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
