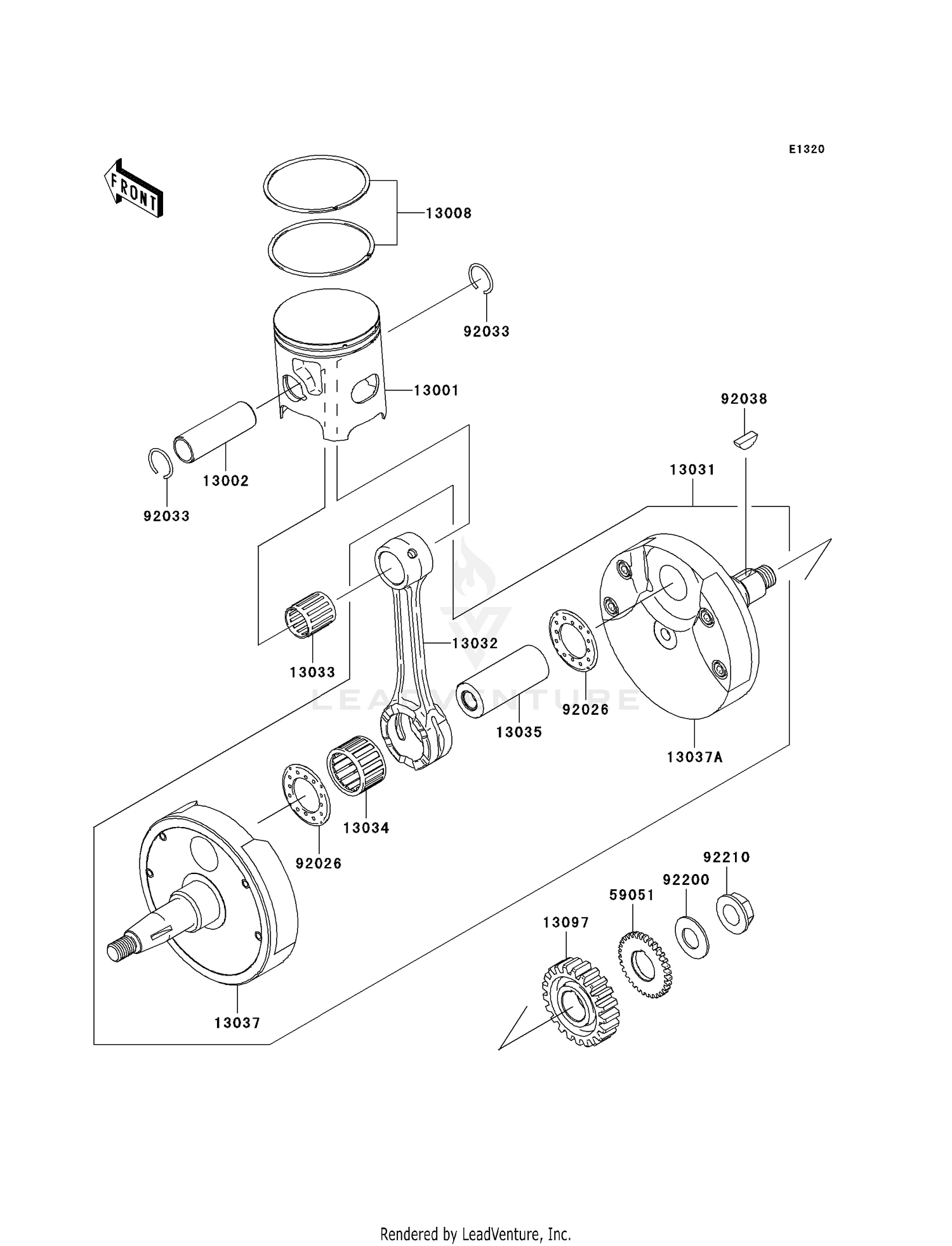

Crankshaft/piston(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13001
PISTON-ENGINE,SIZE B
13001-0058
|
$147.93 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-1098
|
$27.40 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING-SET-PISTON
13008-0013
|
$44.59 | ||
|
Available to order. Add to View Price |
|||
|
#13031
CRANKSHAFT-COMP
13031-0050
|
$583.21 | ||
|
Available to order. Add to View Price |
|||
|
#13032
ROD-CONNECTING,SCM420
13032-1279
|
$102.10 | ||
|
Available to order. Add to View Price |
|||
|
#13033
BEARING-SMALL END
13033-1010
|
$24.26 | ||
|
Available to order. Add to View Price |
|||
|
#13034
BEARING-BIG END,B4
13034-0005
|
$76.00 | ||
|
Available to order. Add to View Price |
|||
|
#13035
PIN-CRANK
13035-1089
|
$28.42 | ||
|
Available to order. Add to View Price |
|||
|
#13037
CRANKSHAFT,LH
13037-0032
|
$213.47 | ||
|
Available to order. Add to View Price |
|||
|
#13037A
CRANKSHAFT,RH
13037-0062
|
$215.16 | ||
|
Available to order. Add to View Price |
|||
|
#13097
GEAR-PRIMARY SPUR,21T
13097-0039
|
$93.42 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,32T
59051-0050
|
$36.10 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,24X42X1.6
92026-1607
|
$9.43 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,PISTON PIN
92033-1336
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#92038
KEY,WOODRUFF
92038-0001
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,14.2X28X1.5
92200-0217
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,14MM,LEFT HANDED
92210-0216
Superseded by 92210-0600
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
