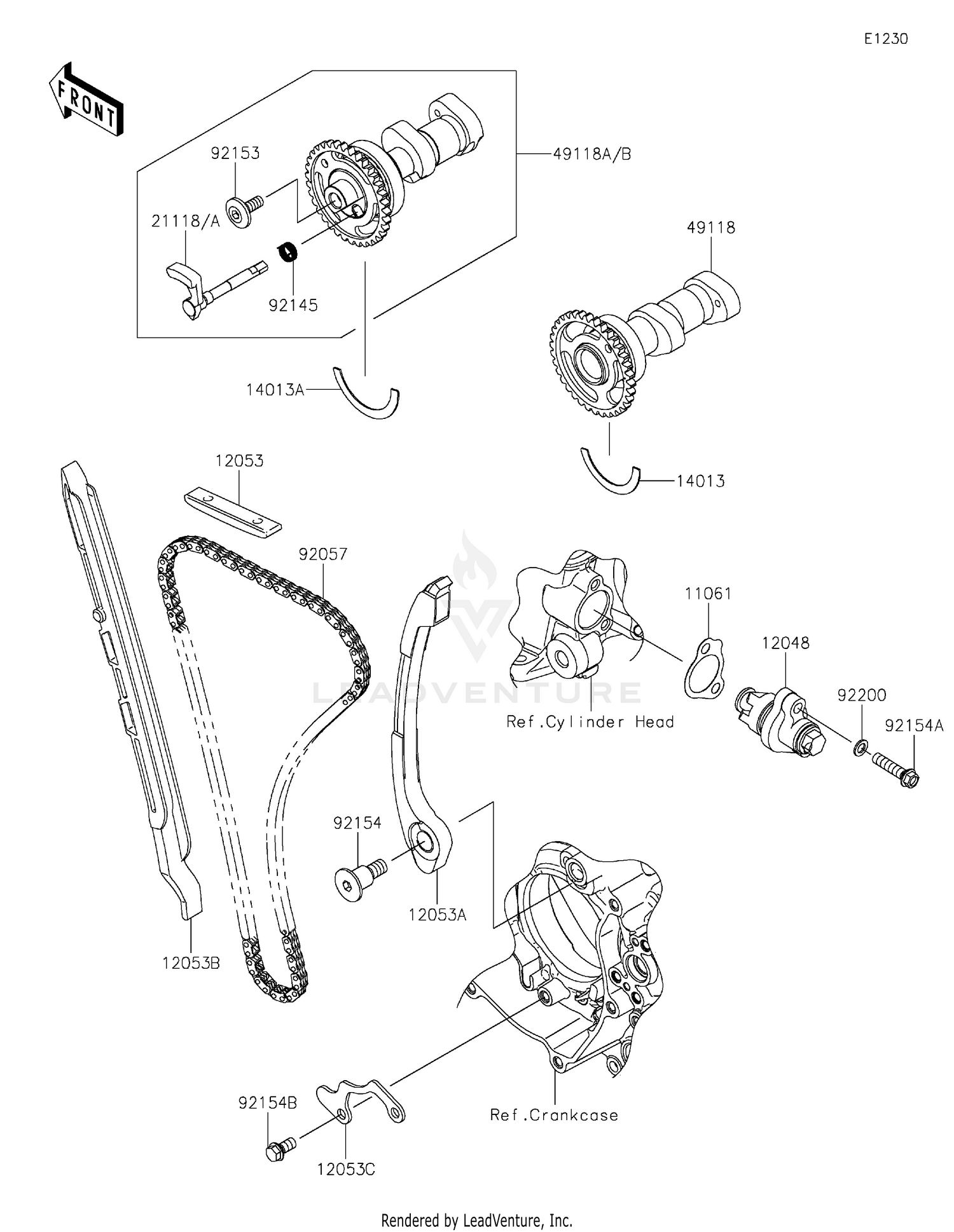

Camshaft(s)/tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET
11061-1288
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#12048
TENSIONER-ASSY
12048-0088
|
$129.71 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE-CHAIN,UPP
12053-0051
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN,RR
12053-0255
Superseded by 12053-0306
|
$66.50 | ||
|
Available to order. Add to View Price |
|||
|
#12053B
GUIDE-CHAIN,FR
12053-0256
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12053C
GUIDE-CHAIN,STOPPER
12053-0257
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#14013
RING-POSITION
14013-0003
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#14013A
RING-POSITION
14013-0004
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#21118
DECOMPRESSOR
21118-0024
Superseded by 21118-0026
|
$104.05 | ||
|
Available to order. Add to View Price |
|||
|
#21118A
DECOMPRESSOR
21118-0026
|
$104.05 | ||
|
Unavailable |
|||
|
#49118
CAMSHAFT-COMP,INTAKE
49118-0930
Superseded by 49118-0991
|
$207.34 | ||
|
Available to order. Add to View Price |
|||
|
#49118A
CAMSHAFT-COMP,EXHAUST
49118-0931
Superseded by 49118-0992
|
$268.43 | ||
|
Available to order. Add to View Price |
|||
|
#49118B
CAMSHAFT-COMP,EXHAUST
49118-0983
Superseded by 49118-0992
|
$268.43 | ||
|
Unavailable |
|||
|
#92057
CHAIN,CAM,98XRH2010-126M
92057-0078
|
$56.47 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,DECOMP
92145-0365
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X16
92153-0918
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT
92154-2944
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,FLANGED,6X25
92154-2967
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,FLANGED,6X12
92154-2975
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.1X10.0X1.0
92200-0190
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
