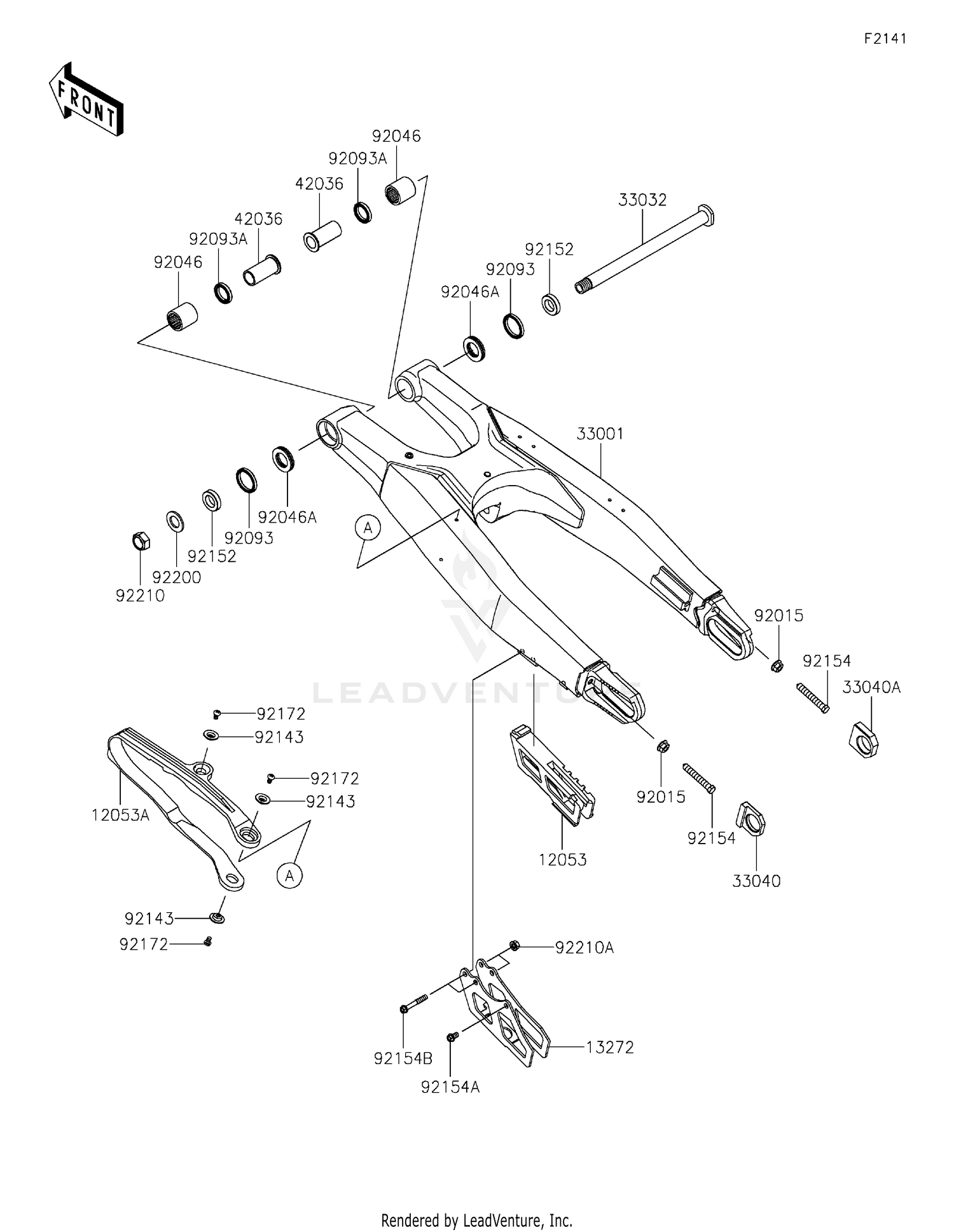

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#12053
GUIDE-CHAIN
12053-0125
|
$63.18 | ||
|
Available to order. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN
12053-0254
|
$82.94 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE,CHAIN GUARD
13272-2485
|
$45.02 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING
33001-0713
|
$946.26 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SWING ARM
33032-0012
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER-CHAIN,LH
33040-0050
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#33040A
ADJUSTER-CHAIN,RH
33040-0080
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,17X22X47.3
42036-0784
|
$27.32 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,TA2230Z
92046-1174
|
$35.49 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,NTBR22356E01
92046-1240
|
$18.44 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,SDO29X35X4.5
92093-1434
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,SDO22X29X5
92093-1435
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1676
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,17.1X29X6.7
92152-2222
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,8X50
92154-2957
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,6X10
92154-2963
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,6X40
92154-2968
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,5X8
92172-0119
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,17.2X30X2.3
92200-0285
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,16MM
92210-0285
|
$19.65 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,FLANGED,6MM
92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
