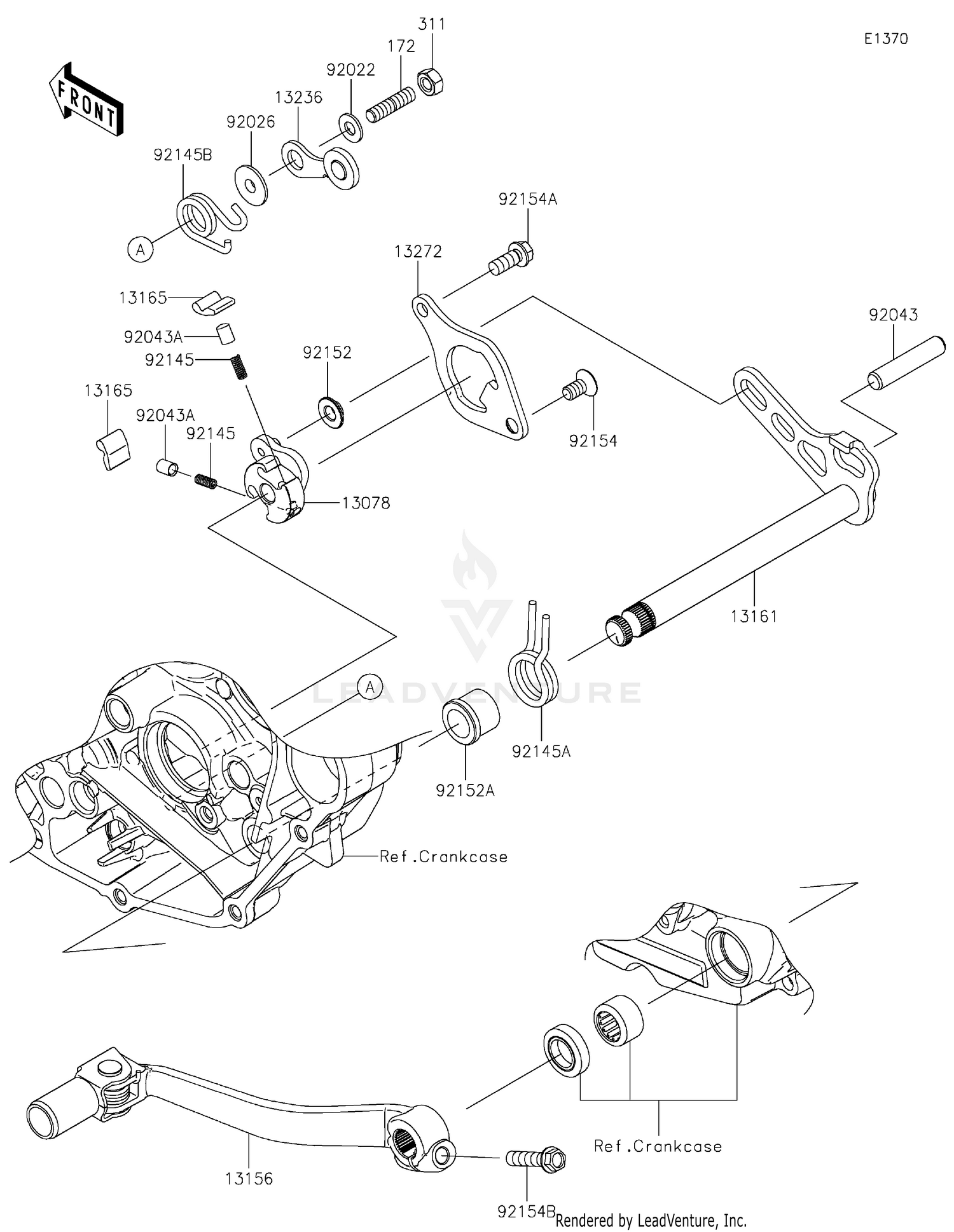

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13078
RATCHET
13078-0029
|
$69.02 | ||
|
Available to order. Add to View Price |
|||
|
#13156
LEVER-CHANGE
13156-0614
|
$103.93 | ||
|
Available to order. Add to View Price |
|||
|
#13161
LEVER-COMP-CHANGE SHAFT
13161-0583
|
$65.74 | ||
|
Available to order. Add to View Price |
|||
|
#13165
PAWL
13165-0018
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP
13236-0764
|
$15.73 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE,POLE GUIDE
13272-1940
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6X12.8X1.2
92022-1827
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1217
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X39
92043-0017
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,PLUNGER
92043-1676
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0453
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,RETURN
92145-0496
|
$13.24 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING,POSITION LEVER RETURN
92145-1669
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1414
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR
92152-2120
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,TORX
92154-1621
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,FLANGED,6X14
92154-2964
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,FLANGED,6X25
92154-2967
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#172
BOLT-STUD,6X12
172BA0612
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311BA0600
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
