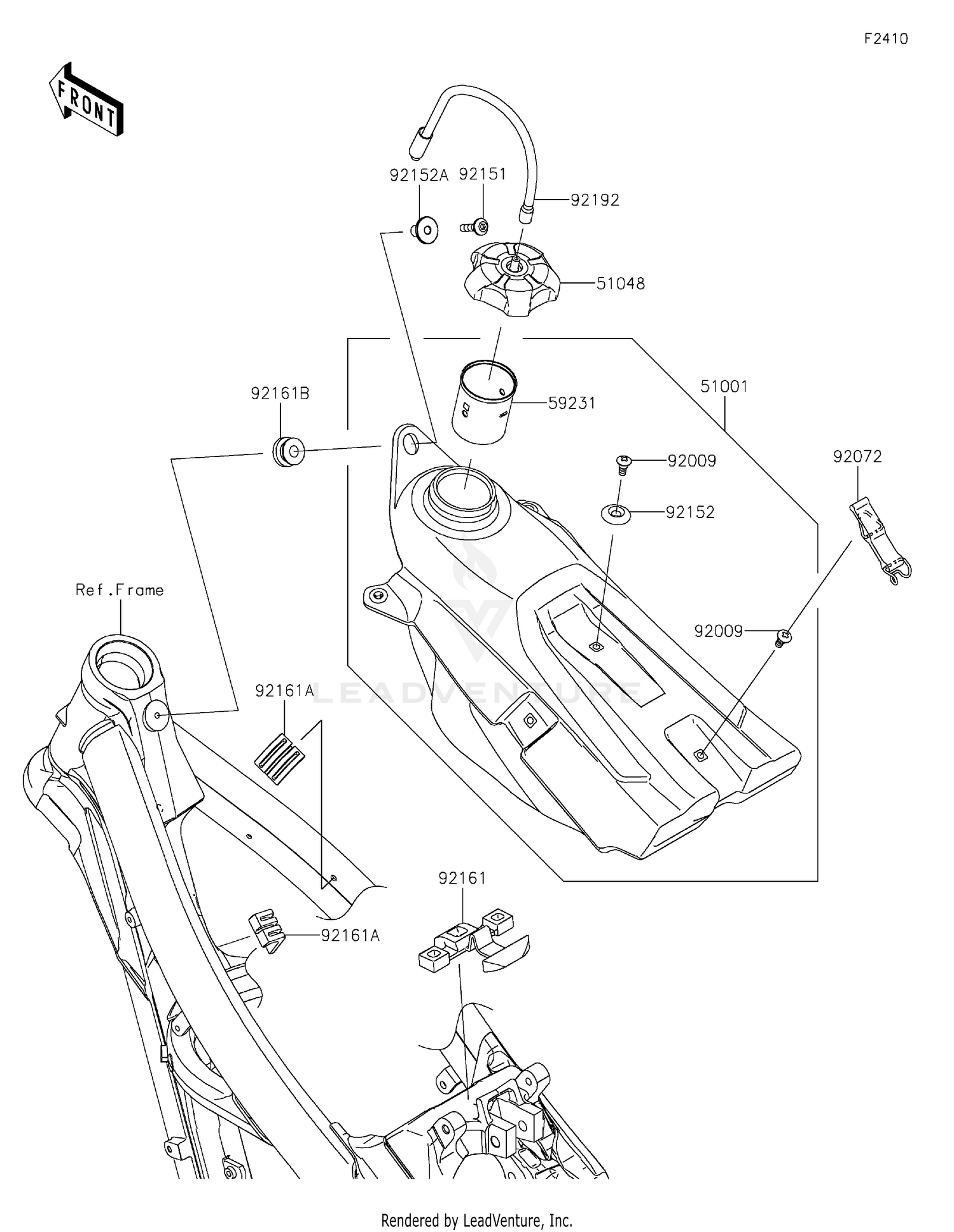

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#51001
TANK-COMP-FUEL
51001-0862
|
$614.25 | ||
|
Available to order. Add to View Price |
|||
|
#51048
CAP-ASSY-TANK
51048-0576
|
$52.41 | ||
|
Available to order. Add to View Price |
|||
|
#59231
FILLER
59231-0042
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6MM
92009-1971
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,FUEL TANK
92072-0045
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X25
92151-1611
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0569
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,6.5X10X18
92152-2456
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,FUEL TANK,RR
92161-1377
|
$19.39 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,FUEL TANK,SIDE
92161-1393
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER,FUEL TANK,FR
92161-1914
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE
92192-0161
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
