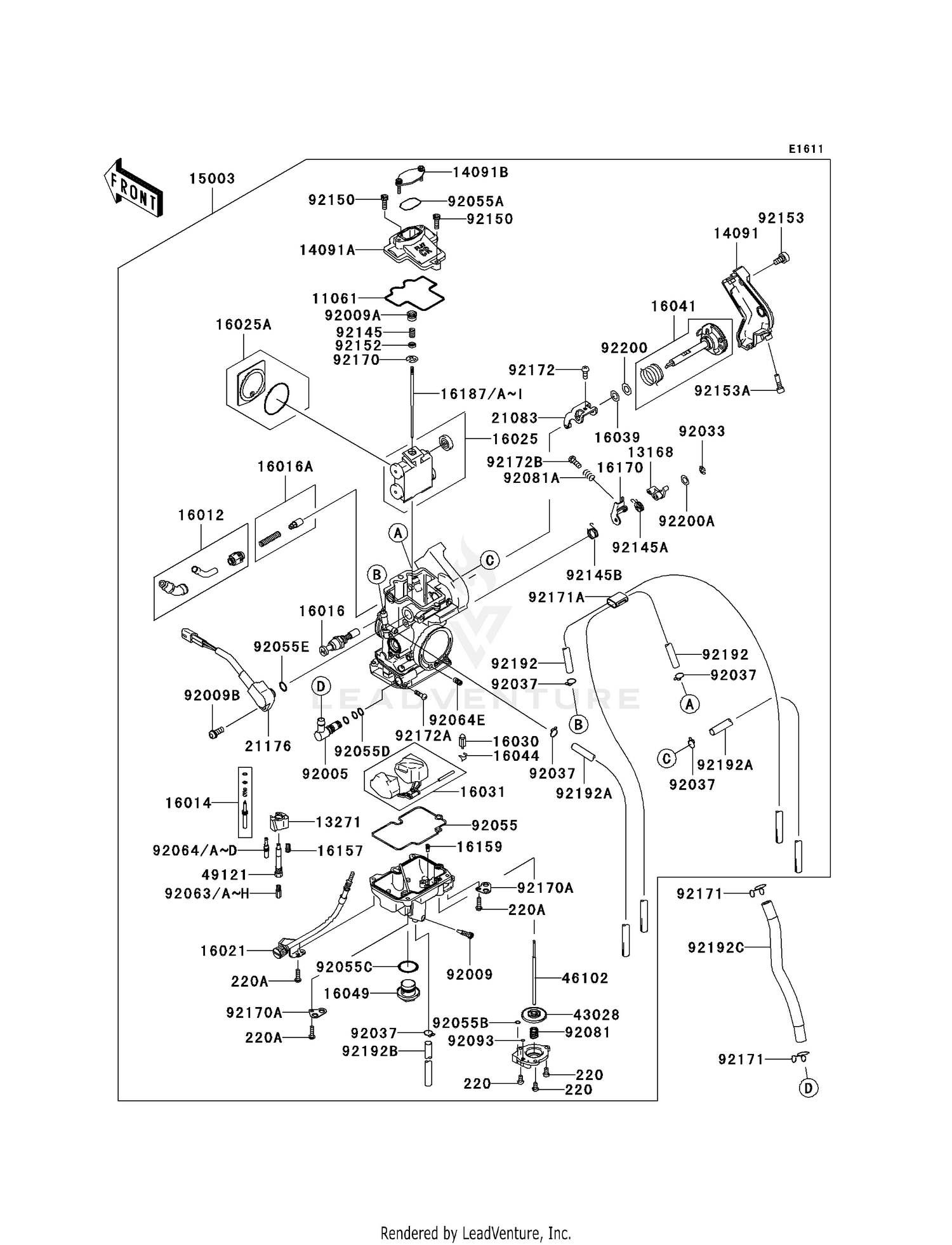

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET
11061-0077
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER
13168-0051
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-0241
|
$16.00 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER
14091-0209
|
$52.30 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,TOP
14091-0587
|
$28.18 | ||
|
Available to order. Add to View Price |
|||
|
#14091B
COVER
14091-0588
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY,FCR-M
15003-0116
|
$1,034.69 | ||
|
Available to order. Add to View Price |
|||
|
#16012
CAP-STARTER PLUNGER
16012-0002
|
$20.73 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-0004
|
$17.17 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-0009
|
$40.01 | ||
|
Available to order. Add to View Price |
|||
|
#16016A
PLUNGER
16016-0017
|
$16.12 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-0013
|
$42.29 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE
16025-0008
|
$312.67 | ||
|
Available to order. Add to View Price |
|||
|
#16025A
VALVE-THROTTLE
16025-0009
|
$70.69 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1057
|
$45.31 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1100
|
$55.77 | ||
|
Available to order. Add to View Price |
|||
|
#16039
WASHER
16039-0230
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#16041
SHAFT-CARBURETOR
16041-0002
|
$168.25 | ||
|
Unavailable |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER-MAIN JET
16049-1051
|
$32.02 | ||
|
Available to order. Add to View Price |
|||
|
#16157
JET-STARTER
16157-0003
|
$14.57 | ||
|
Available to order. Add to View Price |
|||
|
#16159
JET-POWER
16159-0004
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#16170
LINK-ASSY
16170-0003
|
$15.85 | ||
|
Available to order. Add to View Price |
|||
|
#16187
NEEDLE-JET,NCYP
16187-0188
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#16187A
NEEDLE-JET,NCYQ
16187-0189
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#16187B
NEEDLE-JET
16187-0190
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#16187C
NEEDLE-JET,NCYS
16187-0191
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#16187D
NEEDLE-JET,NCYT
16187-0192
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#16187E
NEEDLE-JET,NCVP
16187-0212
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#16187F
NEEDLE-JET,NCVQ
16187-0213
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#16187G
NEEDLE-JET,NCVR
16187-0214
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#16187H
NEEDLE-JET,NCVS
16187-0215
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#16187I
NEEDLE-JET,NCVT
16187-0216
|
$39.65 | ||
|
Available to order. Add to View Price |
|||
|
#21083
ARM
21083-0004
|
$29.09 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR
21176-0016
|
$91.48 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-0006
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD
46102-0033
|
$24.27 | ||
|
Available to order. Add to View Price |
|||
|
#49121
NOZZLE-MAIN
49121-0001
|
$36.14 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-0016
|
$24.05 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,6X0.75
92009-1551
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1876
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,THROTTLE SENSOR
92009-1981
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-0018
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1396
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0066
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-0109
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O
92055-1004
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,MAIN JET COVER
92055-1167
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92055D
RING-O
92055-1223
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055E
RING-O
92055-1671
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#165
92063-1370
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN
92063-1371
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN
92063-1372
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#172
92063-1373
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN
92063-1374
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#178
92063-1375
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063F
JET-MAIN,#180
92063-1376
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063G
JET-MAIN,#182
92063-1377
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063H
JET-MAIN
92063-1378
|
$17.02 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#38
92064-1139
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#40
92064-1140
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT,#42
92064-1141
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064C
JET-PILOT,#45
92064-1142
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220D0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220D0414
Superseded by 220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92064D
JET-PILOT,#48
92064-1143
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064E
JET-PILOT,#100
92064-1160
|
$14.39 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,DIAPHRAGM
92081-1092
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING
92081-1620
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,U-RING
92093-1046
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0164
|
$16.61 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING
92145-0166
|
$16.61 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING
92145-0167
|
$16.61 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,4X12
92150-1426
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0141
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-0639
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT
92153-1512
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,JET NEEDLE
92170-1204
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1582
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0149
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-0246
|
$6.06 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-0127
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW
92172-0128
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92172B
SCREW
92172-0129
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE
92192-0083
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE
92192-0084
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#92192B
TUBE
92192-0085
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#92192C
TUBE,7X12X270,PROTECT
92192-0219
|
$18.16 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0107
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,LINK ARM,STAIN
92200-1434
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
