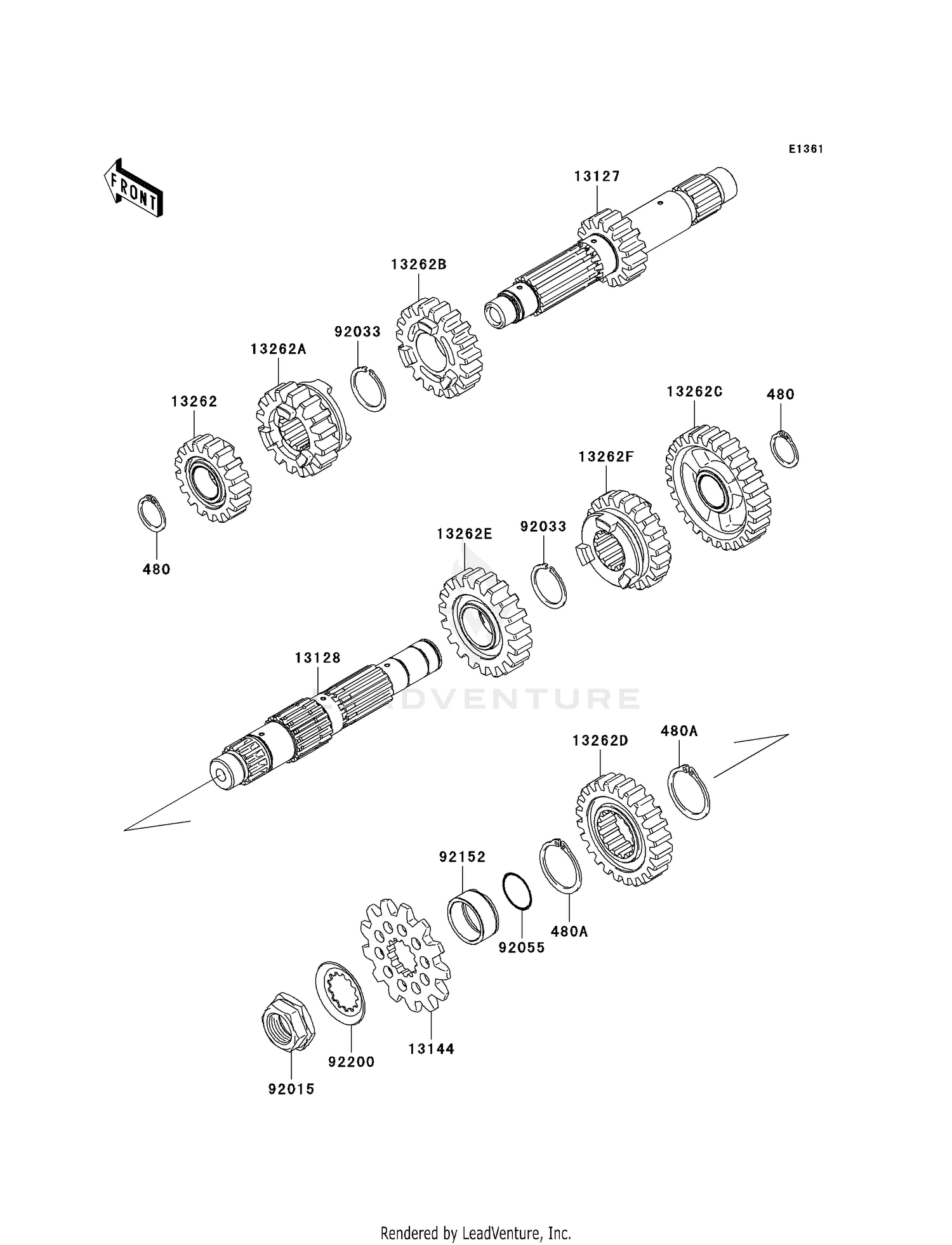

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#480
CIRCLIP-TYPE-C,19MM
480J1900
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP-TYPE-C,30MM
480J3000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#13127
SHAFT-TRANSMISSION IN
13127-0037
|
$240.86 | ||
|
Available to order. Add to View Price |
|||
|
#13128
SHAFT-TRANSMISSION OU
13128-0021
|
$178.04 | ||
|
Available to order. Add to View Price |
|||
|
#13144
SPROCKET-OUTPUT,13T
13144-0017
Superseded by 13144-0063
|
$35.35 | ||
|
Available to order. Add to View Price |
|||
|
#13262
GEAR,INPUT 2ND,17T
13262-0255
|
$76.23 | ||
|
Available to order. Add to View Price |
|||
|
#13262A
GEAR,INPUT 3RD,16T
13262-0256
|
$135.03 | ||
|
Available to order. Add to View Price |
|||
|
#13262B
GEAR,INPUT 4TH,19T
13262-0257
|
$135.03 | ||
|
Available to order. Add to View Price |
|||
|
#13262C
GEAR,OUTPUT LOW,27T
13262-0258
|
$157.91 | ||
|
Available to order. Add to View Price |
|||
|
#13262D
GEAR,OUTPUT 2ND,24T
13262-0259
|
$157.91 | ||
|
Available to order. Add to View Price |
|||
|
#13262E
GEAR,OUTPUT 3RD,19T
13262-0260
|
$135.03 | ||
|
Available to order. Add to View Price |
|||
|
#13262F
GEAR,OUTPUT 4TH,19T
13262-0261
|
$135.03 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1963
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,25MM
92033-1172
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,21.5X1.5
92055-1293
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,25X30X13.2
92152-0150
|
$24.91 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1065
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
