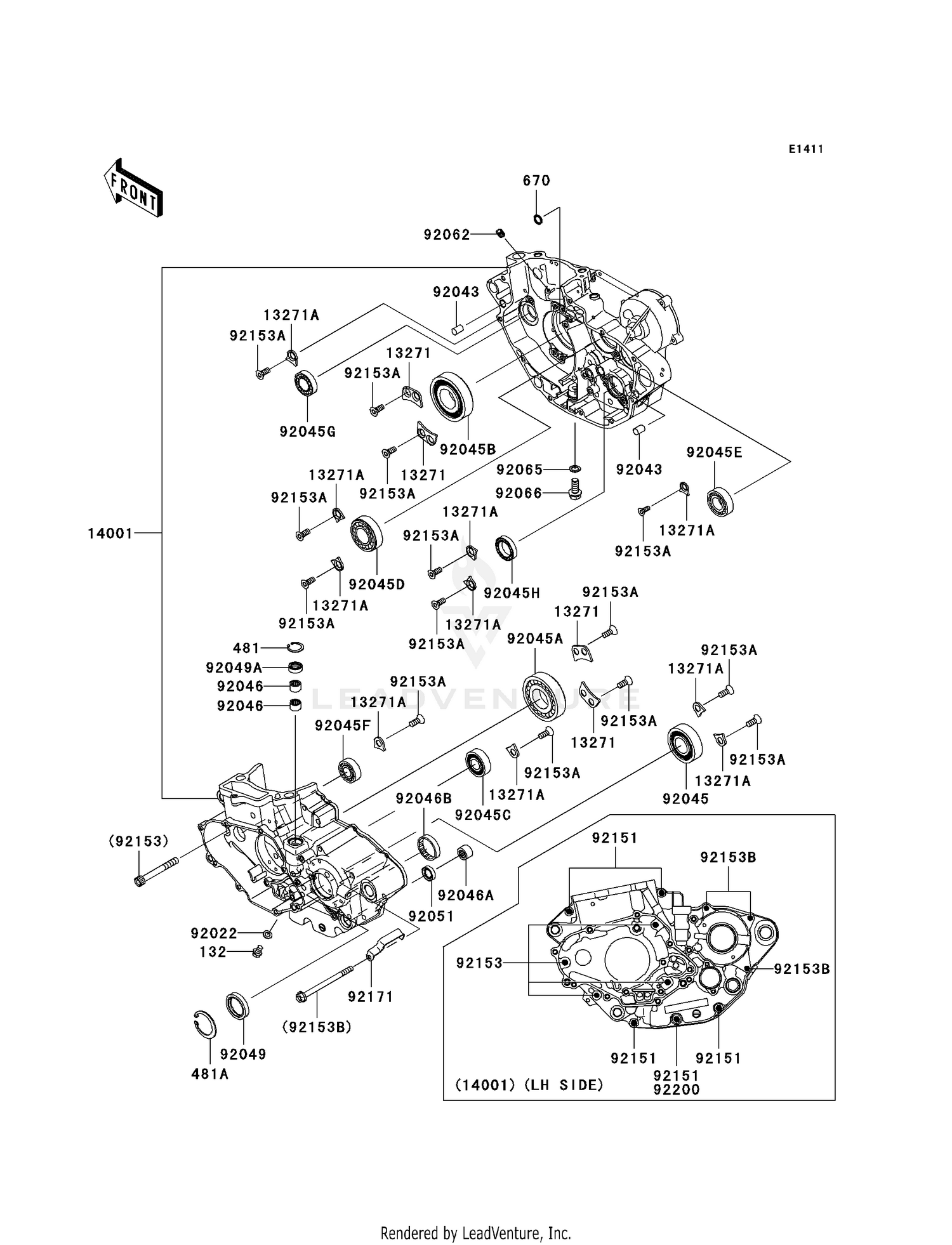

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X8
132L0608
Superseded by 132BB0608
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP
481J2100
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#481A
RING-SNAP,40MM
481J4000
Superseded by 92033-1040
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,7MM
670D1507
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-0334
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#13271A
PLATE
13271-0345
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
14001-0056
|
$746.64 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,10X14
92043-1506
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,63/22X7L
92045-0023
|
$40.47 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,B32-32U-
92045-0024
|
$45.46 | ||
|
Available to order. Add to View Price |
|||
|
#92045B
BEARING-BALL,B32-32-A
92045-0031
|
$53.71 | ||
|
Available to order. Add to View Price |
|||
|
#92045C
BEARING-BALL,17X40X12
92045-0034
|
$22.34 | ||
|
Available to order. Add to View Price |
|||
|
#92045D
BEARING-BALL,TM-SX05A
92045-0035
Superseded by 92045-0081
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#92045E
BEARING-BALL,20X42X12
92045-0036
|
$20.33 | ||
|
Available to order. Add to View Price |
|||
|
#92045F
BEARING-BALL,6202SH2C
92045-0037
Superseded by 92045-0079
|
$10.07 | ||
|
Available to order. Add to View Price |
|||
|
#92045G
BEARING-BALL,6904C3UR5
92045-0038
|
$23.07 | ||
|
Available to order. Add to View Price |
|||
|
#92045H
BEARING-BALL,6805JRZ
92045-1432
|
$31.18 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,HK1312
92046-1148
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#92046B
BEARING-NEEDLE,7E-HKS33X38X8
92046-1221
|
$31.24 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TC 30 40 7
92049-0030
|
$19.23 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,CLUTCH RELEASE
92049-1475
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92051
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE,6X8,GREEN
92062-1078
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DRAIN,10X22
92066-0038
|
$7.06 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6X50
92151-1545
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,7X60
92153-0846
Superseded by 92154-0527
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,6X15
92153-0848
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,FLANGED,6X85
92153-0934
Superseded by 92154-0528
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0579
|
$7.41 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.3X13.5X1.0
92200-0171
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
