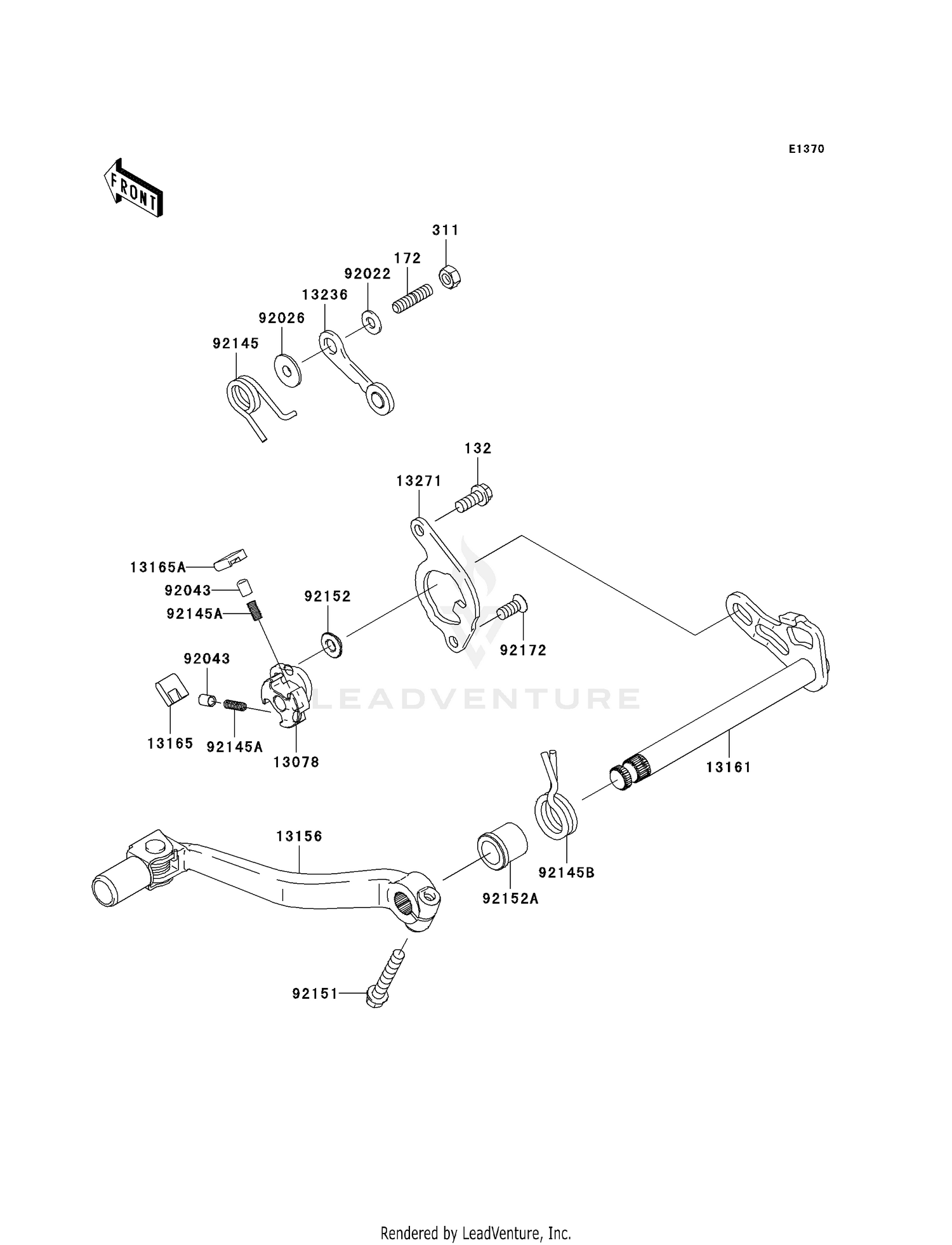

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X14
132G0614
Superseded by 132BA0614
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#172
BOLT-STUD,6X12
172G0612
Superseded by 172BA0612
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311G0600
Superseded by 311BA0600
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#13078
RATCHET
13078-0006
|
$69.74 | ||
|
Available to order. Add to View Price |
|||
|
#13156
LEVER-CHANGE,PEDAL
13156-0067
|
$97.07 | ||
|
Available to order. Add to View Price |
|||
|
#13161
LEVER-COMP-CHANGE SHA
13161-0031
|
$63.85 | ||
|
Available to order. Add to View Price |
|||
|
#13165
PAWL
13165-0009
|
$15.97 | ||
|
Available to order. Add to View Price |
|||
|
#13165A
PAWL
13165-0010
|
$15.97 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,POSITION
13236-0102
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE,PAWL GUIDE
13271-0248
|
$14.70 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6X12.8X1.2
92022-1827
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1217
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,PLUNGER
92043-1676
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0374
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING
92145-1490
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING,RETURN
92145-1493
|
$13.23 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED-SMALL,6X25
92151-1930
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1414
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,RETURN SPRING
92152-1419
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X14
92172-0110
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
