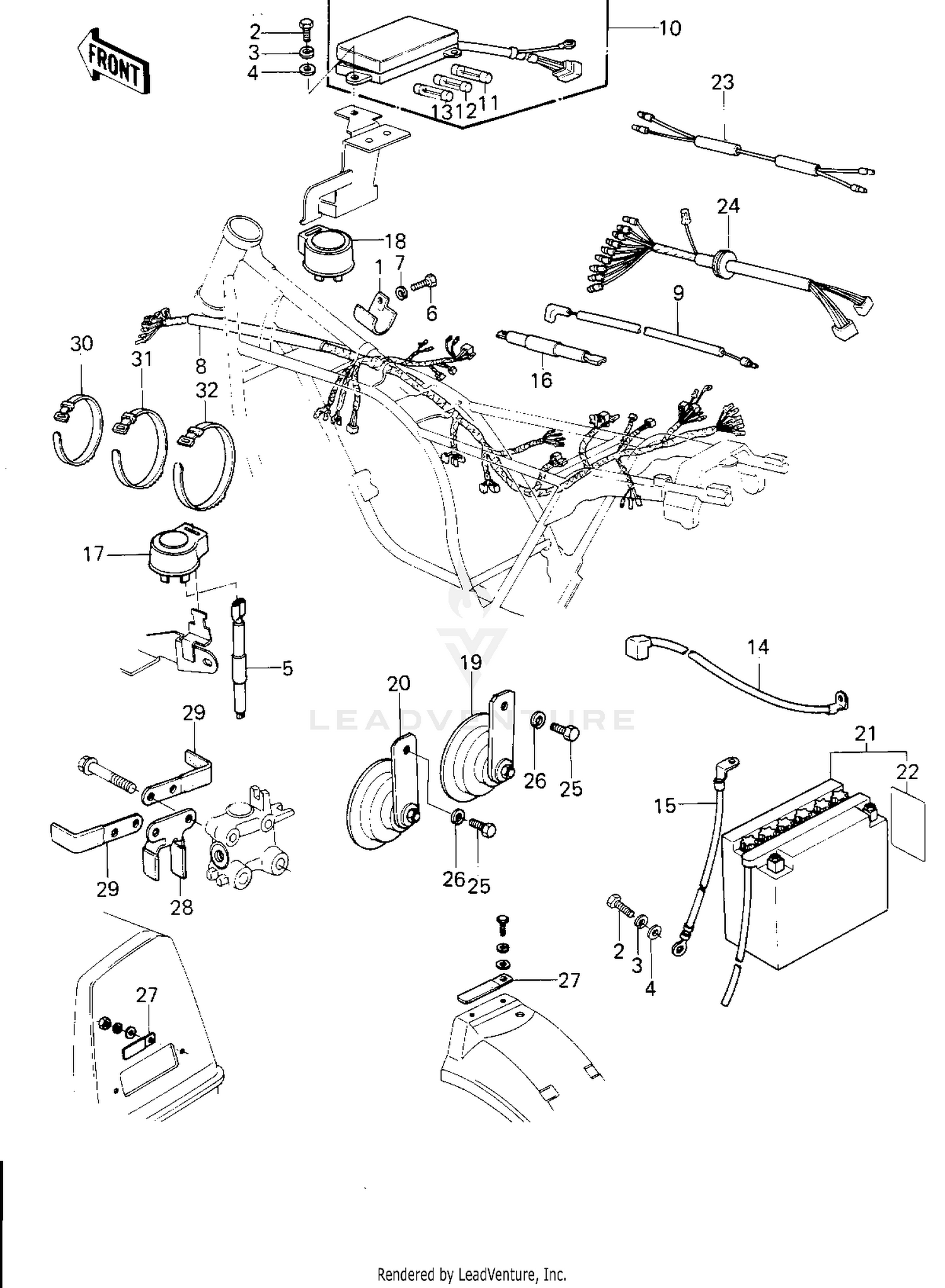

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE,MAIN HARNESS
13070-1022
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT-UPSET
112G0612
Superseded by 112BA0612
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
REGULATOR
21066-026
|
$24.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT-UPSET,6X10
112G0610
Superseded by 112BA0610
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Unavailable |
|||
|
#8
WIRING HARNESS,MAIN
26001-1172
|
$210.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRING HARNESS,MAIN
26001-1172
|
$210.59 | ||
|
Unavailable |
|||
|
#9
WIRING HARNESS,SUB
26001-1064
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE ASSY
26004-1009
|
$67.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE,2A,L=25M/M
26006-1004
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE,GLASS TUBE,6.4X25,10
26006-003
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE,GLASS TUBE,6.4X25,30
26006-1005
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
WIRE,STARTER LEAD
26011-1037
|
$26.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE,BATTERY GROUND
26011-1038
|
$42.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
REGULATOR
21066-026
|
$24.27 | ||
|
Unavailable |
|||
|
#17
RELAY-ASSY
27002-011
Superseded by 27002-0003
|
$97.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY,TURN SIGNAL
27002-016
|
$53.41 | ||
|
Available to order. Add to View Price |
|||
|
#19
HORN,R.H
27003-1016
|
$76.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
HORN,L.H
27003-1025
|
$52.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
YUA BAT Y50-N18L-A
26012-1012
|
$96.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
LABEL-WARNING,BATTERY
56040-1036
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
WIRING HARNESS,SUB
26001-1094
|
$28.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRING HARNESS,SUB
26001-1093
|
$35.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT-SMALL-UPSET,8X14
115B0814
Superseded by 115AA0814
|
$0.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP,MAIN HARNESS
92037-1136
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP,MAIN HARNESS
92037-1137
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND,L=123
92072-030
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAND,L=186
92072-056
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
