1980 Kawasaki KZ1300B Ignition Switch/locks/reflectors OEM Parts

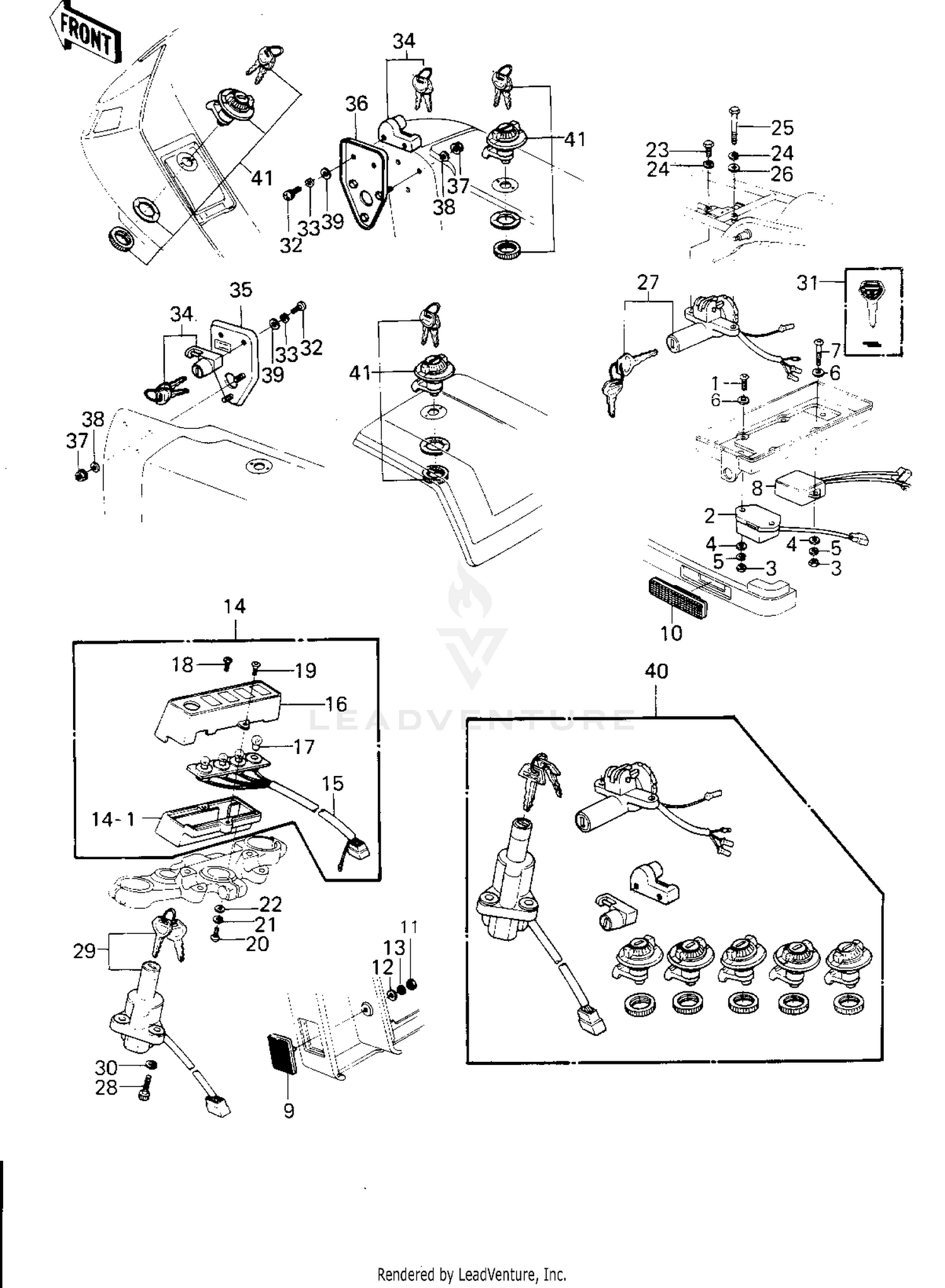

Ignition Switch/locks/reflectors Diagram

Item	MSRP	Qty
#1 SCREW-PAN-CROS,6X20 220B0620 Superseded by 220AA0620	$5.63
Available to order. Add to View Price
#2 SWITCH,RESERVE LIGHTI 27010-1024	$101.08
Available to order. Add to View Price
#3 NUT-HEX,6MM 311B0600 Superseded by 311AA0600	$0.93
Available to order. Add to View Price
#4 WASHER-PLAIN-SMALL 410B0600 Superseded by 410AA0600	$1.28
Available to order. Add to View Price
#5 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Available to order. Add to View Price
#6 WASHER,7X16X1.2 92022-024	$3.53
Available to order. Add to View Price
#7 SCREW-PAN-CROS,6X35 220B0635 Superseded by 220AA0635	$1.59
Available to order. Add to View Price
#8 SWITCH,TURN SIGNAL OP 27010-1016	$221.16
Available to order. Add to View Price
#9 REFLECTOR-REFLEX 28012-1003	$21.30
Available to order. Add to View Price
#10 REFLECTOR,REFLEX 28012-1006	$17.18
Available to order. Add to View Price
#11 NUT-HEX,5MM 311B0500 Superseded by 311AA0500	$0.46
Available to order. Add to View Price
#12 WASHER-PLAIN-SMALL 411B0500 Superseded by 410AA0500	$0.46
Available to order. Add to View Price
#13 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Unavailable
#14 LAMP ASSY,PILOT 23016-1014	$81.42
Available to order. Add to View Price
#14-1 COVER,PILOT LAMP,LOWE 14025-1117	$22.96
Available to order. Add to View Price
#15 SOCKET ASSY,PILOT LAM 23008-1041	$41.16
Available to order. Add to View Price
#16 COVER,PILOT LAMP,UPPE 25023-1014	$58.37
Available to order. Add to View Price
#17 BULB 12V 3W 92069-018	$4.72
Available to order. Add to View Price
#18 SCREW,TAPPING,3.5X10 92009-1073	$2.68
Available to order. Add to View Price
#19 SCREW,CNTSNK HED,4X10 92009-1074	$4.27
Available to order. Add to View Price
#20 SCREW-PAN-CROS,5X16 220B0516A Superseded by 220AA0516	$2.00
Available to order. Add to View Price
#21 WASHER-SPRING,5MM 461F0500 Superseded by 461DA0500	$0.69
Available to order. Add to View Price
#22 WASHER-PLAIN-SMALL 411B0500 Superseded by 410AA0500	$0.46
Unavailable
#23 BOLT-UPSET 112G0612 Superseded by 112BA0612	$1.45
Available to order. Add to View Price
#24 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Unavailable
#25 BOLT-UPSET 112G0645	$0.72
Available to order. Add to View Price
#26 WASHER-PLAIN,6MM 411B0600 Superseded by 411AA0600	$2.84
Available to order. Add to View Price
#27 LOCK ASSY,SEAT 27016-5027	$125.93
Available to order. Add to View Price
#28 BOLT,SOCKET,8X22 120P0822	$7.37
Available to order. Add to View Price
#29 IGNITION&STEERING ASY 27016-5034	$138.82
Available to order. Add to View Price
#30 WASHER-SPRING,8MM 461F0800 Superseded by 461DA0800	$0.40
Available to order. Add to View Price
#31 KEY-LOCK,BLANK 27008-1103	$19.59
Available to order. Add to View Price
#32 SCREW-PAN-CROS,5X12 220B0512 Superseded by 220AA0512	$0.46
Available to order. Add to View Price
#33 WASHER-SPRING,5MM 461F0500 Superseded by 461DA0500	$0.69
Unavailable
#34 LOCK ASSY,HELMET 27016-5036	$54.02
Available to order. Add to View Price
#35 BRACKET,HELMET LOCK 32074-1013	$10.43
Available to order. Add to View Price
#36 BRACKET,HELMET LOCK 32074-1014	$10.43
Available to order. Add to View Price
#37 NUT,LOCK 6MM 92017-014	$7.25
Available to order. Add to View Price
#38 WASHER,7X16X1.2 92022-024	$3.53
Unavailable
#39 WASHER,PLAIN 92022-283	$2.27
Available to order. Add to View Price
#40 SWITCH LOCK ASSY 27004-5078	$132.74
Available to order. Add to View Price
#41 LOCK ASSY 27016-5035	$49.65
Available to order. Add to View Price
