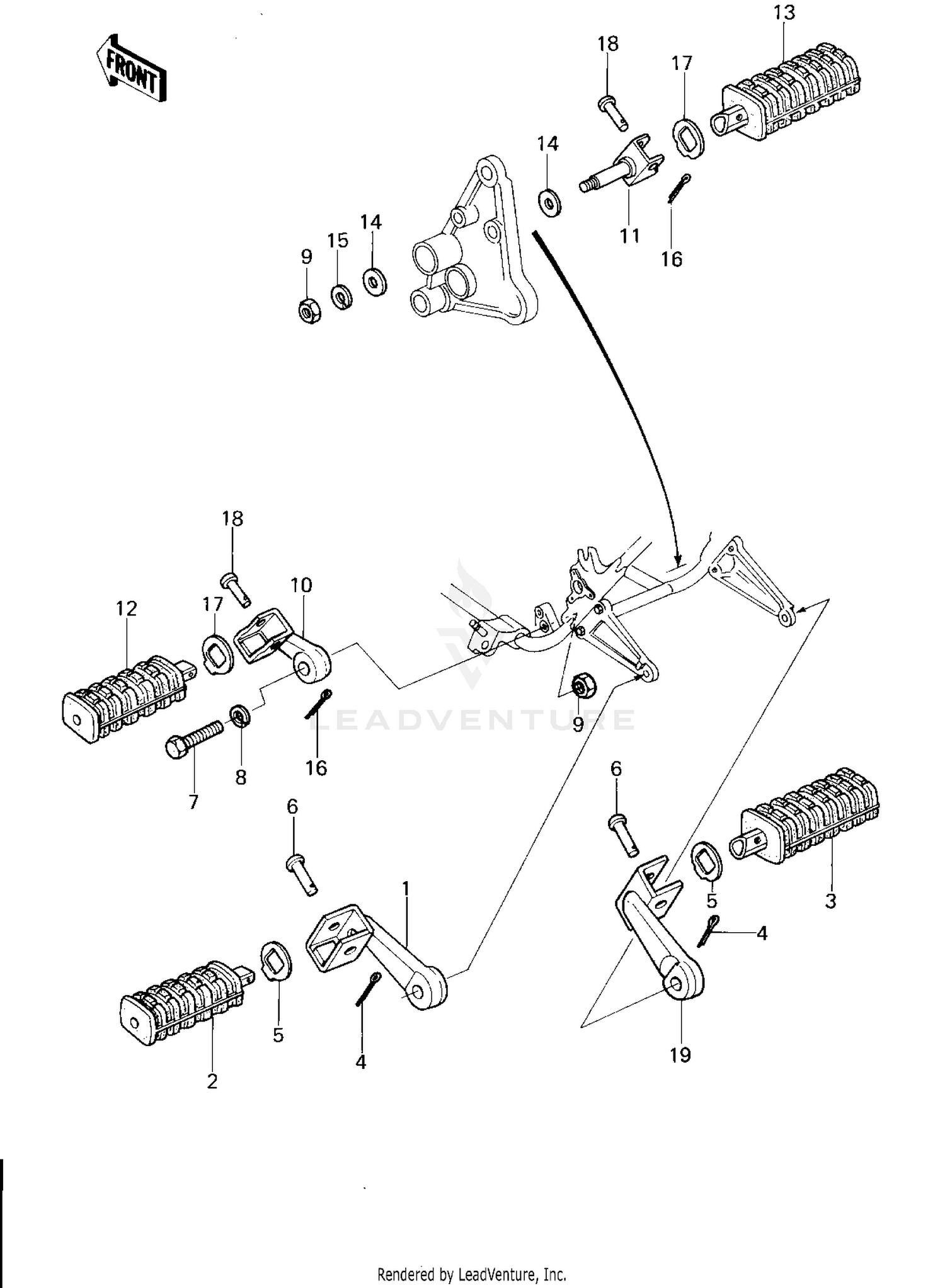

Footrests Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER,RR.FOOTREST,LH
34003-1060
|
$33.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
STEP,FRONT FOOTREST
34028-1015
|
$76.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
STEP,FRONT FOOTREST
34028-1016
|
$76.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN COTTER 2.5X16
550D2516
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,LOCK
92022-1096
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN,8X31
92043-080
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-HEX HEAD,12X36
113B1236A
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HEX-FINE
315B1200
Superseded by 315AA1200
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER,L.H,FOOTREST
34003-1029
|
$79.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER,R.H,FOOTREST
34003-1030
|
$79.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
STEP,FRONT FOOTREST
34028-1015
|
$76.24 | ||
|
Unavailable |
|||
|
#13
STEP,FRONT FOOTREST
34028-1016
|
$76.24 | ||
|
Unavailable |
|||
|
#14
WASHER-PLAIN-SMALL,12MM
410B1200
Superseded by 410AA1200
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$1.00 | ||
|
Unavailable |
|||
|
#16
PIN COTTER 2.5X16
550D2516
|
$2.71 | ||
|
Unavailable |
|||
|
#17
WASHER,LOCK
92022-1096
|
$6.10 | ||
|
Unavailable |
|||
|
#18
PIN,8X31
92043-080
|
$5.34 | ||
|
Unavailable |
|||
|
#19
HOLDER,RR FOOTREST,RH
34003-1061
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
