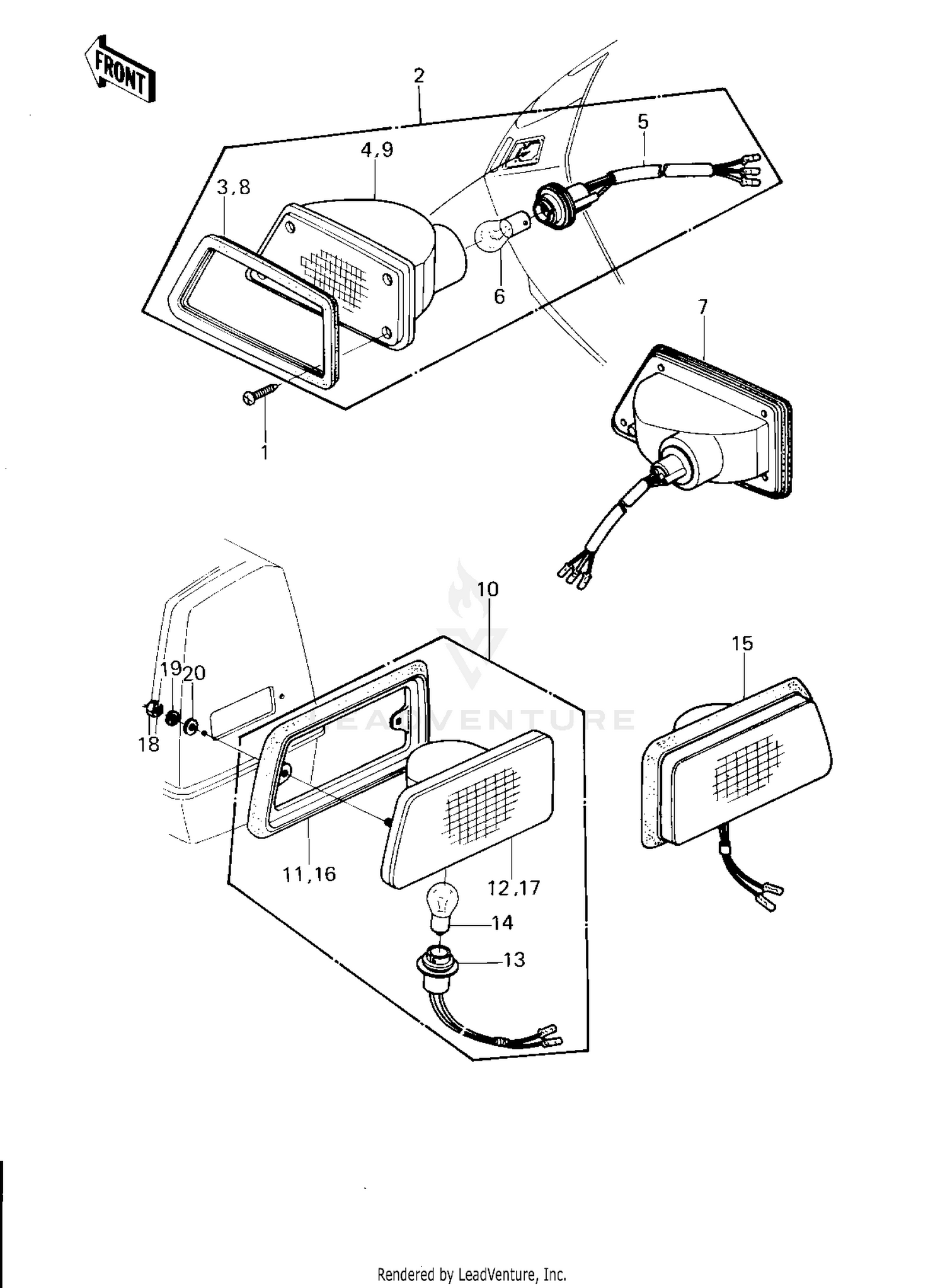

Turn Signals Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW-PAN HEAD,4X20
220E0420A
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
LAMP ASSY,TURN SIGNAL
23037-1066
|
$80.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,TURN SIGNAL LP
11009-1139
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS,TURN SIGNAL LAMP
23007-1021
|
$38.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET ASSY,TURN SIGN
23008-1045
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB,12V 32/3CP(23/8W)
92069-060
|
$9.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
LAMP ASSY,TURN SIGNAL
23037-1067
|
$65.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,CLUTCH COVER
11009-1996
|
$20.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
LENS,TURN SIGNAL LAMP
23007-1022
|
$38.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
LAMP ASSY,TURN SIGNAL
23037-1068
|
$70.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET,TURN SIGNAL LP
11009-1141
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
LENS,TURN SIGNAL LAMP
23007-1023
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
SOCKET ASSY,TURN SIGN
23008-1046
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB,12V 32CP(23W)
92069-055
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
LAMP ASSY,TURN SIGNAL
23037-1069
|
$65.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET,TURN SIGNAL LP
11009-1142
|
$11.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
LENS,TURN SIGNAL LAMP
23007-1024
|
$38.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER,7X16X1.2
92022-024
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
