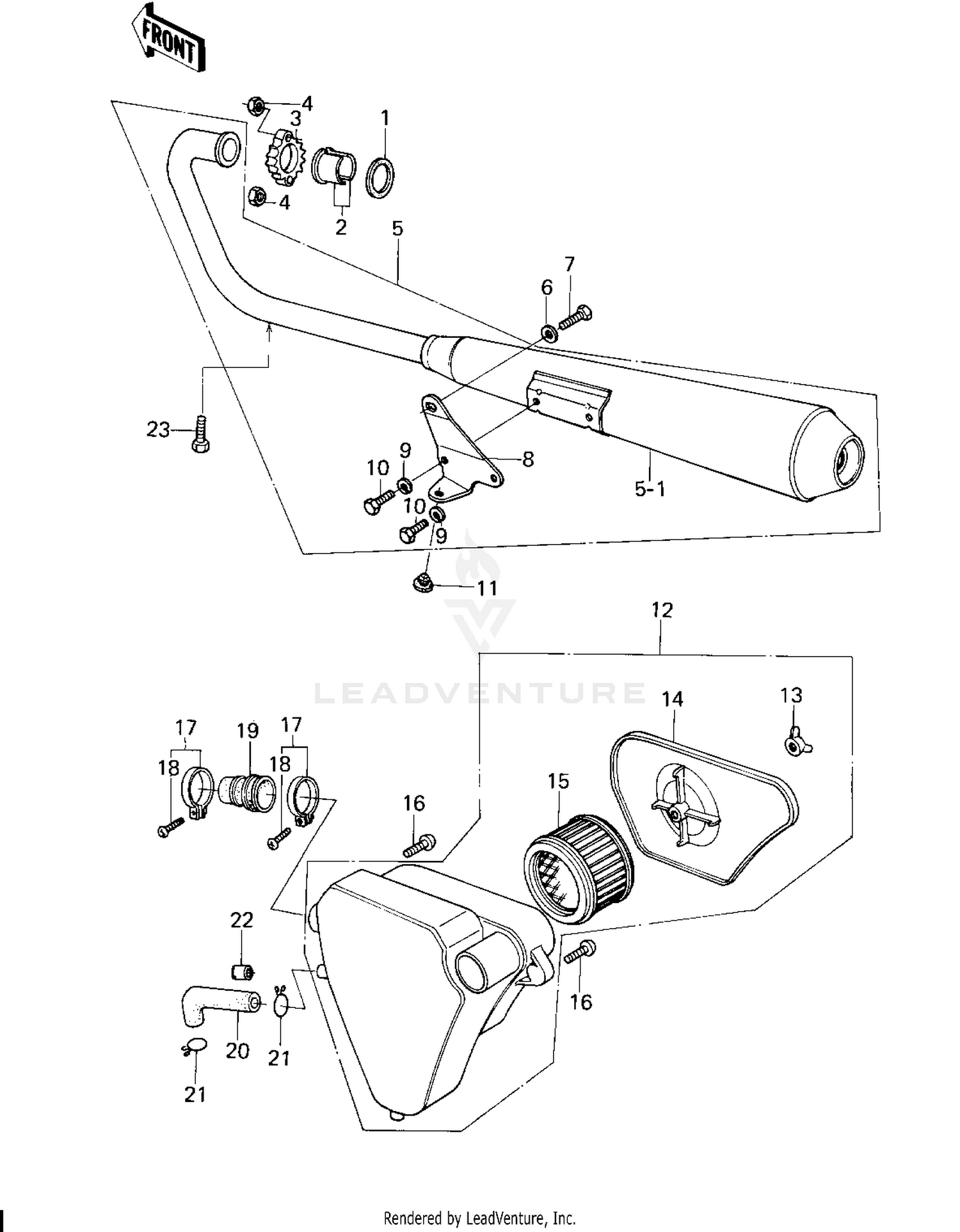

Air Cleaner/muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET,EXHAUST PIPE HOLDER
11009-1866
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSERT,EXHAUST PIPE
92027-278
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER,EXHAUST PIPE
18069-1006
|
$26.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,LOCK 6MM
92017-014
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER ASSY
18001-1197
|
$513.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER ASSY
18001-1197
|
$513.95 | ||
|
Unavailable |
|||
|
#5-1
MUFFLER ASSY
18001-5006
|
$350.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,HEX HEAD,10X14
113G1014
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,MUFFLER
18024-037
|
$21.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-SMALL-UPSET,8X20
115G0820
Superseded by 115BA0820
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
92075-015
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
AIR CLEANER ASSY
11010-1024
|
$89.86 | ||
|
Available to order. Add to View Price |
|||
|
#12
AIR CLEANER ASSY
11010-1024
|
$89.86 | ||
|
Unavailable |
|||
|
#13
NUT,AIR CLEANER CAP
92016-062
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP,AIR FILTER
11012-1281
|
$28.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
ELEMENT,AIR CLNR
11013-059
|
$22.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-PAN-CROS,6X10
220B0610
Superseded by 220AA0610
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP,CARBURETOR HLDR
92037-178
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW-PAN-CROS,5X25
220B0525
Superseded by 220AA0525
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE,INLET
11015-065
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE,BREATHER
92059-138
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP,TUBE
92037-213
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#22
BREATHER VALVE
92062-1002
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (6X10)
110R0610
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
