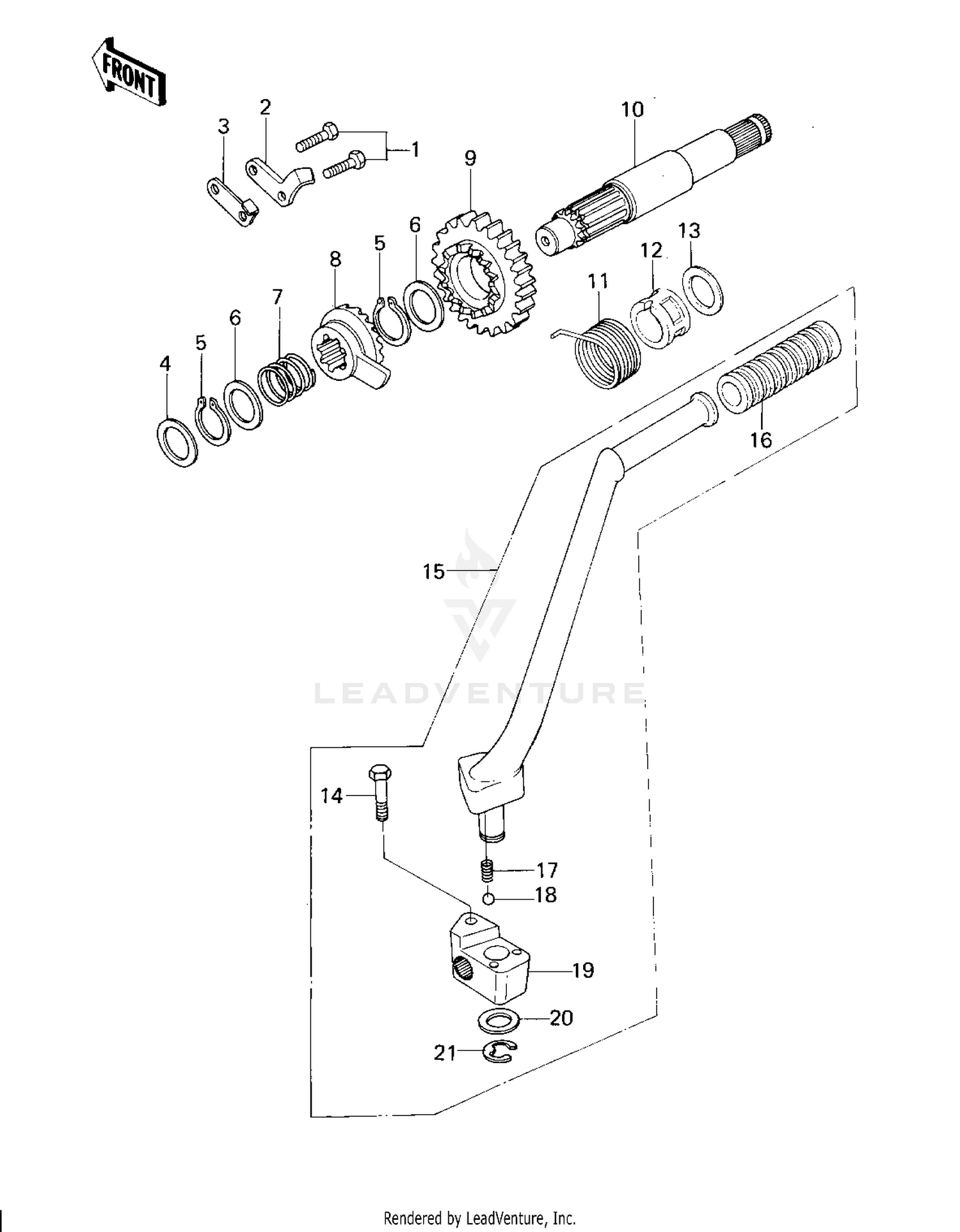

Kickstarter Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,KICK RATCHET
13206-1004
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER,KICKSTARTER
13072-017
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER,PLAIN
92022-269
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP-TYPE-C,16MM
480J1600
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,16.8X22X0.5
92022-315
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING,RATCHET
92081-122
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
RATCHET,KL250-D2
13078-1052
|
$64.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR-COMP,KICKSTARTER
13216-1099
|
$53.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT,KICKSTARTER
13066-044
|
$120.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING-KICKSTARTER
92082-003
|
$27.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUID,KICKSTARTER SPRG
13070-011
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER THRUST
92022-118
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT HEX HEAD 8X32
114G0832
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
PEDAL ASSY,KICKSTARTR
13064-1020
|
$151.86 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER,KICK PEDAL
13063-004
Superseded by 92161-2388
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
92081-154
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOSS,KICK PEDAL
13061-031
|
$36.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER,PLAIN
92022-1019
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIR CLIP
482K0100
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
