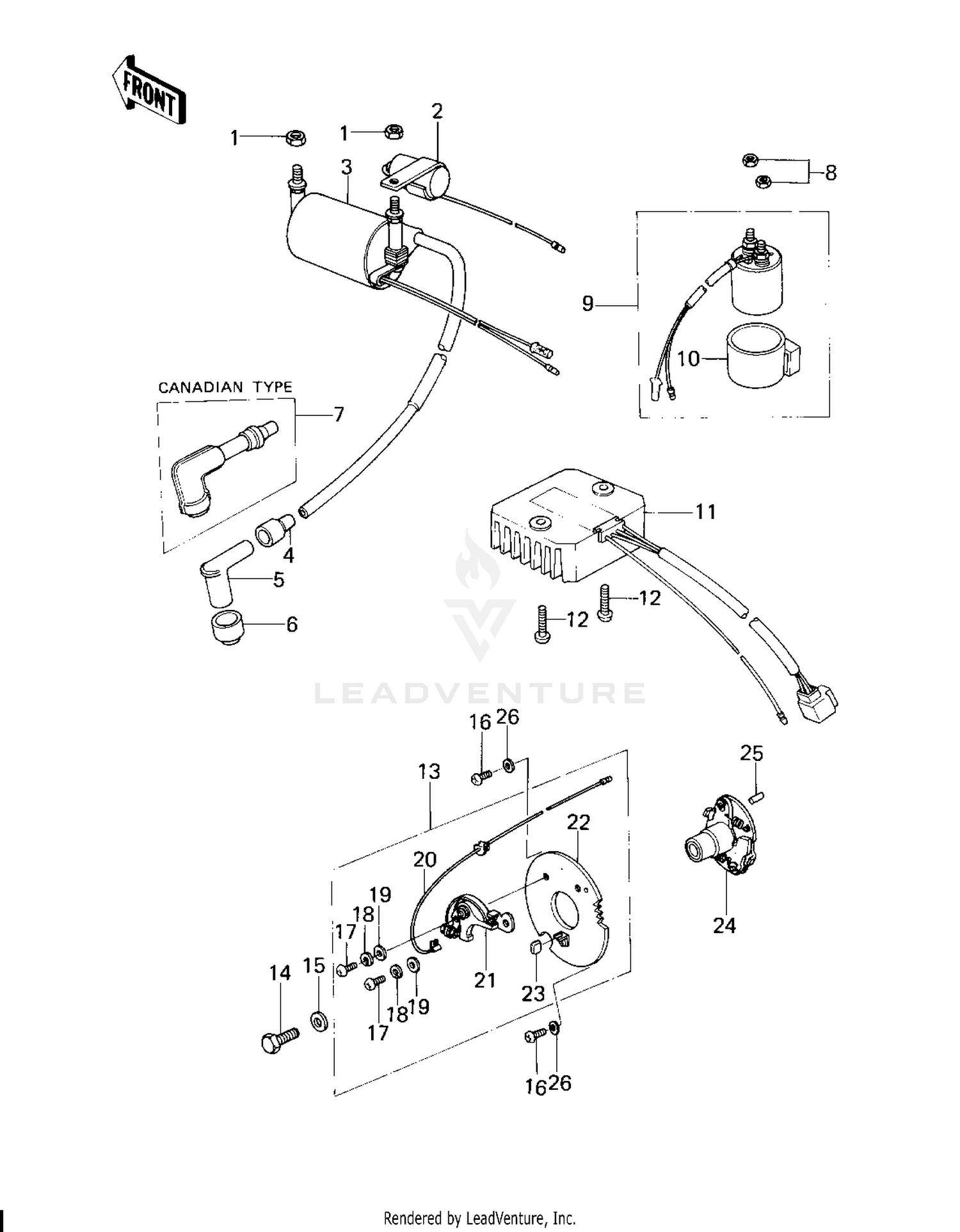

Ignition/regulator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-HEX,6MM
311G0600
Superseded by 311BA0600
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONDENSER
21013-036
|
$28.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL,IGNITION
21121-093
|
$250.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET,HIGH TENSION
21132-005
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP-SPARK PLUG,RTFM20
21130-1007
|
$33.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET-PLUG CAP,A
21131-004
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP,SPARK PLUG
21160-005
|
$49.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX,6MM
311G0600
Superseded by 311BA0600
|
$2.19 | ||
|
Unavailable |
|||
|
#9
SWITCH ASSY,MAGNETIC
21164-005
|
$152.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER,MAGNETIC SWITCH
21064-002
Superseded by 92161-1722
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#11
REGULATOR
21066-029
|
$474.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
BREAKER ASSY, CONTACT
21135-013
|
$51.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,6X14
92003-221
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,PLAIN
92022-323
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-PAN-CROS,6X10
220B0610
Superseded by 220AA0610
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-PAN CROS,4X6
220B0406
Superseded by 220AA0406
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER-PLAIN-SMALL,4MM
410B0400
Superseded by 410AA0400
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRING HARNESS,CONTAC
26001-1020
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BREAKER,CONTACT
21008-1002
|
$51.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
BASE,CONTACT BREAKER
21021-1001
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
FELT OIL
21019-005
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#24
ADVANCER,AUTMATIC
21148-013
|
$210.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN-DOWEL,3X8
551A0308
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
