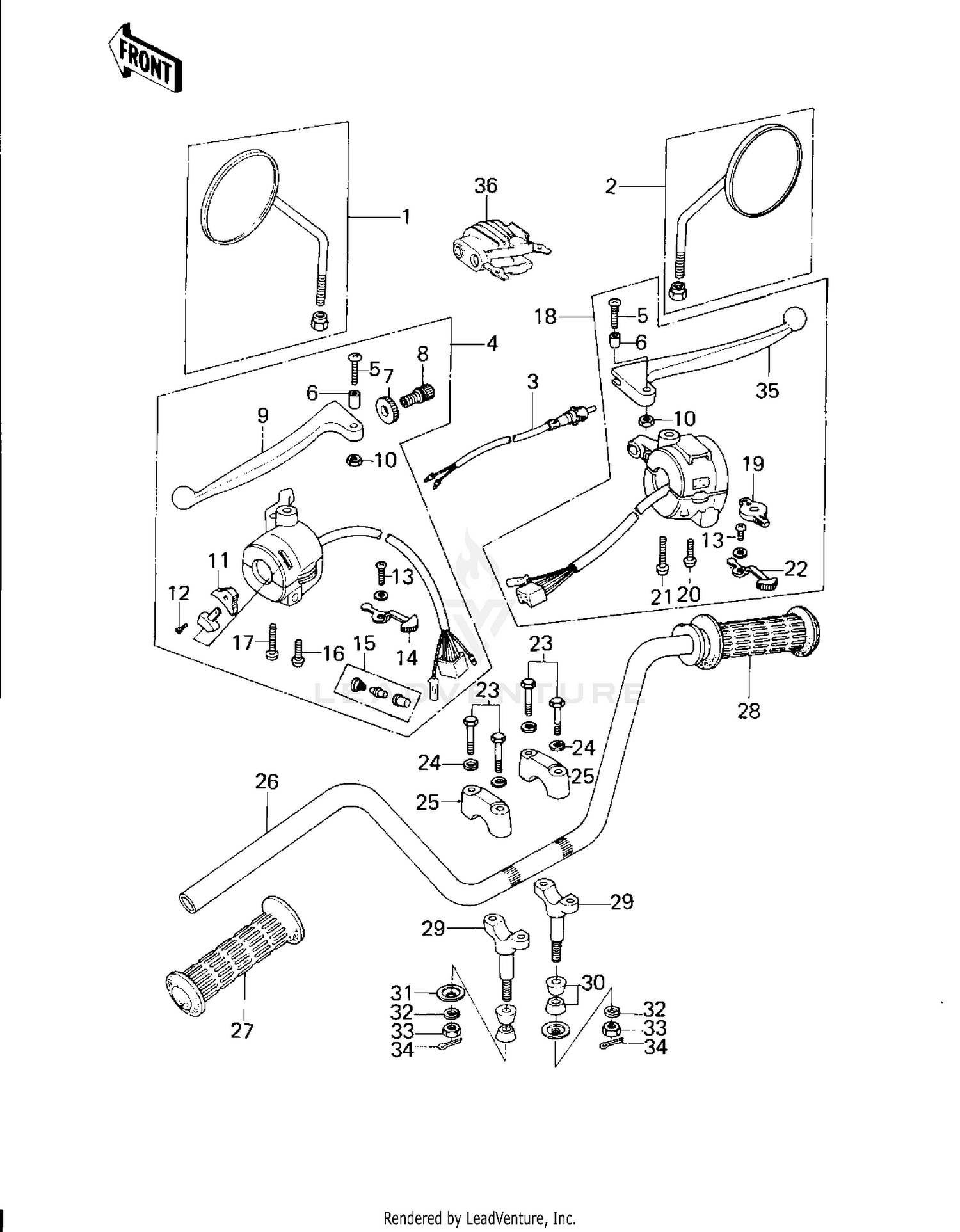

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR VIEW MIRROR,L.H
56003-019
|
$66.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR VIEW MIRROR,R.H
56002-029
|
$72.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH-FR. BRAKE LAMP
27021-004
|
$34.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOUSING ASSY,L.H CONT
46091-1004
|
$117.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-PAN-CROS,5X22
220B0522
Superseded by 220AA0522
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR,LEVER
92027-1042
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,CABLE ADJUST LOCK,8MM
46056-005
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW,CABLE ADJUST,8MM
46055-003
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER,CLUTCH
46092-024
|
$18.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT-LOCK,5MM
92019-014
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
KNOB,LIGHTING SW L.H
46044-013
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW CNTSNK HD 3X8
221B0308A
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,3X5
220B0305A
Superseded by 92009-1123
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
KNOB,SIGNAL LIGHT SW
92077-1003
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH ASSY,HORN BUTN
27010-1009
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-PAN-CROS,5X25
220B0525
Superseded by 220AA0525
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW,PAN HEAD,5X38
92009-1018
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOUSING ASSY,R.H CONT
46091-1006
|
$90.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOUSING ASSY,R.H.CONT
46091-1007
|
$71.81 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOUSING ASSY,R.H.CONT
46091-1007
|
$71.81 | ||
|
Unavailable |
|||
|
#19
KNOB,ENGINE STOP
92077-1002
|
$10.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-PAN-CROS
220B0530
Superseded by 220AA0530
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW,PAN HEAD,5X48
92009-1017
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
KNOB,LIGHING SWITCH
46043-006
|
$14.52 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT 8X38
92001-1405
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER-HANDLEBAR
46012-008
|
$36.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
HANDLEBAR
46003-041
|
$120.76 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER,L.H GRIP
46075-028
|
$38.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
GRIP ASSY,THROTTLE
46019-041
|
$58.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER-HANDLEBAR LOW
46012-010
|
$29.57 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER,HANDLE HOLDER
92075-039
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP HANDLEBAR HOLDER
46016-003
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN-SNAP
554A0800
Superseded by 554DA0800
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#35
LEVER,FRONT BRAKE
46058-019
|
$25.24 | ||
|
Available to order. Add to View Price |
|||
|
#36
DUST COVER
49016-1028
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
