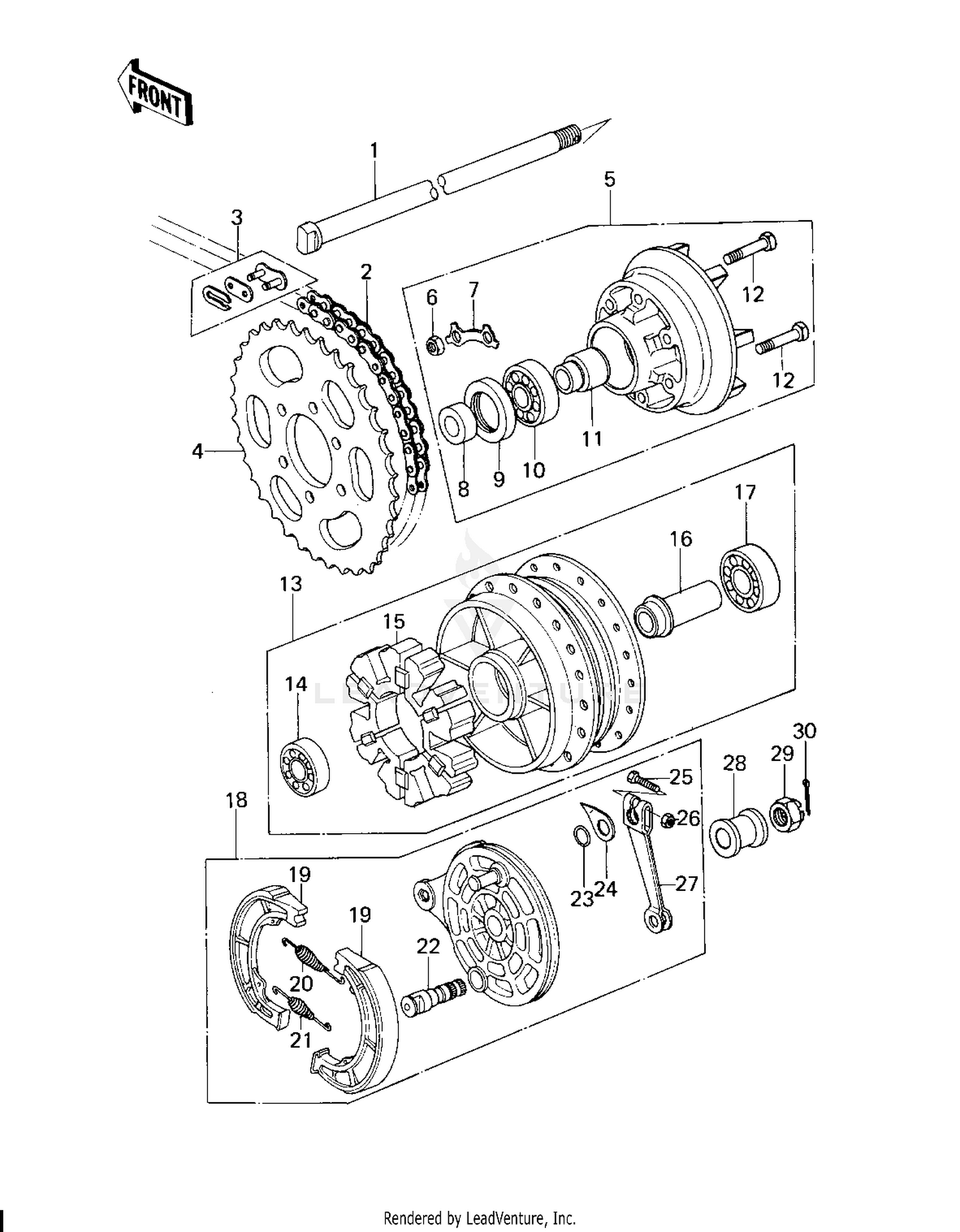

Rear Hub/brake/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE,REAR
42031-059
|
$58.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
DR CHAIN 520X98
92057-106
|
$169.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN JOINT 520
92058-1001
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR SPROCKET,40T
42041-1002
|
$52.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
COUPLING-ASSY,RR HUB
42033-1029
|
$139.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,SPROCKET LOCK
92088-019
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR,15X26X12.5
42037-029
|
$12.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL-OIL,26X42X8
92050-060
|
$17.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING BALL #6004
601B6004
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
SLEEVE,REAR HUB COUPR
42036-031
|
$29.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT REAR SPROCKET
92001-021
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRUM ASSY,REAR
42005-057
|
$422.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING-BALL,#6202C3
601B6202
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER,REAR HUB SHOCK
42014-030
Superseded by 92161-1327
|
$7.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,RR HUB,L=57
42010-037
Superseded by 92027-1508
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING BALL #6302Z
601B6302Z
|
$26.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
PANEL-ASSY-BRAKE,RR
41035-1090
Superseded by 41035-1358
|
$269.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHOE-BRAKE
42019-010
Superseded by 41048-1076
|
$36.61 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING,BRAKE SHOE
92081-1766
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING,BRAKE SHOE
92081-1550
|
$9.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAM SHAFT,REAR BRAKE
42026-026
|
$23.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
0 RING,11MM
92055-004
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
INDICATOR,FR BK SHOE
41085-013
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT,6MM
41072-007
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
LEVER,FRONT BRAKE CAM
41053-002
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
42032-076
Superseded by 92143-1153
|
$15.30 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT,CASTLE,14MM
42045-020
Superseded by 92015-1765
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN-COTTER,3.0X25
550D3025
Superseded by 550AA3025
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
