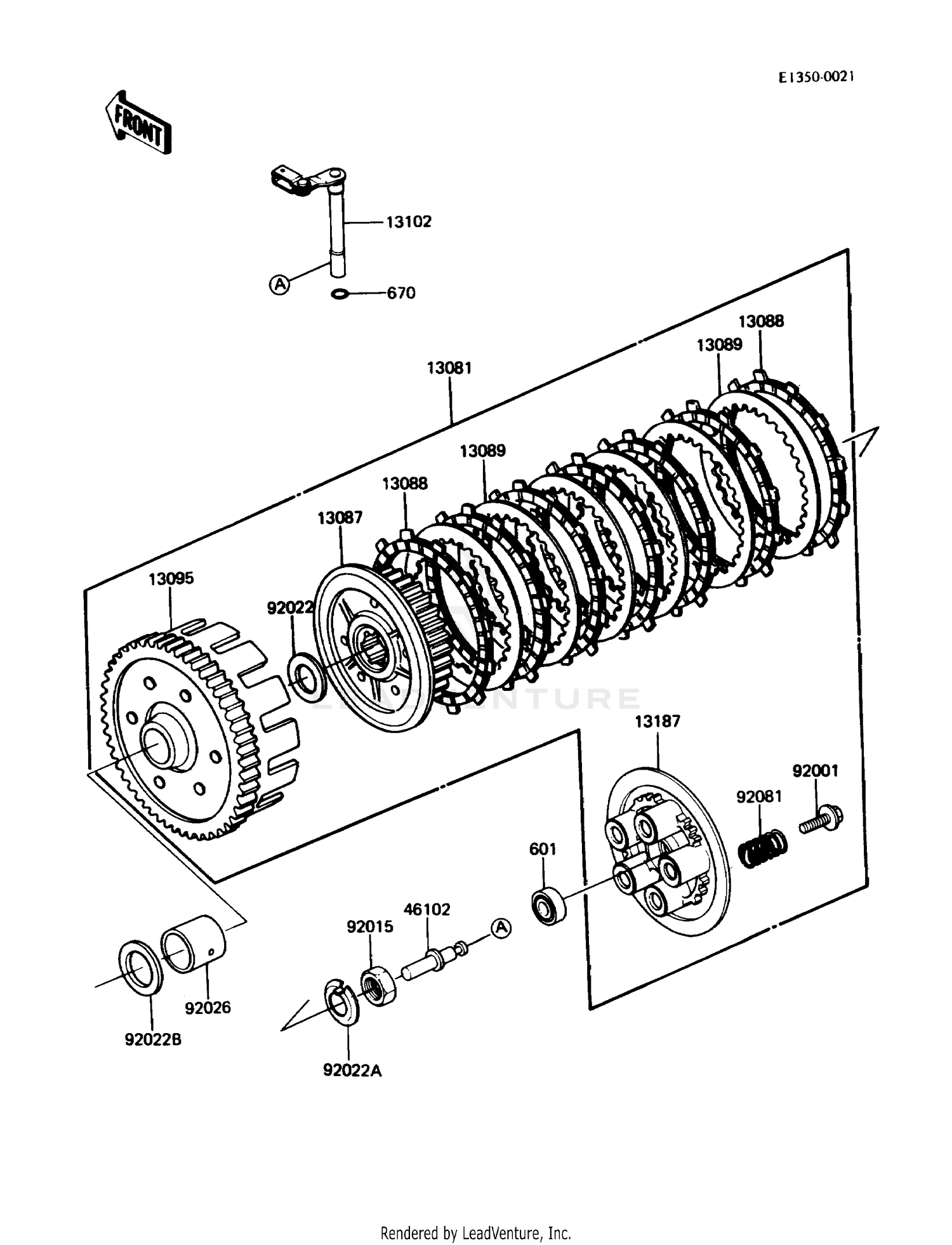

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13081
CLUTCH-ASSY
13081-1065
|
$292.34 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-1005
|
$96.24 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1009
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH,T=2.0
13089-1005
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1020
|
$403.20 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1009
|
$53.98 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1018
|
$59.82 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD
46102-1030
|
$28.76 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92016-028
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER PLAIN
92022-1075
|
$14.90 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,LOCK,20MM
92022-1142
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
SPACER
92022-145
Superseded by 92026-1536
|
$7.06 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,CLUTCH BUSHING
92026-1052
|
$14.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CLUTCH
92081-1078
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,6001C3ML01
601B6001
Superseded by 92045-1235
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,9MM
670B1509
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
