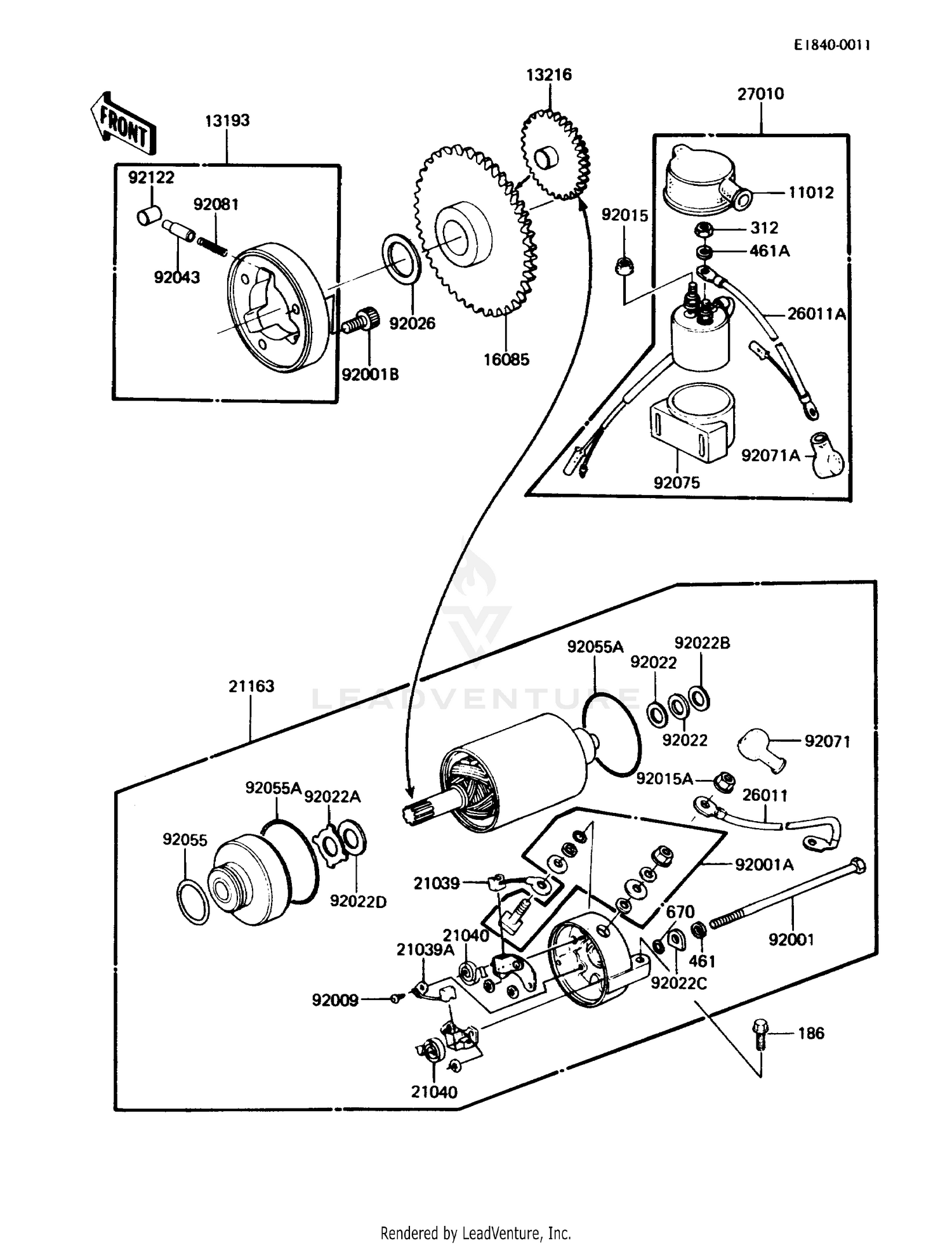

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
COVER MAGNETIC SWITCH
21141-004
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#13193
CLUTCH-ASSY-ONEWAY
13193-1002
|
$111.54 | ||
|
Available to order. Add to View Price |
|||
|
#13216
GEAR-COMP,STARTER IDL
13216-1009
|
$113.68 | ||
|
Available to order. Add to View Price |
|||
|
#16085
GEAR-COMP,ONEWAY
16085-1032
|
$122.95 | ||
|
Available to order. Add to View Price |
|||
|
#21039
BRUSH,CARBON(+)
21039-1001
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#21039A
BRUSH,CARBON(-)
21039-1002
|
$23.13 | ||
|
Available to order. Add to View Price |
|||
|
#21040
SPRING,CARBON BRUSH
21040-1001
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-1131
Superseded by 21163-1199
|
$445.30 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE,STARTER MOTOR
26011-1049
|
$34.39 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE-LEAD,MAGNETIC SW
26011-1128
|
$63.12 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,MAGNETIC
27010-1050
|
$130.67 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,PAN HEAD,5X108.5
92001-1156
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT SET,STARTER MOTO
92001-1204
|
$19.71 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,SOCKET,8X10
92001-1424
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,3.5X8
92009-1058
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1193
Superseded by 92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,STARTER MOTOR
92015-1476
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,9.1X18X0.2
21025-011
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,THRUST SUPPORT
92022-1130
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,9.1X18X0.8
92022-1132
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022C
WASHER,LOCK
92022-1133
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#92022D
WASHER,22X12.2X0.5
92022-1714
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#92026
WASHER 22X35.5X1.OT
92026-092
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-132
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1303
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1418
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,STARTER TERMINAL
21017-017
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#92071A
CAP,MAGNETIC SWITCH
21017-023
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,MAGNETIC SWITCH
21064-002
Superseded by 92161-1722
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,COIL
92081-159
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92122
ROLLER
92122-006
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#186
BOLT-UPSET-WP,6X20
186B0620
Superseded by 186AA0620
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#312
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,5MM
670B1505
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
