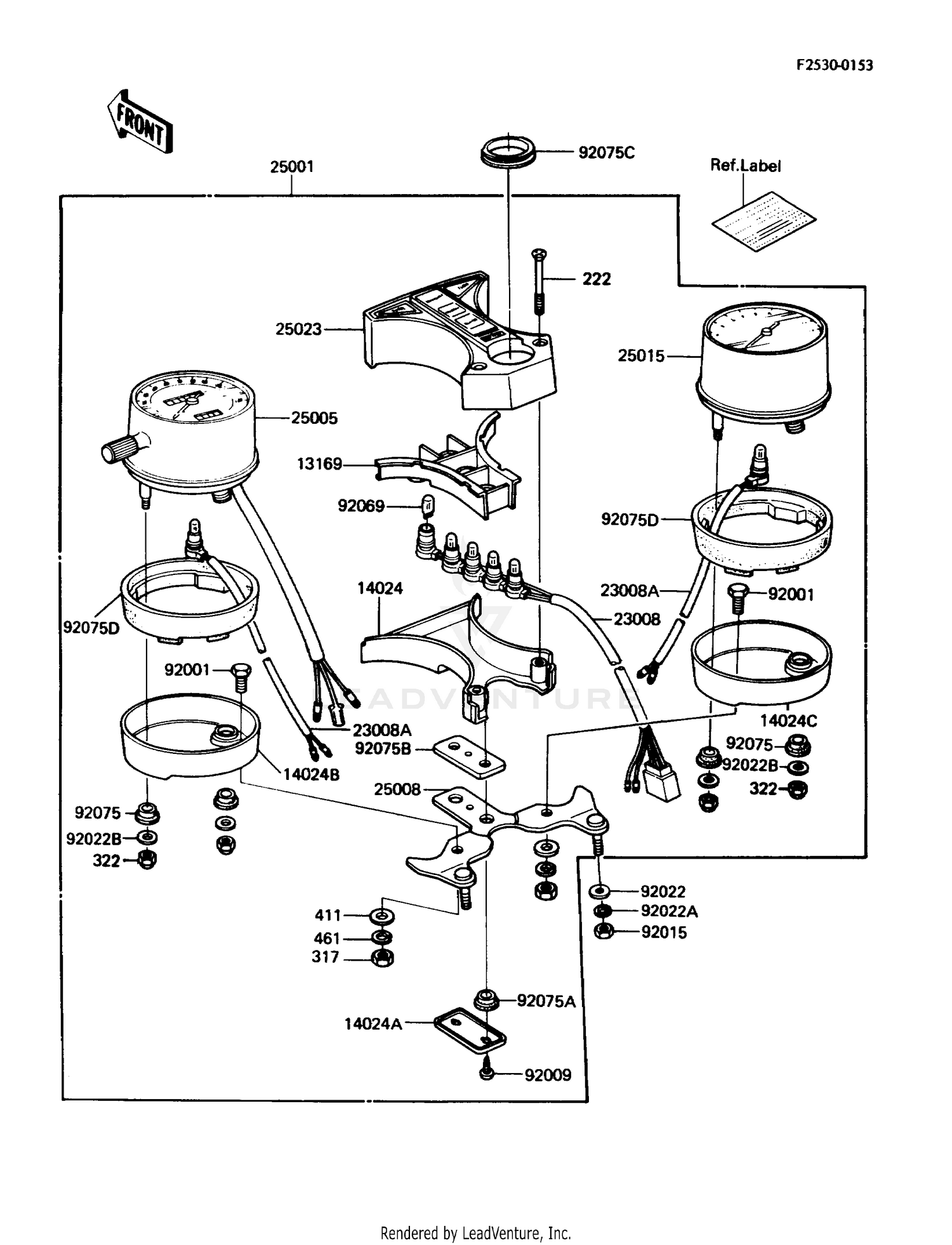

Meter(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13169
PLATE,SOCKET
13169-1133
|
$6.21 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,PILOT BOX,LOWER
14025-1093
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,PILOT BOX DAMPR
14025-1096
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#14024B
COVER,SPEEDOMETER
14025-1322
|
$36.62 | ||
|
Available to order. Add to View Price |
|||
|
#14024C
COVER,TACHOMETER
14025-1323
|
$36.62 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY
23008-1119
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
|
#23008A
SOCKET-ASSY,SPEEDOMET
23008-1158
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#25001
METER-ASSY,MPH
25001-1683
|
$719.36 | ||
|
Available to order. Add to View Price |
|||
|
#25005
SPEEDOMETER,MPH
25005-1353
|
$263.45 | ||
|
Available to order. Add to View Price |
|||
|
#25008
BRACKET,METER
25008-1021
|
$58.65 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER,SI
25015-1036
|
$322.77 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER,PILOT BOX,UPPER
25023-1008
|
$50.89 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,METER,8X16
92001-1154
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X10
92009-1040
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1391
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X13X1
92022-1544
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER-SPRING,6MM
92022-1580
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER PL 5.2X18X1.2
92022-285
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBBER-METER
25019-013
|
$5.54 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER,MET FIT
25019-023
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,PILOT BOX
92075-1136
|
$6.10 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER,PILOT BOX
92075-1204
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#92075D
DAMPER,METER
92075-1498
|
$20.20 | ||
|
Available to order. Add to View Price |
|||
|
#222
SCREW-CSK-RD-CROS,4X4
222C0445
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#322
NUT-CAP,5MM
322N0500
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,8MM
411B0800
Superseded by 411AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
