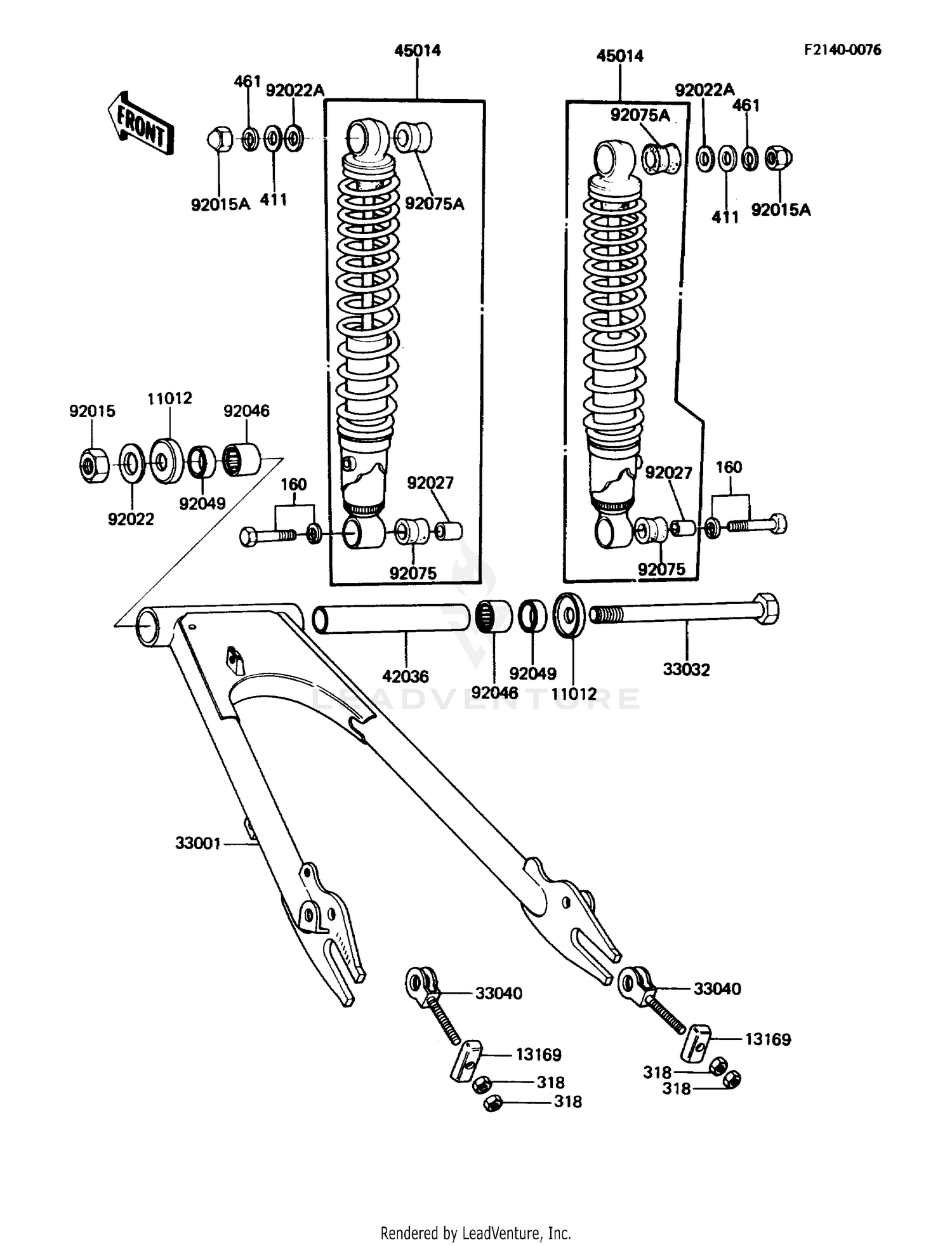

Swingarm/shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,SWING ARM
11012-1029
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE-CHAIN ADJUSTER
33041-002
|
$16.69 | ||
|
Available to order. Add to View Price |
|||
|
#33001
ARM-COMP-SWING
33001-1158
|
$191.28 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT,SWING ARM
33032-1002
|
$62.55 | ||
|
Available to order. Add to View Price |
|||
|
#33040
ADJUSTER-CHAIN
33040-1016
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE SWING ARM
42036-1021
|
$46.65 | ||
|
Available to order. Add to View Price |
|||
|
#45014
SHOCKABSORBER,RR
45014-1219
|
$378.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT-LOCK,14MM
92015-1009
Superseded by 92019-011
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CAP,10MM
92020-003
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,14.2X30X3.2
92022-1067
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER-PLN,10X22X3.2
92022-176
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,SHOCKABSORBER
45016-008
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK2216
92046-061
Superseded by 92046-1115
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,MHA22284
92049-1059
|
$10.61 | ||
|
Available to order. Add to View Price |
|||
|
#92075
BUSHING, SHCK ABS RUB
45017-012
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
BUSHING,SHCK ABS RUB
45017-015
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#160
BOLT-UPSET-WS
160N1035
Superseded by 190N1035
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#318
NUT-HEX-SMALL,8MM
318B0800
Superseded by 318AA0800
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,10MM
411B1000
Superseded by 411AA1000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
