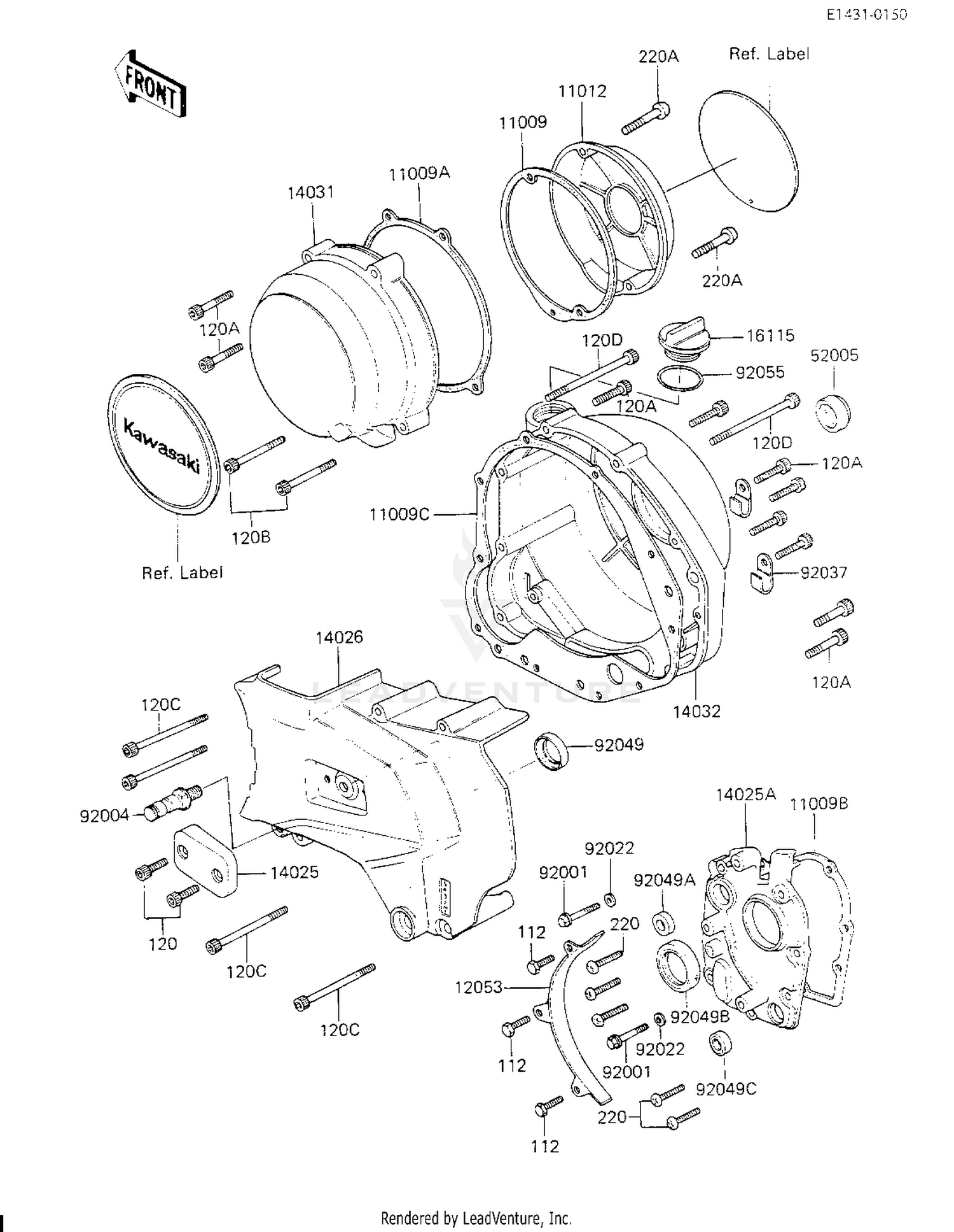

Engine Covers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,PULSING COIL C
11060-1053
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,GENERATOR COVE
11009-1987
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET,TRANSMISSION COVER
11060-1056
Superseded by 11061-1524
|
$12.64 | ||
|
Unavailable |
|||
|
#11009C
GASKET,CLUTCH COVER
14046-035
Superseded by 11009-1984
|
$29.35 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,PULSING COIL
11012-1377
|
$47.86 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE,CHAIN
12053-1006
|
$10.58 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,CLUTCH RELEASE
14025-1249
Superseded by 14090-1422
|
$29.23 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,MISSION
14025-1486
|
$103.79 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN
14026-1081
|
$130.58 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-1167
|
$171.77 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-1091
|
$113.34 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-013
Superseded by 16115-1062
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1009
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,HEX HEAD,6X35
92001-164
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10MM,CHANGE PEDA
92004-1044
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,WIRING HARNESS
21126-008
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,CLUTCH RELES
92049-1003
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,SD-8187
92049-1017
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,HTC 32 52 10
92050-024
Superseded by 92049-1506
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#112
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET
120Z0614
Superseded by 120CD0614
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#120A
BOLT-SOCKET,6X30
120Z0630
Superseded by 120CD0630
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#120B
BOLT-SOCKET,6X40
120Z0640
Superseded by 120CD0640
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#120C
BOLT-SOCKET
120Z0670
Superseded by 120CD0670
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#120D
BOLT-SOCKET
120Z0680
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X20
220B0620
Superseded by 220AA0620
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW PAN HEAD 6X30
220E0630
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
