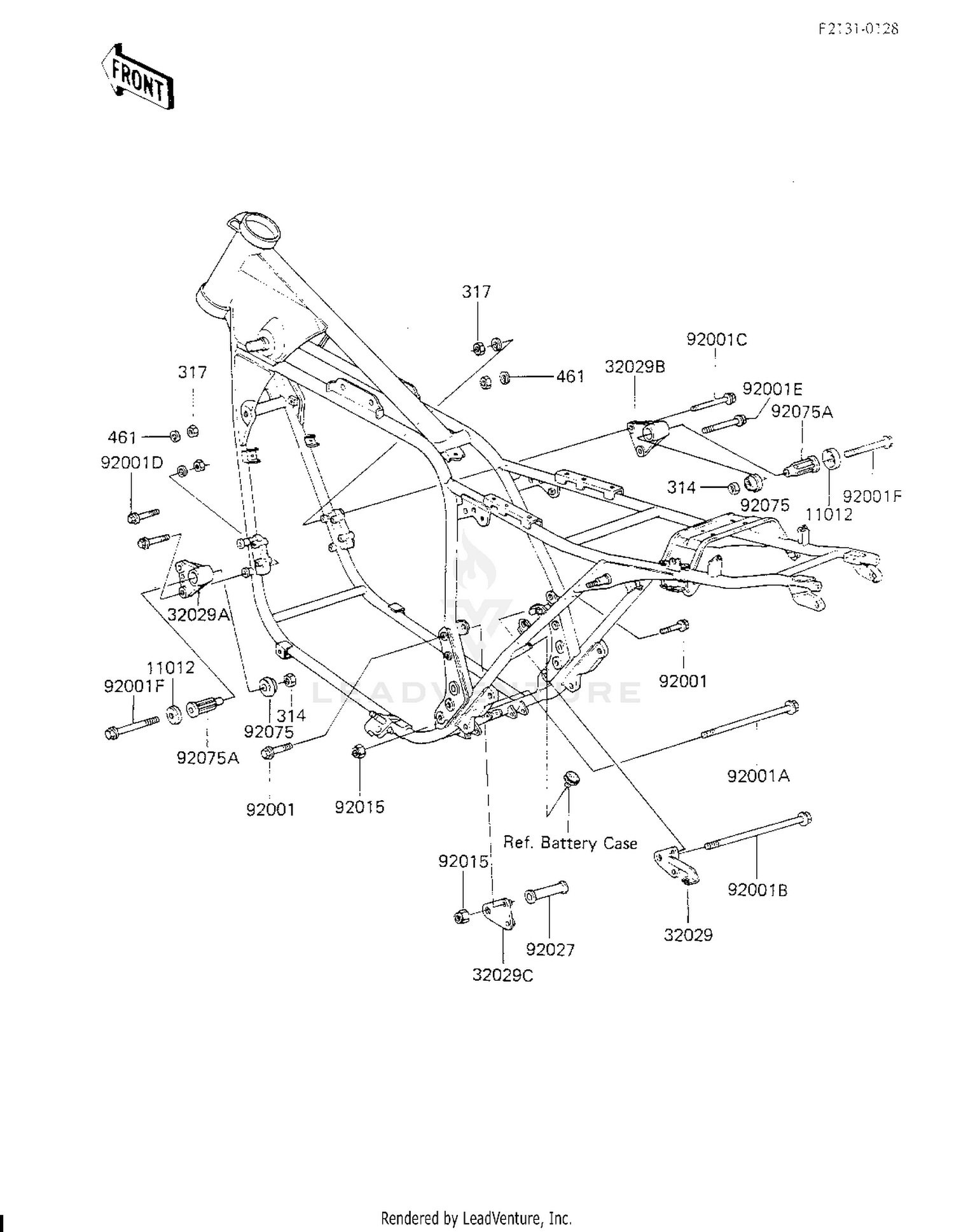

Frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,ENGINE BRACKET
11012-1228
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#32029
PLATE,ENG.MOUNT,R.H.
32029-1129
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#32029A
BRACKET-ENGINE,FR,LH
32029-1192
|
$36.30 | ||
|
Available to order. Add to View Price |
|||
|
#32029B
BRACKET-ENGINE,FR,RH
32029-1193
|
$36.30 | ||
|
Available to order. Add to View Price |
|||
|
#32029C
PLATE,RR ENG MONT,L.H
32030-064
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,8X40,BLA
92001-1612
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,10X225,B
92001-1622
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,10X250
92001-1623
|
$19.92 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,FLANGED,8X80
92001-1640
Superseded by 92150-1808
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92001D
BOLT,FLANGED,8X55,BLA
92001-1641
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92001E
BOLT,FLANGED,8X75,BLA
92001-1642
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001F
BOLT,FLANGED,10X105,BLACK
92001-1751
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,10MM,BLACK
92015-1189
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=54,BLACK
92027-1425
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,ENGINE MOUNT,SIDE
92075-1274
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,ENGINE MOUNT,MAIN
92075-1377
|
$29.62 | ||
|
Available to order. Add to View Price |
|||
|
#314
NUT-HEX-FINE,10MM,BLA
314C1000
Superseded by 314AB1000
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#317
NUT-HEX-SMALL,8MM
317C0800
Superseded by 317AB0800
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM,BLA
461K0800
Superseded by 461DB0800
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
