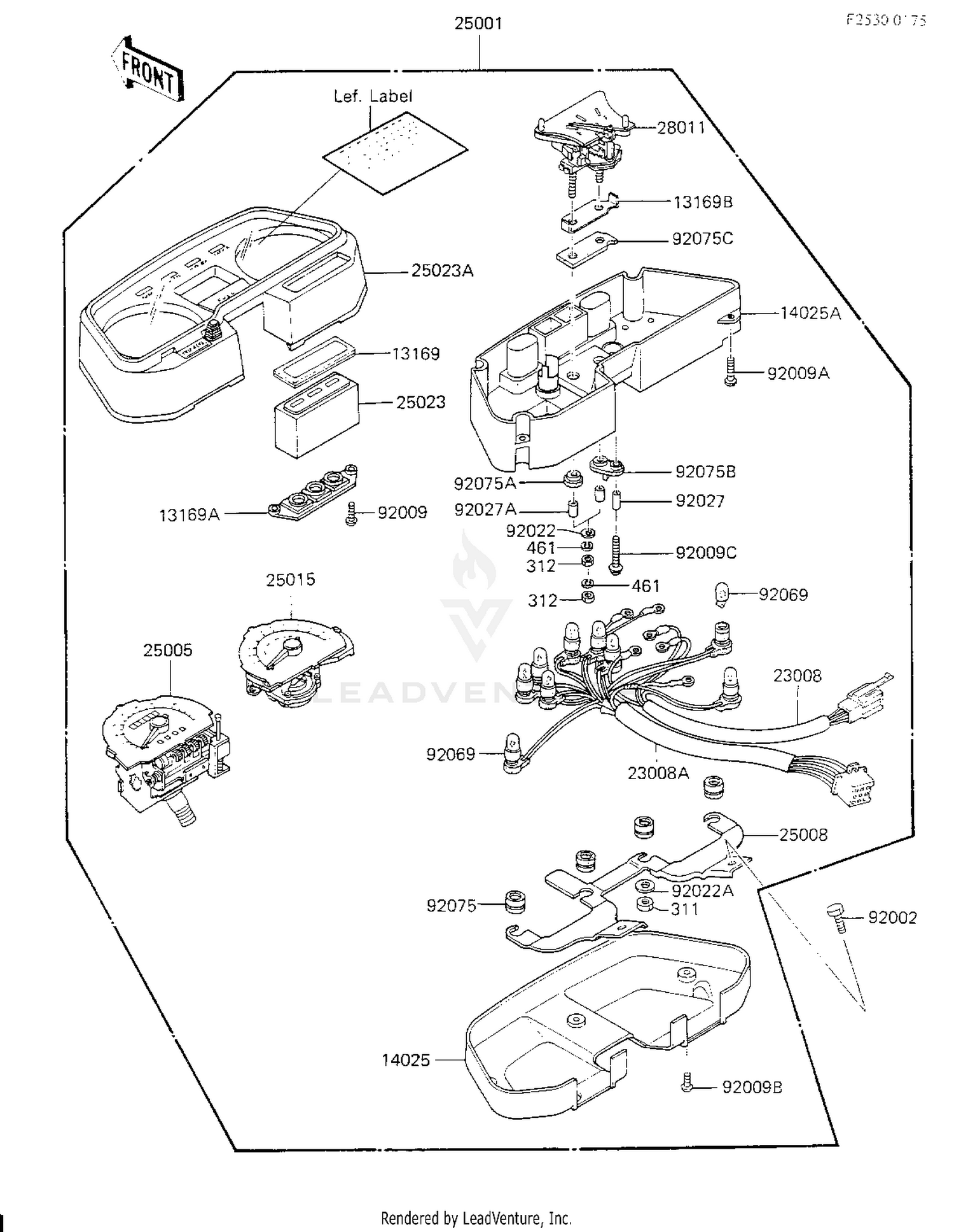

Meters Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13169
PLATE,PILOT BOX
13169-1508
|
$16.15 | ||
|
Available to order. Add to View Price |
|||
|
#13169A
PLATE,BULB SOCKET
13169-1556
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#13169B
PLATE,FUEL METER
13169-1593
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,METER,LWR
14025-1473
|
$37.79 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,METER UNIT
14025-1600
|
$161.93 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,FUEL&OIL
23008-1178
|
$40.68 | ||
|
Available to order. Add to View Price |
|||
|
#23008A
SOCKET-ASSY,METER
23008-1181
|
$87.22 | ||
|
Available to order. Add to View Price |
|||
|
#25001
METER-ASSY,MPH
25001-1554
|
$736.11 | ||
|
Available to order. Add to View Price |
|||
|
#25005
SPEEDOMETER,MPH
25005-1268
Superseded by 25005-1179
|
$290.06 | ||
|
Available to order. Add to View Price |
|||
|
#25008
BRACKET-METER
25008-1058
|
$79.52 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER,X1000R/MIN
25015-1135
|
$359.94 | ||
|
Available to order. Add to View Price |
|||
|
#25023
COVER-METER CASE.PILO
25023-1051
|
$36.27 | ||
|
Available to order. Add to View Price |
|||
|
#25023A
COVER-METER CASE,UPP
25023-1056
|
$364.05 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,FUEL
28011-1032
|
$65.37 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-UPSET-WSP
92002-1133
Superseded by 187AA0614
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X14
92009-1140
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,4X20
92009-1141
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,TAPPING,4X12
92009-1142
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#92009C
SCREW,3X16
92009-1190
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,4.5X10X0.8
92022-1394
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.2X16X1.2
92022-263
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,5.5X11
92027-1563
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,6X8.5
92027-1564
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,METER BRACKET
92075-1385
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,FUEL METER
92075-1453
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,FUEL METER
92075-1454
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER,FUEL METER
92075-1455
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#312
NUT-HEX,4MM
312B0400
Superseded by 311AA0400
|
$0.52 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
