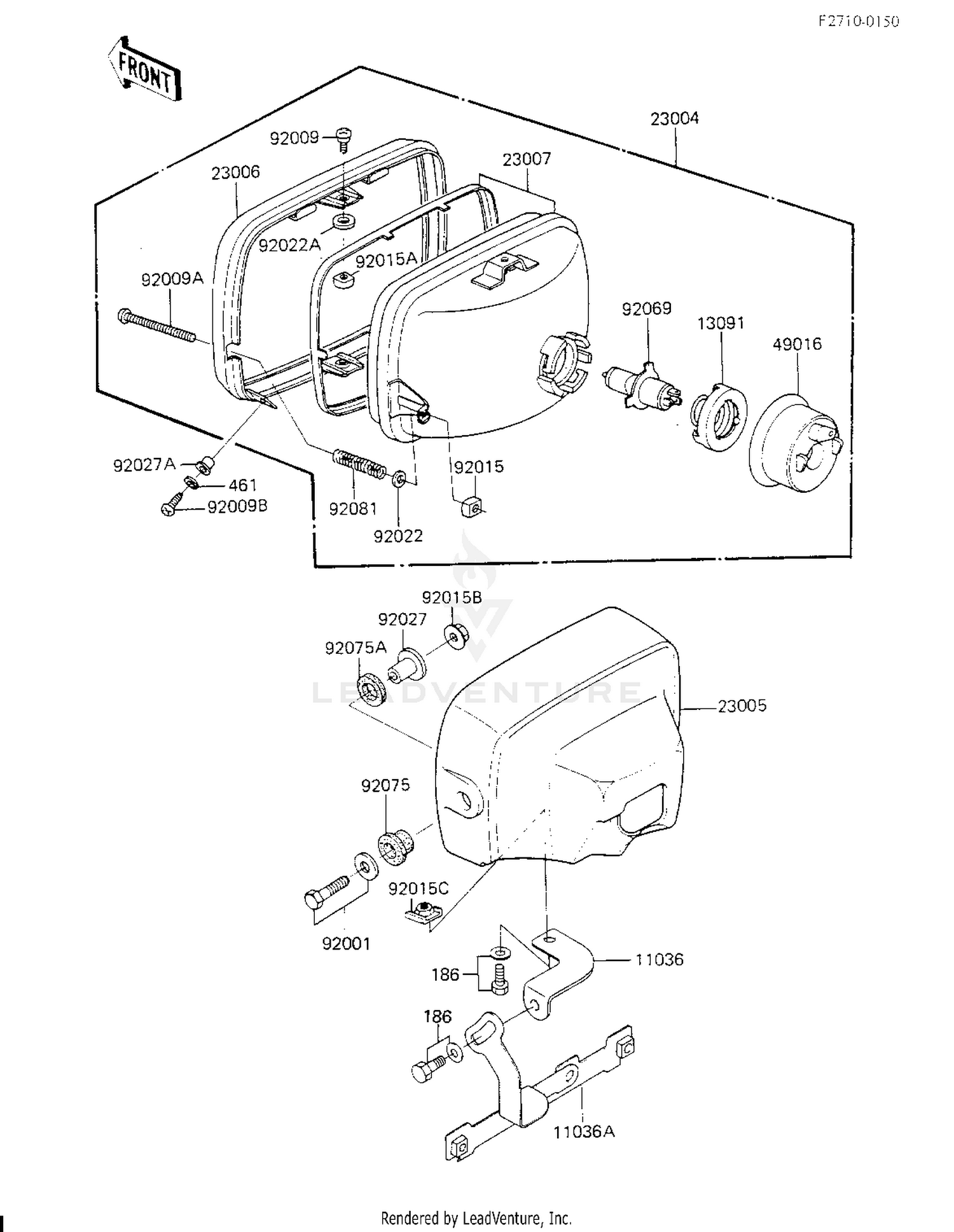

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11036
BRACKET-A,HEAD LAMP,B
11036-1354
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#11036A
BRACKET-A,HEAD LAMP B
11036-1413
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,HEAD LAMP SOCK
13091-1036
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#23004
LAMP-HEAD
23004-1075
|
$526.04 | ||
|
Available to order. Add to View Price |
|||
|
#23005
BODY-COMP-HEAD LAMP,F
23005-1024-21
|
$125.63 | ||
|
Available to order. Add to View Price |
|||
|
#23006
RIM,HEAD LAMP
23006-1005
|
$79.37 | ||
|
Available to order. Add to View Price |
|||
|
#23007
LENS-COMP
23007-1041
|
$232.38 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER,HEAD LAMP SOCKE
49016-1023
|
$14.28 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,8X35
92001-1910
Superseded by 92154-2923
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW-PAN HEAD,5X12
23019-023
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,HEAD LAMP LENS
92009-1047
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,5X16
92009-1693
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,HEAD LAMP RIM FIT
23020-023
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,HEAD LAMP BODY FT
92015-1050
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
23021-004
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER-PLAIN,5MM
23021-012
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=20
92027-1131
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,HEAD LAMP,BLAC
92027-1503
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 60/55W,H4
92069-1002
Superseded by 92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,HEAD LAMP FITTING
92075-1109
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,HEAD LAMP FITTING
92075-1110
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,FOCUS ADJUSTING
92081-1103
Superseded by 92081-1701
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#186
BOLT-UPSET-WP
186C0614
Superseded by 186AB0614
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461K0500
Superseded by 461DB0500
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
