1983 Kawasaki KZ750N SPECTRE Drive Shaft/final Gears OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

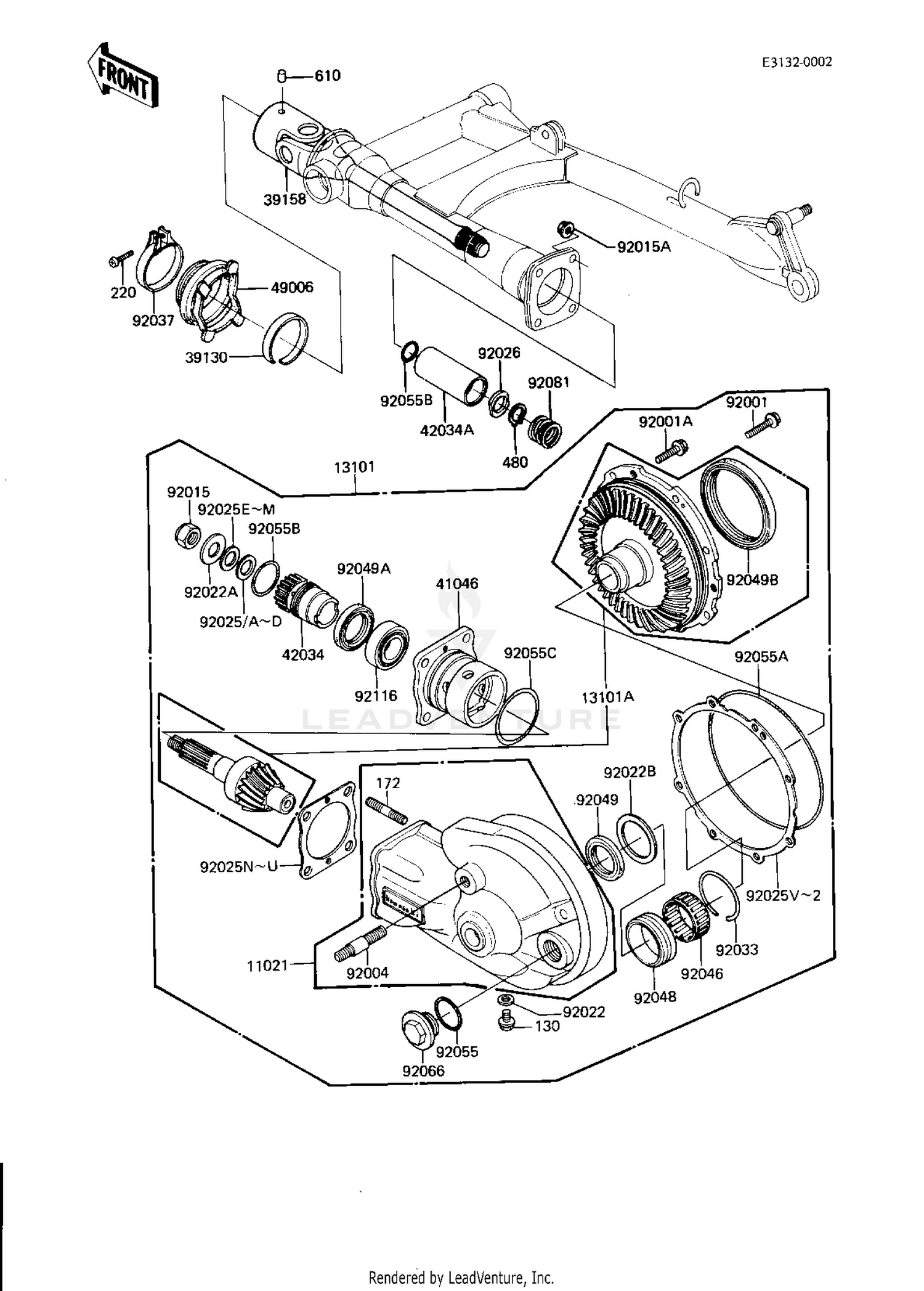

Drive Shaft/final Gears Diagram

Item MSRP Qty
#11021 CASE-ASSY,FINAL GEAR
11021-1015-21
 $1,092.00
Available to order.
Add to View Price
#13101 GEAR-ASSY,FINAL F.BLK
13101-1024-21
 $1,320.89
Available to order.
Add to View Price
#13101A GEAR-ASSY,FINAL BEVEL
13101-5035
 $1,218.74
Available to order.
Add to View Price
#39130 SPRING-LEAF
39130-1002
 $4.50
Available to order.
Add to View Price
#39158 SHAFT-ASSY-DRIVE
39158-1005
 $309.76
Available to order.
Add to View Price
#41046 HOUSING-BEARING
41046-1015
 $172.14
Available to order.
Add to View Price
#42034 COUPLING,DRIVE SHAFT,
42034-1030
 $119.19
Available to order.
Add to View Price
#42034A COUPLING,DRIVE SHAFT,
42034-1031
 $115.76
Available to order.
Add to View Price
#49006 BOOT,PROPELLER SHAFT
49006-1059
 $37.55
Available to order.
Add to View Price
#92001 BOLT,FLANGED,8X28
92001-1095
 $6.36
Available to order.
Add to View Price
#92001A BOLT, FLANGED, 8X25
92001-1324
 $5.01
Available to order.
Add to View Price
#92004 STUD,RR SHOCKABSORBER
92004-1047
 $15.18
Available to order.
Add to View Price
#92015 NUT,12MM
92015-1182
 $7.56
Available to order.
Add to View Price
#92015A NUT,FLANGED,8MM
92015-1408
Superseded by 92210-0004
 $5.23
Available to order.
Add to View Price
#92022 WASHER,8.2X16X1
92022-1086
 $3.80
Available to order.
Add to View Price
#92022A WASHER,12X3X25X3.2
92022-1293
 $6.40
Available to order.
Add to View Price
#92022B WASHER,39X49.5X1
92022-1294
 $6.99
Available to order.
Add to View Price
#92025 SHIM,12.5X17X1.30
92025-1282
 $10.04
Available to order.
Add to View Price
#92025A SHIM,12.5X17X1.32
92025-1283
 $8.36
Available to order.
Add to View Price
#92025B SHIM,12.5X17X1.34
92025-1284
 $8.10
Available to order.
Add to View Price
#92025C SHIM,12.5X17X1.36
92025-1285
 $8.10
Available to order.
Add to View Price
#92025D SHIM,12.5X17X1.38
92025-1286
 $8.10
Available to order.
Add to View Price
#92025E SHIM,12.5X17X0.1
92025-1287
 $6.97
Available to order.
Add to View Price
#92025F SHIM,12.5X17X0.2
92025-1288
 $6.97
Available to order.
Add to View Price
#92025G SHIM,12X5X17X0.3
92025-1289
 $6.97
Available to order.
Add to View Price
#92025H SHIM,12.5X17X0.5
92025-1290
 $7.91
Available to order.
Add to View Price
#92025I SHIM,12.5X17X0.6
92025-1291
 $9.24
Available to order.
Add to View Price
#92025J SHIM,12.5X17X0.7
92025-1292
 $9.24
Available to order.
Add to View Price
#92025K SHIM,12.5X17X0.8
92025-1293
 $9.24
Available to order.
Add to View Price
#92025L SHIM,12.5X17X0.9
92025-1294
 $9.24
Available to order.
Add to View Price
#92025M SHIM,12.5X17X1.0
92025-1295
 $9.24
Available to order.
Add to View Price
#92025N SHIM,T=0.15
92025-1312
 $8.07
Available to order.
Add to View Price
#92025O SHIM,T=0.5
92025-1313
 $7.91
Available to order.
Add to View Price
#92025P SHIM,T=0.6
92025-1314
 $8.10
Available to order.
Add to View Price
#92025Q SHIM,T=0.7
92025-1315
 $8.10
Available to order.
Add to View Price
#92025R SHIM,T=0.8
92025-1316
 $7.99
Available to order.
Add to View Price
#92025S SHIM,T=0.9
92025-1317
 $7.41
Available to order.
Add to View Price
#92025T SHIM,T=1.0
92025-1318
 $7.57
Available to order.
Add to View Price
#92025U SHIM,T=1.2
92025-1319
 $7.57
Available to order.
Add to View Price
#92025V SHIM,T=0.15
92025-1336
 $18.10
Available to order.
Add to View Price
#92025W SHIM,T=0.5
92025-1337
 $17.27
Available to order.
Add to View Price
#92025X SHIM,T=0.6
92025-1338
 $16.13
Available to order.
Add to View Price
#92025Y SHIM,T=0.7
92025-1339
 $16.13
Available to order.
Add to View Price
#92025Z SHIM,T=0.8
92025-1340
 $16.13
Available to order.
Add to View Price
#920250 SHIM,T=0.9
92025-1341
 $16.13
Available to order.
Add to View Price
#920251 SHIM,T=1.0
92025-1342
 $16.13
Available to order.
Add to View Price
#920252 SHIM,T=1.2
92025-1343
 $16.13
Available to order.
Add to View Price
#92026 SPACER,DRIVE SHAFT
92026-1106
 $6.60
Available to order.
Add to View Price
#92033 RING-SNAP,52MM
92033-1074
 $4.50
Available to order.
Add to View Price
#92037 CLAMP,BOOT FITTING
92037-1112
 $16.12
Available to order.
Add to View Price
#92046 BRG,NDL,KT384620EG-B2
92046-1037
 $51.38
Available to order.
Add to View Price
#92048 RACE,ORT465021E01
92048-1019
 $42.90
Available to order.
Add to View Price
#92049 OIL SEAL,SC32435.5
92049-1027
 $24.08
Available to order.
Add to View Price
#92049A SEAL-OIL,SC28438
92049-1084
 $15.51
Available to order.
Add to View Price
#92049B SEAL-OIL,SC759510
92049-1085
 $37.18
Available to order.
Add to View Price
#92055 RING-O,35.8X3.0
92055-1005
 $5.96
Available to order.
Add to View Price
#92055A 0 RING,I.D=150.4MM
92055-1039
 $15.09
Available to order.
Add to View Price
#92055B RING-0,27MM
92055-1119
 $4.84
Available to order.
Add to View Price
#92055C RING-O,55MM
92055-1120
 $5.34
Available to order.
Add to View Price
#92066 PLUG,OIL FILLER CAP,F
92066-1006-21
 $12.30
Available to order.
Add to View Price
#92081 SPRING,DRIVE SHAFT
92081-1427
 $5.38
Available to order.
Add to View Price
#92116 BEARING-ROLLER,4T3200
92116-1010
 $38.99
Available to order.
Add to View Price
#130 BOLT-FLANGED,8X12
130B0812
Superseded by 130AA0812
 $0.77
Available to order.
Add to View Price
#172 BOLT-STUD,8X30
172G0830
Superseded by 172BA0830
 $2.49
Available to order.
Add to View Price
#220 SCREW-PAN-CROS
220B0430
Superseded by 220AA0430
 $0.75
Available to order.
Add to View Price
#480 CIRCLIP-TYPE-C,20MM
480J2000
 $2.68
Available to order.
Add to View Price
#610 ROLLER,4X6
610A0406
 $4.17
Available to order.
Add to View Price
