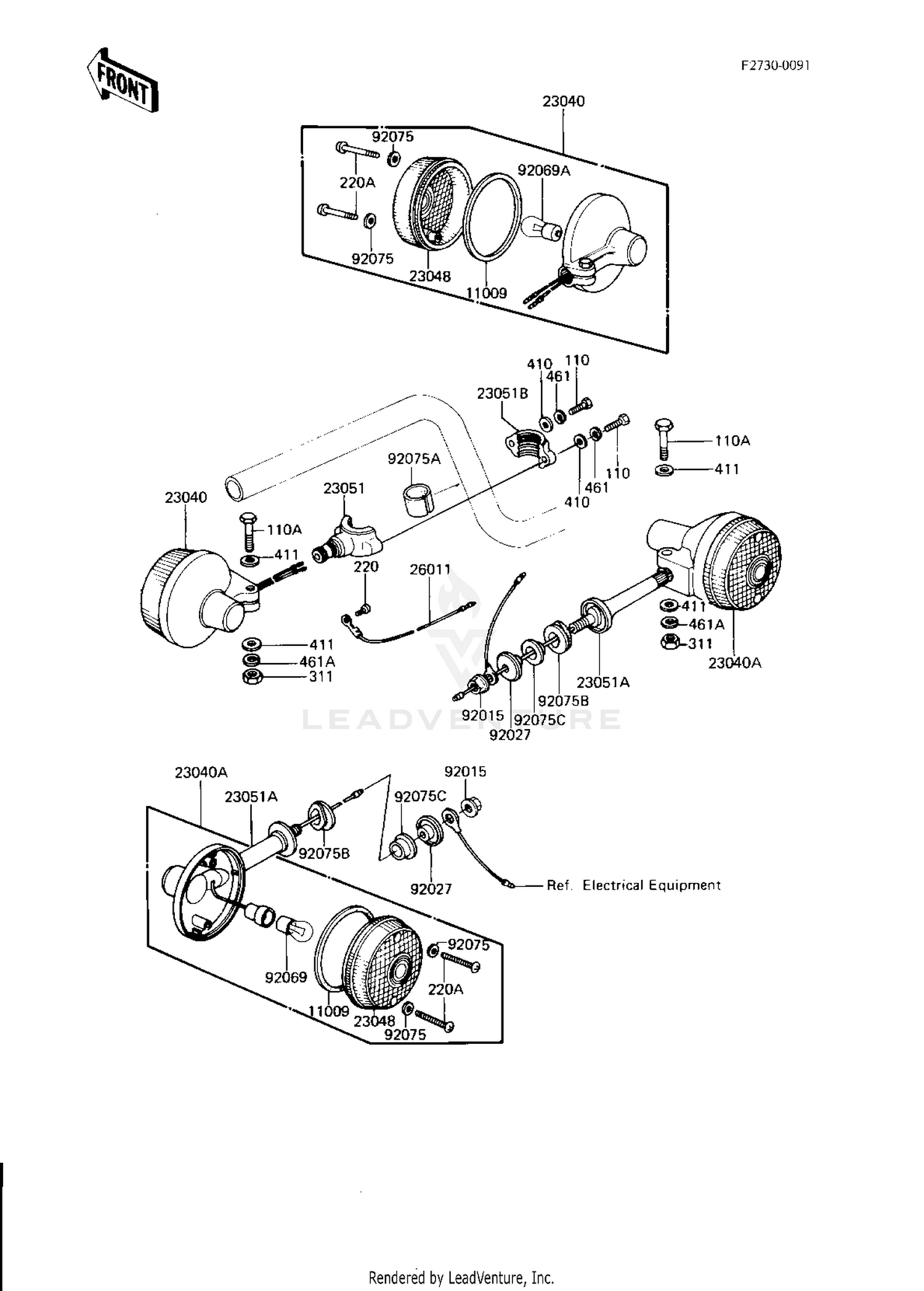

1983 Kawasaki KZ750N SPECTRE TURN SIGNALS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET-SIG LAMP LENS
23050-003
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#23040
LAMP,FRNT,TURN SIGNAL
23040-1042
Superseded by 23040-1004
|
$128.36 | ||
|
Available to order. Add to View Price |
|||
|
#23040A
LAMP-SIGNAL,RR
23040-1043
|
$132.89 | ||
|
Available to order. Add to View Price |
|||
|
#23048
LENS,TURN SIGNAL LAMP
23048-1001
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#23051
BRACKET-SIGNAL LAMP,F
23051-1077
|
$26.51 | ||
|
Available to order. Add to View Price |
|||
|
#23051A
BRACKET-SIGNAL LAMP,R
23051-1078
|
$54.67 | ||
|
Available to order. Add to View Price |
|||
|
#23051B
BRACKET-SIGNAL LAMP,F
23051-1079
|
$12.10 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-TURN SIGNAL LEAD
26011-061
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1428
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-147
|
$14.11 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 32CP(23W)
92069-055
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 32/3CP(23/8W)
92069-060
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#92075
WASHER,PLAIN,4MM
23058-002
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER RUBBER
23066-003
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER RUBBER
92075-128
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER RUBBER,SIG LM
92075-158
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#110
BOLT,5X16,BLACK
110C0516A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#110A
BOLT,6X30,BLACK
110C0630
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW,3X5
220B0305A
Superseded by 92009-1123
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,4X20
220B0420
Superseded by 220AA0420
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311C0600
Superseded by 311AB0600
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL
410F0500
Superseded by 410AB0500
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411F0600
Superseded by 411AB0600
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461K0500
Superseded by 461DB0500
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,6MM
461K0600
Superseded by 461DB0600
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
