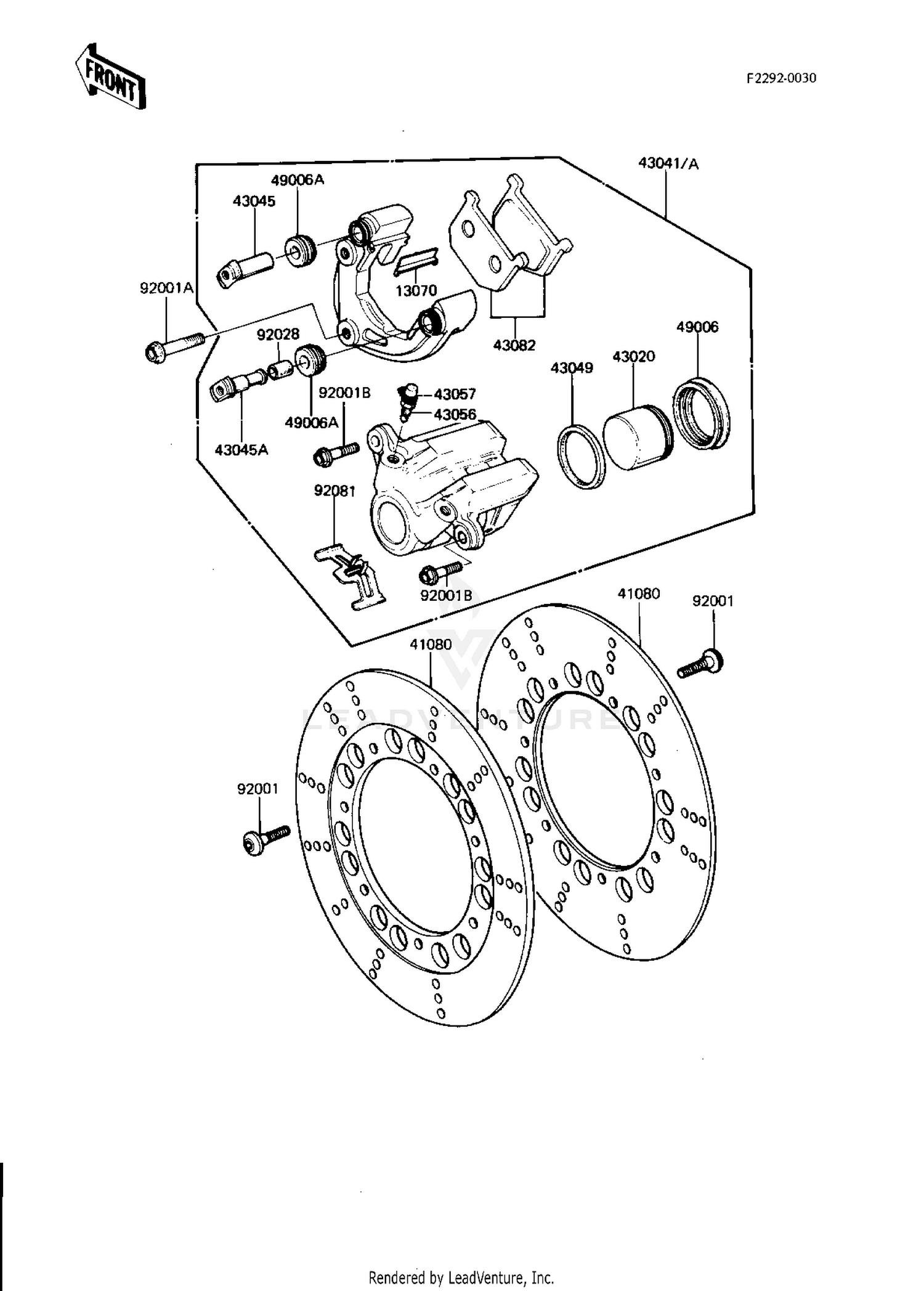

1983 Kawasaki KZ750N SPECTRE FRONT BRAKE OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13070
GUIDE,PAD
13070-1026
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#41080
DISC,FR,SILVER
41080-1130
Superseded by 41080-0012-CM
|
$422.68 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1096
|
$65.17 | ||
|
Available to order. Add to View Price |
|||
|
#43041
CALIPER-ASSY,FR,LH
43041-1051
Superseded by 43041-1381
|
$575.10 | ||
|
Available to order. Add to View Price |
|||
|
#43041A
CALIPER-ASSY,FR,RH
43041-1052
Superseded by 43041-1382
|
$518.41 | ||
|
Available to order. Add to View Price |
|||
|
#43045
SHAFT,CALIPER
43045-1007
|
$22.36 | ||
|
Available to order. Add to View Price |
|||
|
#43045A
SHAFT,CALIPER
43045-1008
|
$22.36 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,PISTON SEAL
43049-002
Superseded by 43049-1098
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BLEEDER SET
43056-003
Superseded by 43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-003
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD SET,FRONT BRAKE
43082-1007
|
$53.35 | ||
|
Available to order. Add to View Price |
|||
|
#49006
DUST SEAL,PISTON
49006-1043
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
DUST SEAL
49006-1044
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,SOCKET,8X30
92001-1951
Superseded by 92154-1865
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,10X41
92001-1355
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,8X25,BLA
92001-1510
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,SHAFT CALIPER
92028-1090
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PAD
92081-1229
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
