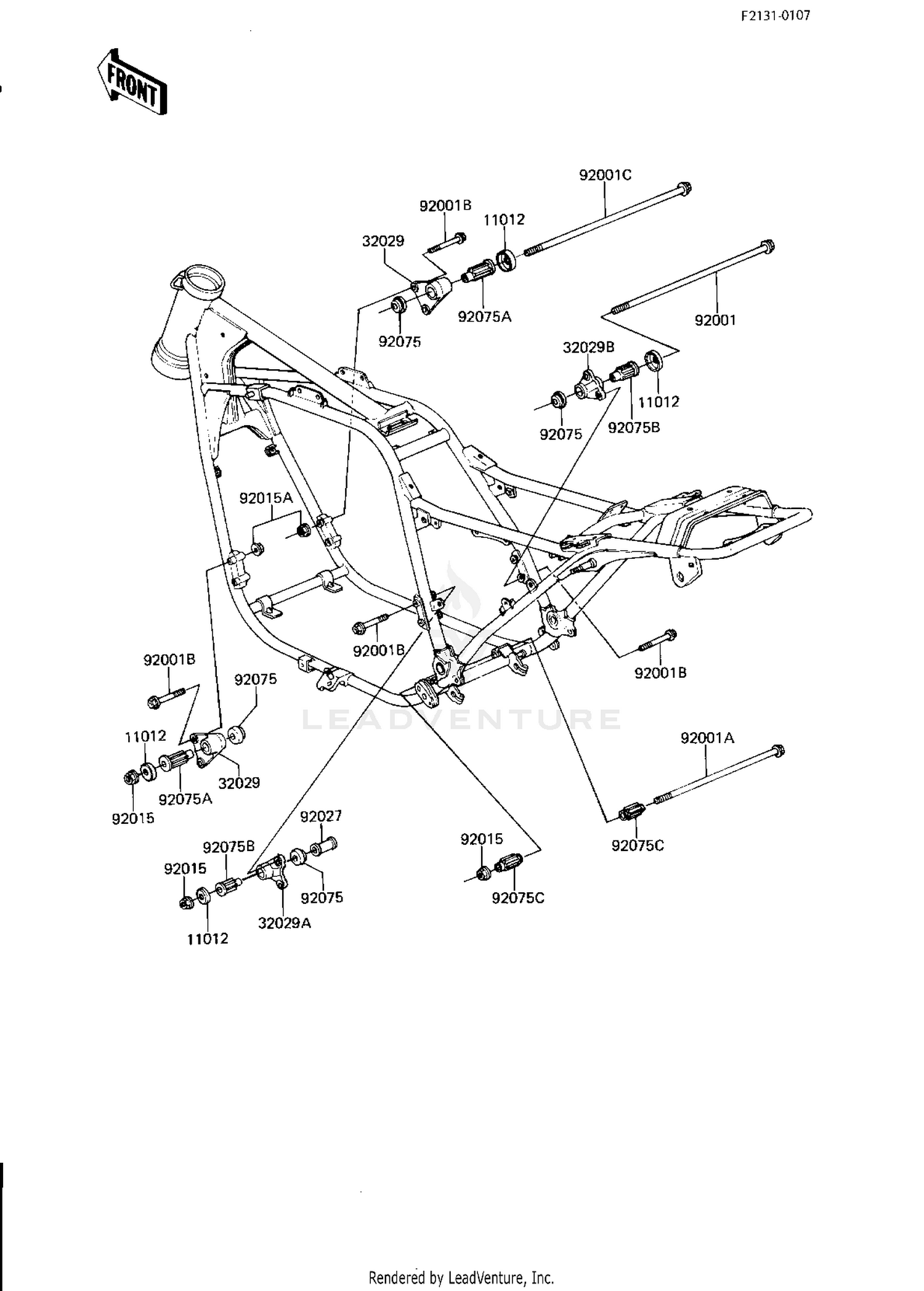

Frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,ENGINE BRACKET
11012-1228
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#32029
BRACKET-ENGINE-FR
32029-1194
|
$36.55 | ||
|
Available to order. Add to View Price |
|||
|
#32029A
BRACKET-ENGINE,RR,LH
32029-1195
|
$33.04 | ||
|
Available to order. Add to View Price |
|||
|
#32029B
BRACKET-ENGINE,RR,RH
32029-1332
|
$41.00 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,10X323,B
92001-1565
|
$20.69 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,10X255,B
92001-1566
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,8X55,BLA
92001-1641
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92001C
BOLT,FLANGED,10X330
92001-1664
Superseded by 92002-1540
|
$25.53 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-1180
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,8MM
92015-1408
Superseded by 92210-0004
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=37M/M
92027-1110
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,ENGINE MOUNT,SIDE
92075-1274
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,ENGINE MOUNT,MAIN
92075-1377
|
$29.62 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,11X36X50X7
92075-1378
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#92075C
DAMPER,11X29X42X7
92075-1379
|
$20.36 | ||
|
Available to order. Add to View Price |
|||
