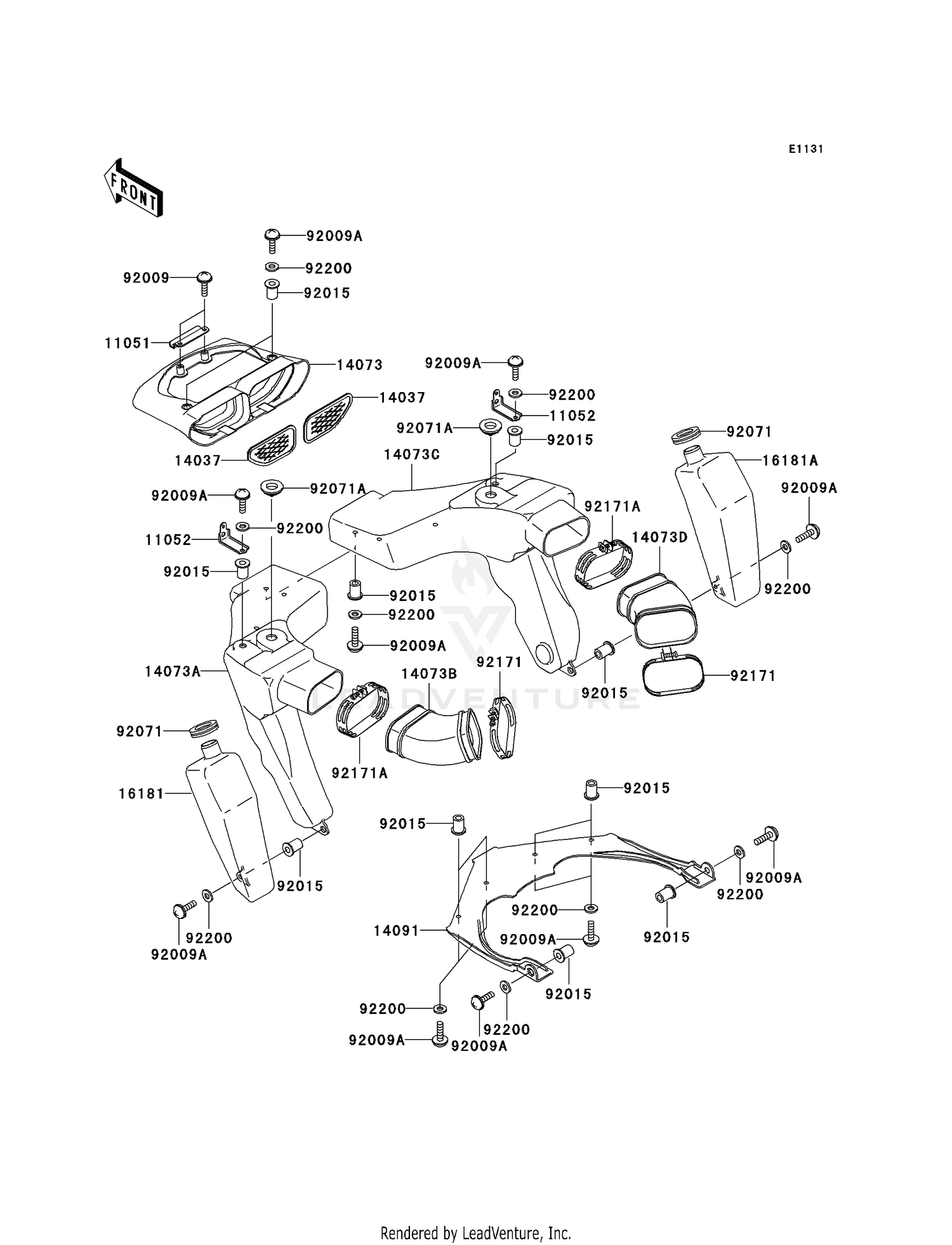

Air Duct Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11051
BRACKET
11051-1863
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#11052
BRACKET
11052-1182
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN,DUCT
14037-1286
|
$36.13 | ||
|
Available to order. Add to View Price |
|||
|
#14073
DUCT,M.F.C.GRAY
14073-1745-3L
|
$215.80 | ||
|
Available to order. Add to View Price |
|||
|
#14073A
DUCT,LH
14073-1747
|
$125.21 | ||
|
Available to order. Add to View Price |
|||
|
#14073B
DUCT,LH
14073-1748
|
$55.10 | ||
|
Available to order. Add to View Price |
|||
|
#14073C
DUCT,RH
14073-1749
|
$125.21 | ||
|
Available to order. Add to View Price |
|||
|
#14073D
DUCT,RH
14073-1750
|
$50.14 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER
14091-1158
|
$17.78 | ||
|
Available to order. Add to View Price |
|||
|
#16181
TANK-RESONATOR
16181-1093
|
$41.55 | ||
|
Available to order. Add to View Price |
|||
|
#16181A
TANK-RESONATOR
16181-1094
|
$53.79 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,5X14
92009-1197
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X16
92009-1909
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,AIR CLEANER
92071-1013
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#92071A
GROMMET
92071-1222
|
$6.34 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1093
|
$18.43 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-1169
|
$21.52 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,NYLON,5.3X11.5X0.5
92200-1480
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
