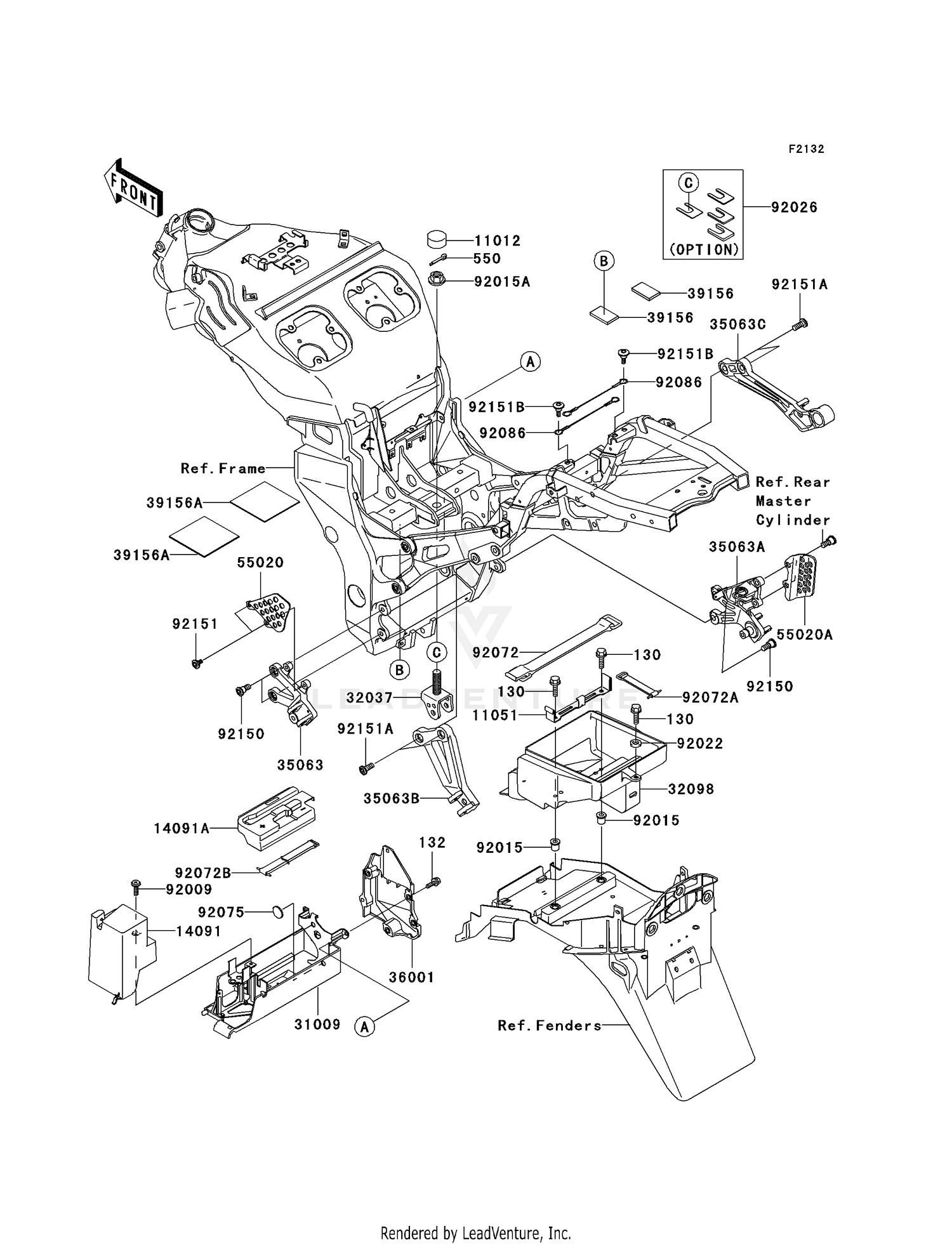

Battery Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X25
130J0625
Superseded by 130BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X16
132J0616
Superseded by 132BB0616
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X25
550D4025
Superseded by 550AA4025
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,AXLE NUT
11012-1592
|
$7.28 | ||
|
Available to order. Add to View Price |
|||
|
#11051
BRACKET,TOOL CASE
11051-1377
|
$18.43 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,FUSE
14091-1238
|
$45.77 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,BATTERY
14091-1288
|
$43.05 | ||
|
Available to order. Add to View Price |
|||
|
#31009
CASE-COMP-BATTERY
31009-1056
|
$131.26 | ||
|
Available to order. Add to View Price |
|||
|
#32037
BRACKET-SHOCKABSORBER
32037-1800
|
$43.77 | ||
|
Available to order. Add to View Price |
|||
|
#32098
CASE-TOOL
32098-1131
|
$105.35 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY,FR,LH
35063-1062
|
$156.81 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,FR,RH
35063-1063
Superseded by 35063-1236
|
$168.30 | ||
|
Available to order. Add to View Price |
|||
|
#35063B
STAY,RR,LH
35063-1064
|
$138.80 | ||
|
Available to order. Add to View Price |
|||
|
#35063C
STAY,RR,RH
35063-1065
|
$138.80 | ||
|
Available to order. Add to View Price |
|||
|
#36001
COVER-SIDE,FRAME,RH,F
36001-1643-8F
Superseded by 36001-1670-8F
|
$76.18 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD
39156-1649
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD
39156-1650
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FRONT STEP,LH
55020-1696
|
$28.86 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,FRONT STEP,RH
55020-1697
|
$28.86 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X16
92009-1909
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1700
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,16MM
92015-1881
Superseded by 92210-1817
|
$22.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,7X16X1.2
92022-1344
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,SET
92026-1586
|
$116.61 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=150
92072-1203
|
$13.72 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,TOOL
92072-1349
|
$16.43 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=290
92072-1377
|
$20.63 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,RUBBER
92075-261
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92086
WIRE,HELMET LOCK
92086-1075
Superseded by 92086-0552
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X20
92150-1839
Superseded by 92153-1621
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6MM
92151-1334
Superseded by 92153-1622
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,SOCKET,10X30
92151-1372
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92151B
BOLT,SOCKET,6X21
92151-1880
Superseded by 92153-1618
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
