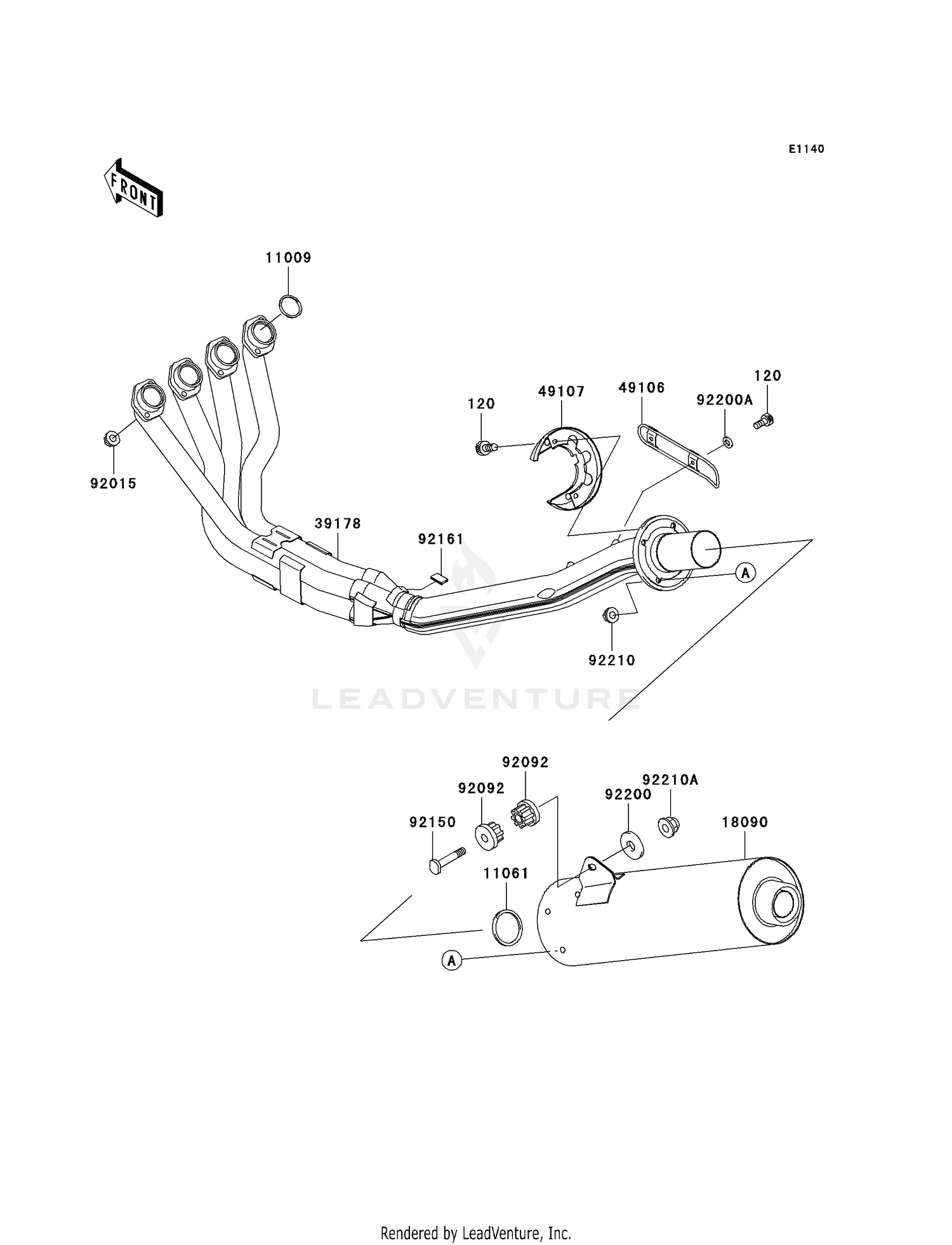

Muffler(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET
120R0610
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,EXHAUST PIPE HOLDER
11009-1840
Superseded by 18067-013
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,MUFFLER CONNEC
11061-1095
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#18090
BODY-COMP-MUFFLER
18090-1716
|
$1,356.92 | ||
|
Available to order. Add to View Price |
|||
|
#39178
MANIFOLD-COMP-EXHAUST
39178-1332
Superseded by 39178-1336
|
$1,449.14 | ||
|
Available to order. Add to View Price |
|||
|
#49106
COVER-MUFFLER
49106-1256
|
$125.71 | ||
|
Available to order. Add to View Price |
|||
|
#49107
COVER-EXHAUST PIPE
49107-1185
|
$89.51 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1402
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER,MUFFLER
92092-1013
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,10X55
92150-1792
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-1228
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,10.5X25X2.0
92200-1377
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,6.5X16X2.0
92200-1543
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,8MM
92210-1114
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,CAP,10MM
92210-1121
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
