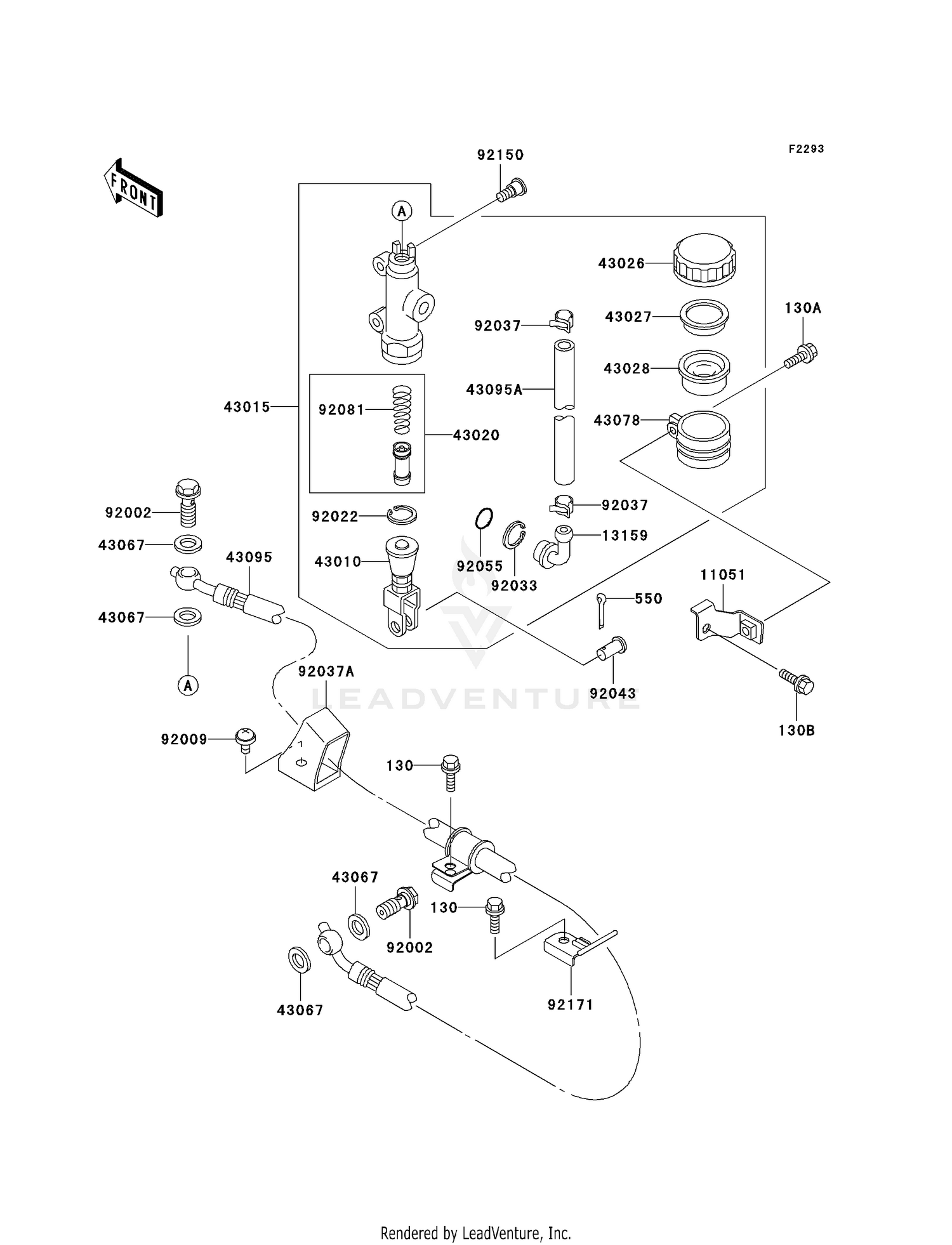

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X10
130J0610
Superseded by 130BB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X16
130J0616
Superseded by 130BB0616
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,6X20
130J0620
Superseded by 130BB0620
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#11051
BRACKET,RESERVOIR TAN
11051-1378
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,RR MASTER CYLINDER
13159-1052
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-1055
|
$66.41 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-1649
|
$384.88 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1057
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1051
|
$32.90 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1051
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43067
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR,RR MASTER CYLINDER
43078-1082
|
$27.16 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,RR
43095-1154
Superseded by 43095-0090
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#43095A
HOSE-BRAKE,RR MASTER
43095-1161
|
$36.65 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X10
92009-1661
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
RING-SNAP,20.9X24.6X1.2
92022-1601
Superseded by 92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.5MM
92033-1186
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,BRAKE HOSE
92037-1547
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HOSE
92037-1896
|
$22.40 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X17
92043-1303
Superseded by 92043-0104
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-1251
Superseded by 92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,MASTER CYLINDER
92081-1737
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X30
92150-1843
Superseded by 92153-1624
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,BRAKE HOSE,RR
92171-1162
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
