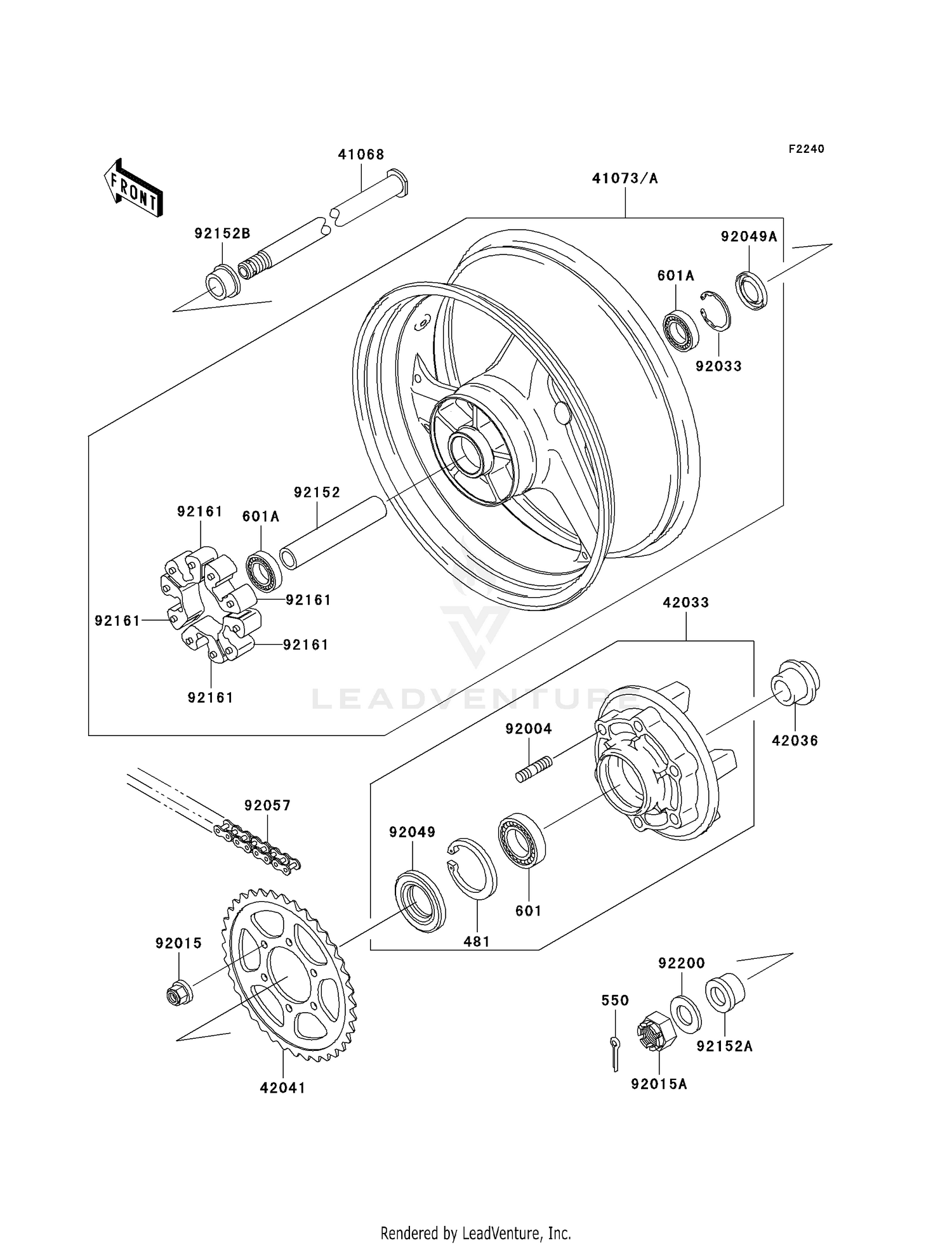

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#481
RING-SNAP,55MM
481J5500
Superseded by 92033-1274
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X40
550D4040
Superseded by 550AA4040
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6006G
601B6006G
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL
601B6205UU
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1416
|
$114.70 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,C.GRAY
41073-1651-DH
|
$1,016.81 | ||
|
Available to order. Add to View Price |
|||
|
#41073A
WHEEL-ASSY,RR,M.L.BLUE
41073-1651-E7
|
|||
|
Unavailable |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-1203
|
$290.85 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=22
42036-1279
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,46T
42041-1523
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-1275
Superseded by 92004-0028
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,10MM
92015-1335
Superseded by 92210-0276
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CASTLE,24MM
92015-1844
Superseded by 92210-0280
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,PJN40556
92049-1263
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,BJN 32 52 5
92049-1375
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,DID50ZVZX
92057-1477
Superseded by 92057-0146
|
$441.58 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,RR HUB,L=152.5
92152-1080
|
$32.22 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,RR AXLE,LH,L=1
92152-1181
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR,RR AXLE,RH,L=16
92152-1246
|
$24.25 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,SHOCK,RR HUB
92161-1069
|
$29.15 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,25.5X38X3.2
92200-1479
Superseded by 92200-0278
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
