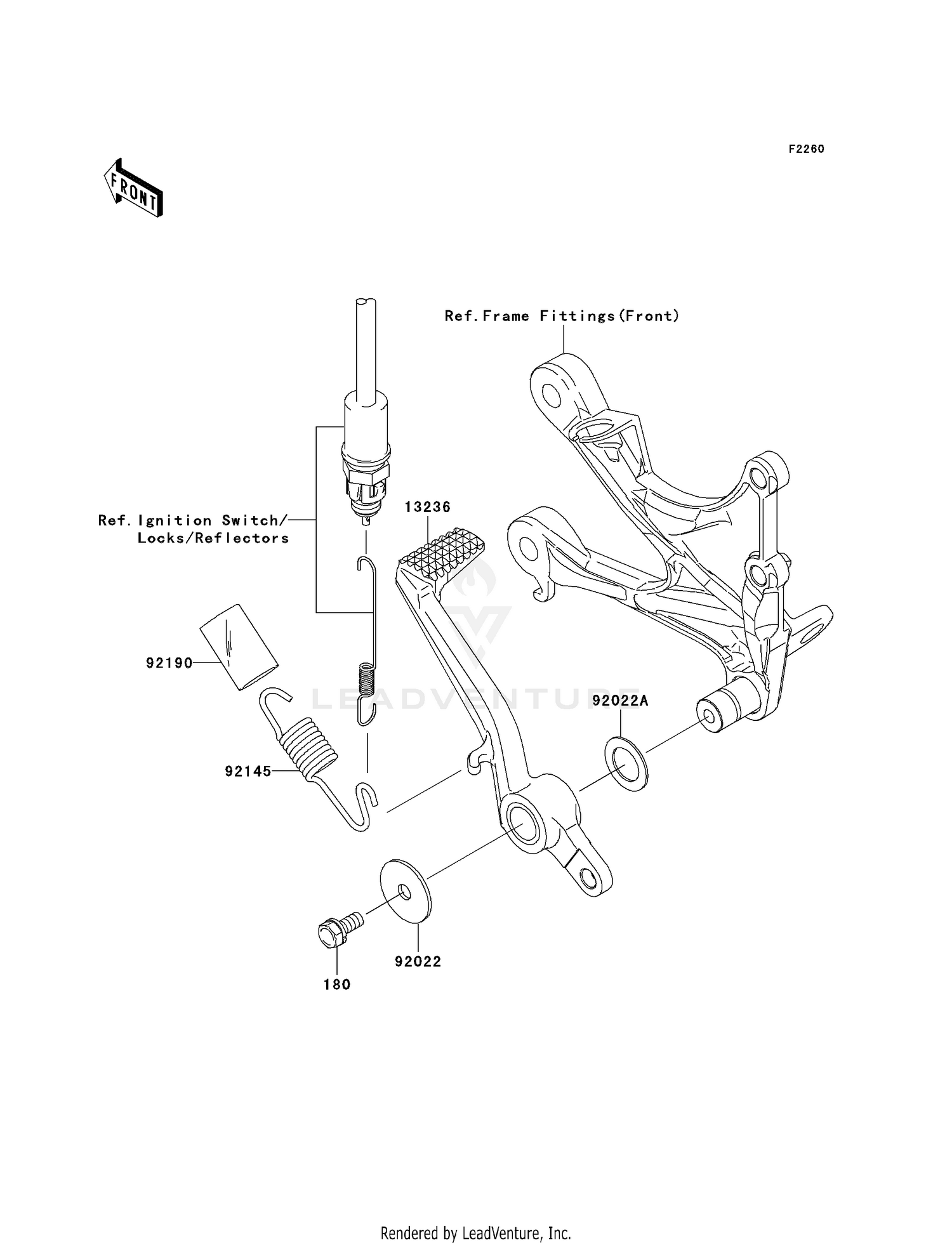

Brake Pedal/torque Link Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#180
BOLT-UPSET-WS,6X14
180L0614
Superseded by 180BB0614
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,BRAKE PEDA
13236-0069
Superseded by 13236-0111
|
$103.91 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,7X28X1.6
92022-1282
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,15.3X24X1
92022-326
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,BRAKE PEDAL RETURN
92145-0230
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,16X19X30
92190-1185
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
