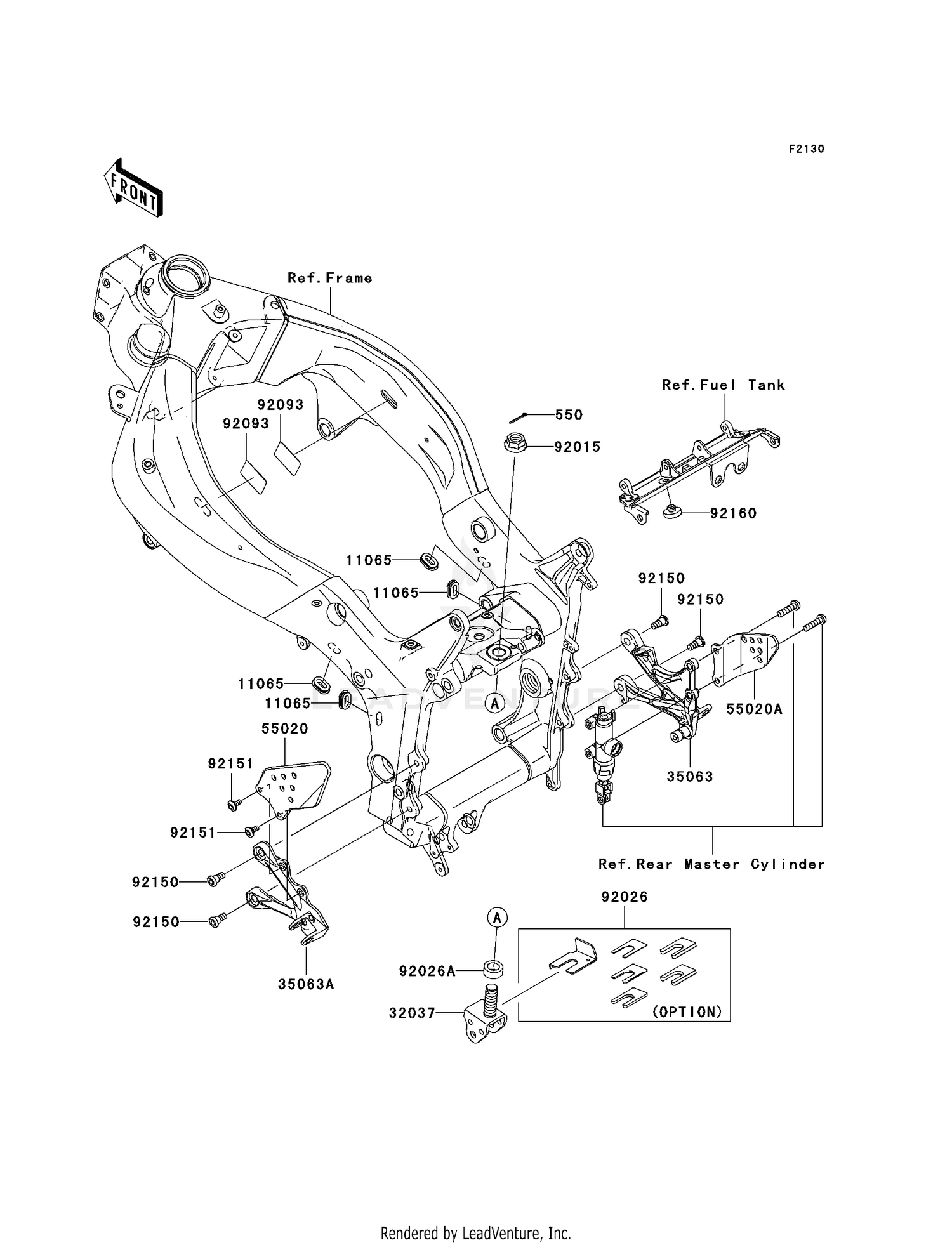

Frame Fittings (front) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#550
PIN-COTTER,3X25
550S3025
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-0095
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#32037
BRACKET-SHOCKABSORBER
32037-0045
|
$28.44 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY,FR,RH,P.SILVER
35063-0143
Superseded by 35063-0419-458
|
$131.77 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,FR,LH
35063-0160
|
$123.16 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FRONT STEP,LH
55020-0134
|
$28.18 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,FRONT STEP,RH
55020-0135
|
$28.18 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,16MM
92015-1881
Superseded by 92210-1817
|
$22.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,SET
92026-0057
|
$238.73 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,16.5X26X11
92026-0079
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-0034
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X20
92150-1839
Superseded by 92153-1621
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X14
92151-1654
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1396
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
