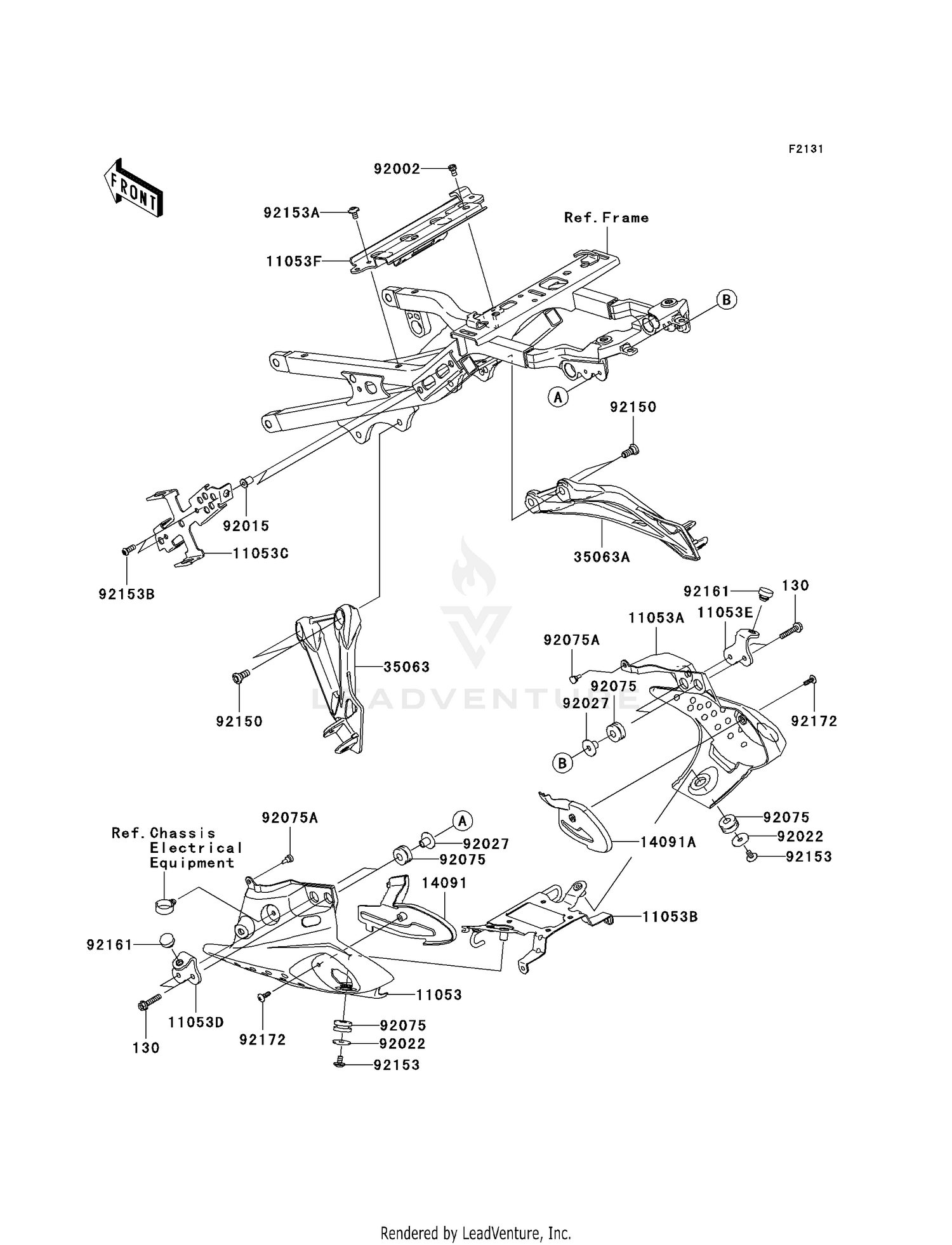

Frame Fittings (rear) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X30
130L0630
Superseded by 130BB0630
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#11053
BRACKET,REAR SIGNAL L
11053-1404
|
$39.02 | ||
|
Available to order. Add to View Price |
|||
|
#11053A
BRACKET,REAR SIGNAL L
11053-1405
|
$39.02 | ||
|
Available to order. Add to View Price |
|||
|
#11053B
BRACKET,REAR FLAP
11053-1538
|
$61.92 | ||
|
Available to order. Add to View Price |
|||
|
#11053C
BRACKET,RELAY BOX
11053-1664
|
$40.64 | ||
|
Available to order. Add to View Price |
|||
|
#11053D
BRACKET
11053-1701
|
$19.98 | ||
|
Available to order. Add to View Price |
|||
|
#11053E
BRACKET
11053-1702
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#11053F
BRACKET
11053-1721
|
$113.56 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,REAR SIGNAL LAM
14091-0362
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,REAR SIGNAL LAM
14091-0363
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY,RR,LH
35063-0144
|
$141.25 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,RR,RH
35063-0145
|
$141.25 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SOCKET,6X14
92002-1175
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,7X24X1.6
92022-1160
Superseded by 92022-228
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=13.1,BLACK
92027-1450
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,6X10X15
92075-1808
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X20
92150-1760
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X10
92153-0410
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,6X18
92153-0816
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,5X16
92153-1244
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0046
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING,5X16
92172-0175
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
