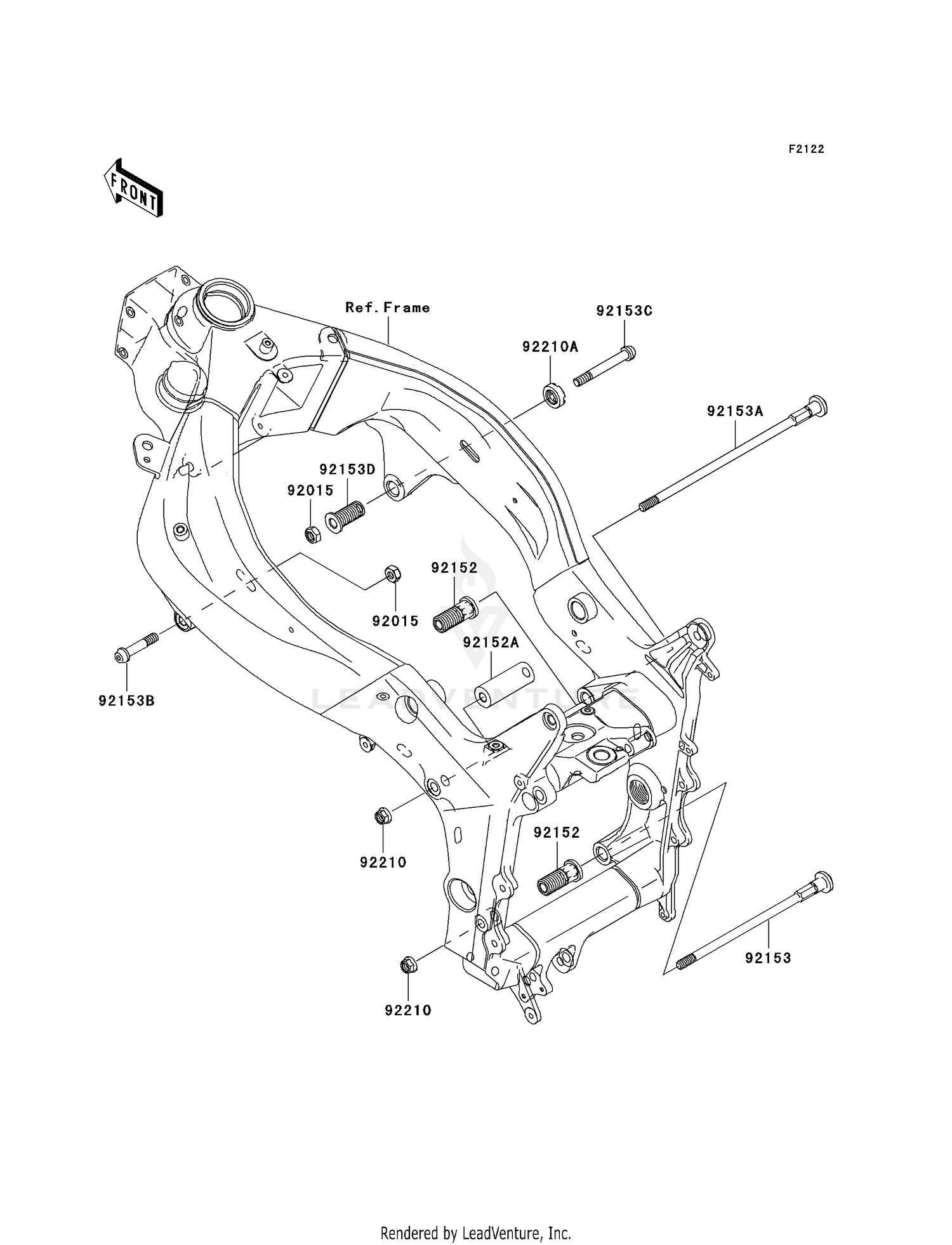

Engine Mount Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#92015
NUT,LOCK,10MM,BLACK
92015-1189
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,ENGINE MOUNT
92152-0076
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,10.5X26X70
92152-1062
|
$33.58 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,10X233
92153-0814
|
$43.86 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,10X285.5
92153-0815
|
$43.85 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,10X50
92153-0858
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,SOCKET,10X80
92153-0924
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#92153D
BOLT,ENGINE MOUNT,18M
92153-1098
|
$23.71 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-1139
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,CASTLE,18MM
92210-1390
|
$18.32 | ||
|
Available to order. Add to View Price |
|||
