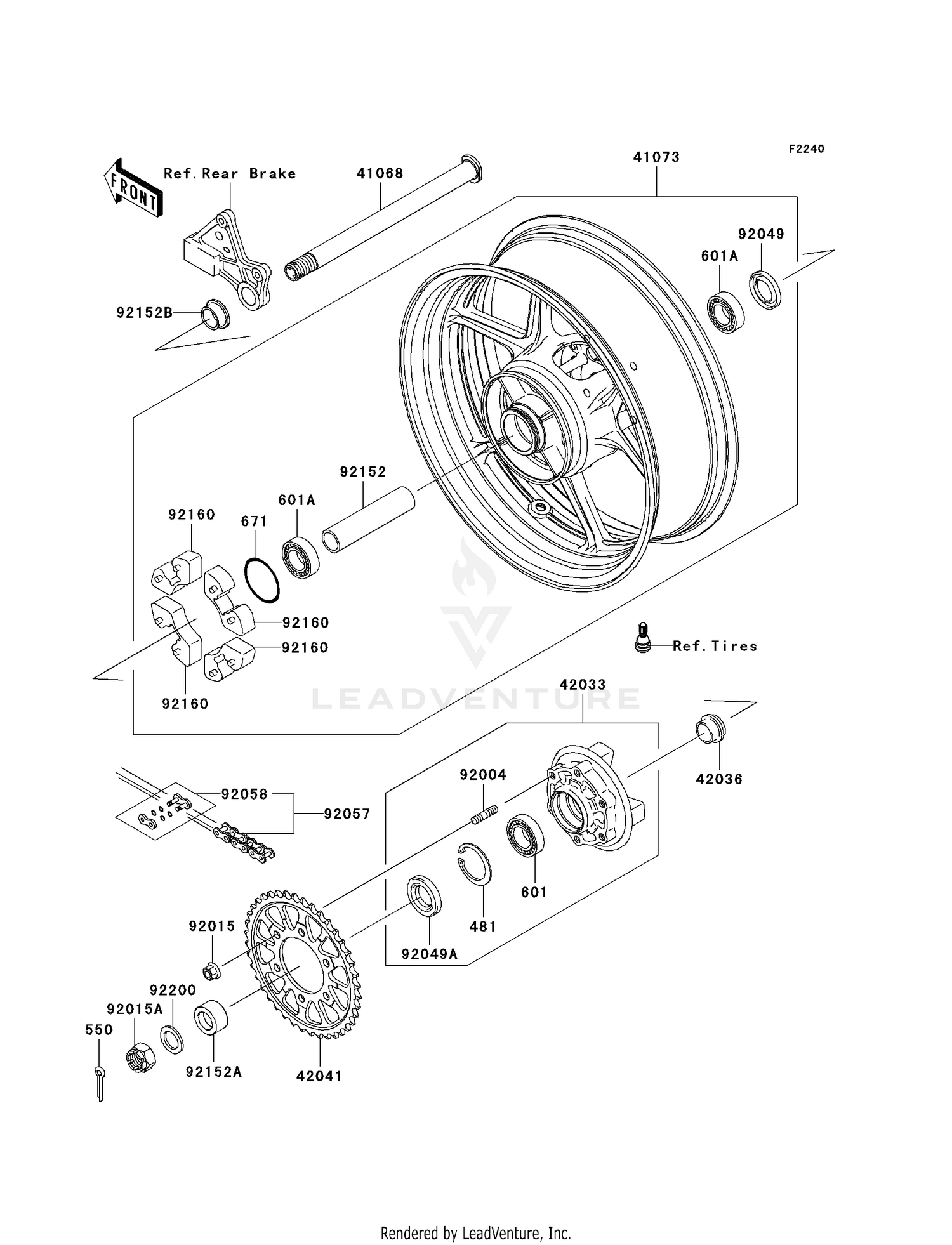

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#481
RING-SNAP,55MM
481J5500
Superseded by 92033-1274
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X40
550D4040
Superseded by 550AA4040
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6006G
601B6006G
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL
601B6205UU
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,60MM
671B2560
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR,24X326
41068-0035
Superseded by 41068-0613
|
$87.38 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-ASSY,RR,GRAYSTO
41073-0040-2A
|
$1,032.08 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-1213
|
$237.74 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB,L=22
42036-1279
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,43T
42041-0017
Superseded by 42041-0070
|
$83.52 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-1275
Superseded by 92004-0028
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,10MM
92015-1335
Superseded by 92210-0276
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CASTLE,24MM
92015-1844
Superseded by 92210-0280
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJN 32 52 5
92049-1375
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,PJN 40 55 8
92049-1376
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK520MVXL
92057-0089
|
$205.87 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-0007
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,RR HUB,L=137
92152-0214
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,RR AXLE,LH,L=2
92152-0244
|
$46.42 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR,RR AXLE,RH,L=1
92152-0245
|
$40.64 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,SHOCK,RR HUB
92160-1485
|
$24.70 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,25.5X38X3.2
92200-1479
Superseded by 92200-0278
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
