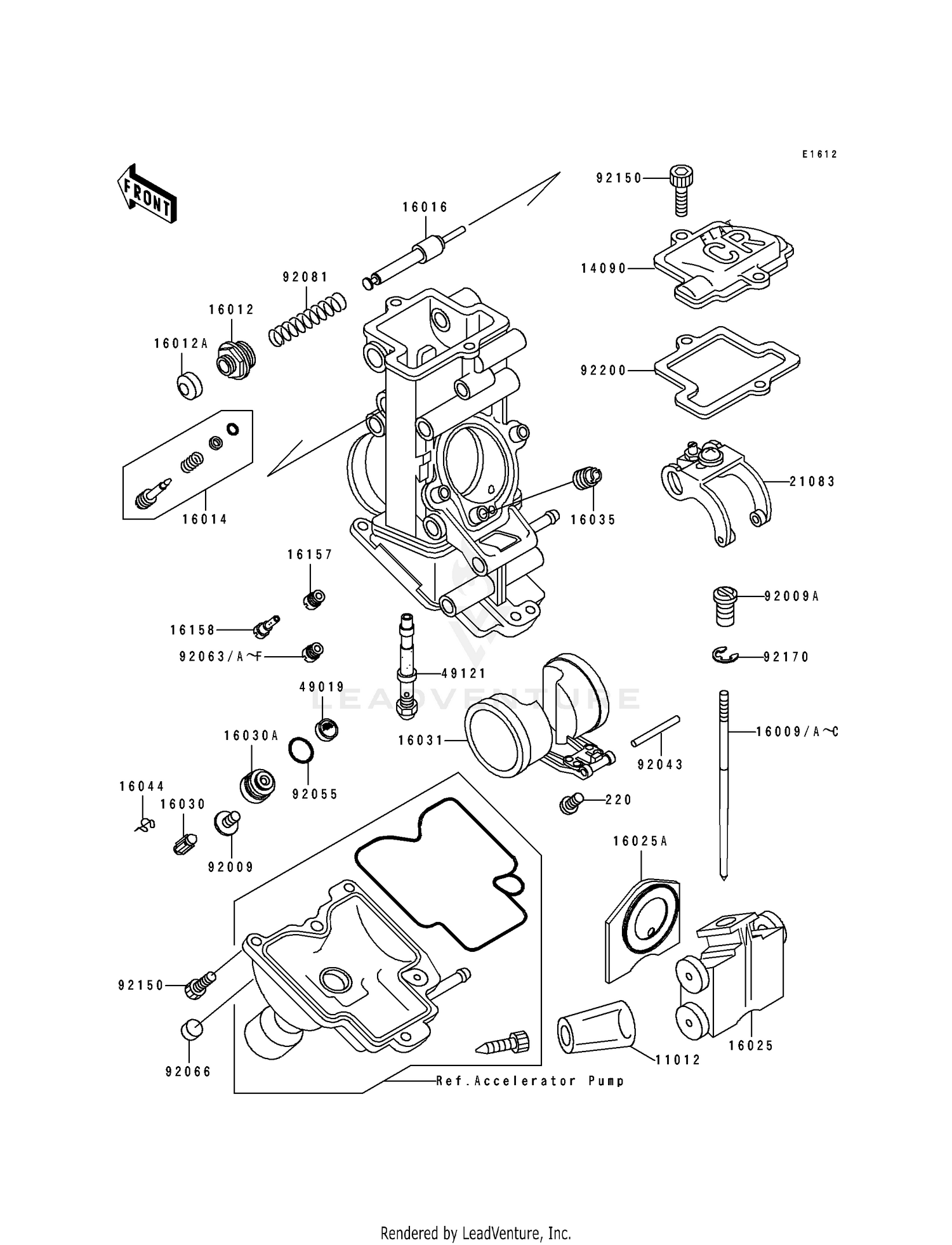

Carburetor Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,DRAIN SCREW
11012-1675
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,CHAMBER TOP
14090-1150
|
$53.98 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,N1MA,OUTSIDE
16009-1780
|
|||
|
Unavailable |
|||
|
#16009A
NEEDLE-JET,N1HC,INSIDE
16009-1781
|
|||
|
Unavailable |
|||
|
#16009B
NEEDLE-JET,N1NA,OUTSI
16009-1782
|
$31.36 | ||
|
Available to order. Add to View Price |
|||
|
#16009C
NEEDLE-JET,N1GC,INSID
16009-1783
|
$31.36 | ||
|
Available to order. Add to View Price |
|||
|
#16012
CAP-STARTER PLUNGER
16012-1051
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#16012A
CAP-STARTER PLUNGER
16012-1052
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1075
|
$23.40 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1081
Superseded by 16016-1082
|
$45.32 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE
16025-1177
|
$408.14 | ||
|
Available to order. Add to View Price |
|||
|
#16025A
VALVE-THROTTLE
16025-1178
Superseded by 16025-1234
|
$224.40 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16030A
SEAT-VALVE,FLOAT
16030-1073
|
$46.58 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1072
|
$43.60 | ||
|
Available to order. Add to View Price |
|||
|
#16035
JET-AIR,#140
16035-1064
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16157
JET-STARTER,#55
16157-1061
|
$22.13 | ||
|
Available to order. Add to View Price |
|||
|
#16158
JET-SLOW,#42
16158-1051
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#21083
ARM,THROTTLE VALVE
21083-1095
|
$206.42 | ||
|
Available to order. Add to View Price |
|||
|
#49019
FILTER-FUEL,STRAINER
49019-3707
|
$7.87 | ||
|
Available to order. Add to View Price |
|||
|
#49121
NOZZLE-MAIN
49121-1057
|
$31.19 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,4X8
92009-1550
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1630
Superseded by 92009-1876
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1207
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,VALVE SEAT
92055-1425
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,#100
92063-1008
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
MAIN JET,2ND,#70
92063-1094
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#180
92063-1388
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#185
92063-1390
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#190
92063-1391
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#195
92063-1392
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#92063F
JET-MAIN,#200
92063-1401
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,STARTER PLUNGER
92081-1761
|
$9.03 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,4X10
92150-1427
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,JET NEEDLE
92170-1204
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92200
GASKET,MIXING CHAMBER
92200-1116
|
$15.19 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220D0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
