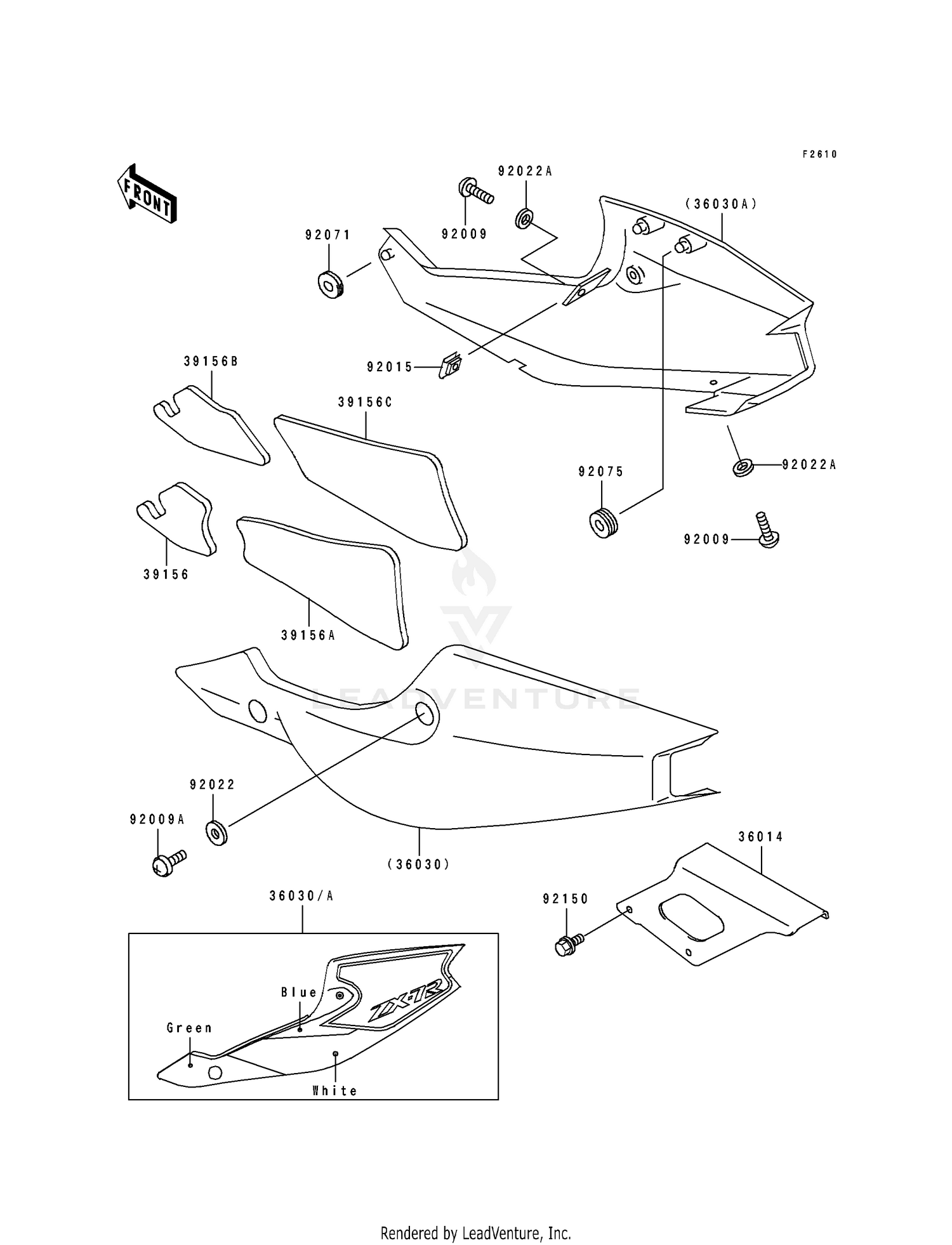

Side Covers/chain Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#36014
CASE-CHAIN
36014-1176
|
$66.41 | ||
|
Available to order. Add to View Price |
|||
|
#36030
COVER-SIDE,LH,GREEN/W
36030-5159-KE
|
$833.40 | ||
|
Available to order. Add to View Price |
|||
|
#36030A
COVER-SIDE,RH,GREEN/W
36030-5160-KE
|
$833.40 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,SIDE COVER,LH
39156-1339
|
$7.28 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,SIDE COVER,LH
39156-1340
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,SIDE COVER,RH
39156-1341
|
$7.28 | ||
|
Available to order. Add to View Price |
|||
|
#39156C
PAD,SIDE COVER,RH
39156-1342
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X16,BLACK
92009-1654
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X14
92009-1662
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,5MM
92015-1798
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X16X1
92022-1143
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,NYLON,5.3X11.5X1.5
92022-1521
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-1043
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1629
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,6X12
92150-1235
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
