1993 Kawasaki NINJA ZX-7R Fuel Tank (zx750-m1) OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

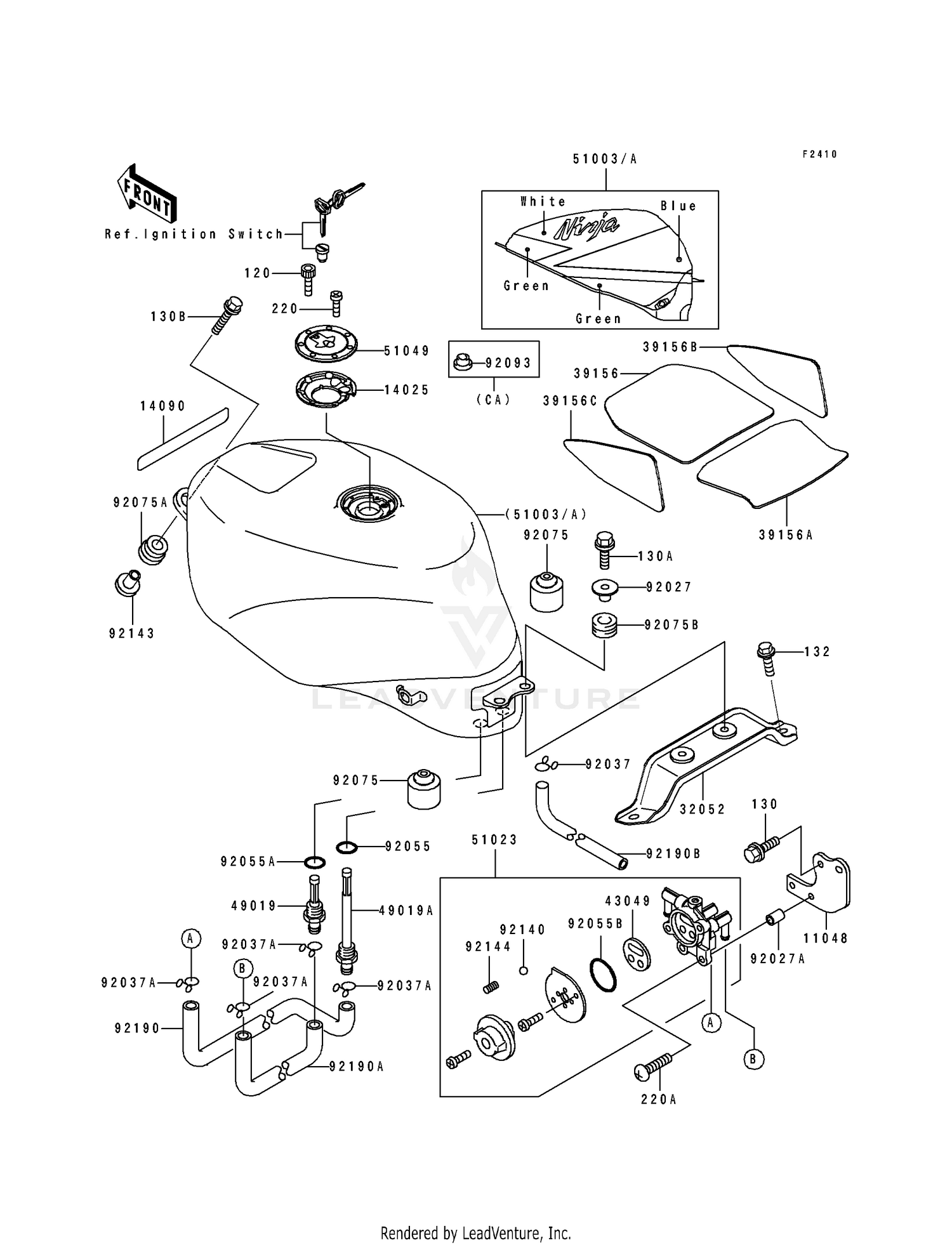

Fuel Tank (zx750-m1) Diagram

Item MSRP Qty
#11048 BRACKET,FUEL TAP
11048-1150
 $12.74
Available to order.
Add to View Price
#14025 COVER,TANK CAP
14025-1913
 $20.78
Available to order.
Add to View Price
#14090 COVER,FUEL TANK
14090-1338
 $5.71
Available to order.
Add to View Price
#32052 BRACKET-TANK,RR
32052-1367
 $33.93
Available to order.
Add to View Price
#39156 PAD,FUEL TANK,FR
39156-1312
 $21.78
Available to order.
Add to View Price
#39156A PAD,FUEL TANK,RR
39156-1313
 $17.21
Available to order.
Add to View Price
#39156B PAD,FUEL TANK,SIDE,LH
39156-1314
 $14.76
Available to order.
Add to View Price
#39156C PAD,FUEL TANK,SIDE,RH
39156-1315
 $13.46
Available to order.
Add to View Price
#43049 PACKING,TAP VALVE
43049-1066
Superseded by 43049-1091
 $7.01
Available to order.
Add to View Price
#49019 FILTER-FUEL
49019-1070
 $17.80
Available to order.
Add to View Price
#49019A FILTER-FUEL,"ON"
49019-1074
 $18.78
Available to order.
Add to View Price
#51003 TANK-COMP-FUEL,GREEN/
51003-5493-KE
 $2,011.01
Available to order.
Add to View Price
#51003A TANK-COMP-FUEL(SUB)
51003-5494-KE
 $2,743.88
Available to order.
Add to View Price
#51023 TAP-ASSY,FUEL
51023-1203
Superseded by 51023-1323
 $102.11
Available to order.
Add to View Price
#51049 CAP-TANK,FUEL
51049-1091
Superseded by 51049-0018
 $110.64
Available to order.
Add to View Price
#92027 COLLAR,L=13.1,BLACK
92027-1450
 $6.02
Available to order.
Add to View Price
#92027A COLLAR,6.8X10X14
92027-1966
 $4.84
Available to order.
Add to View Price
#92037 CLAMP,TUBE
92037-147
 $7.09
Available to order.
Add to View Price
#92037A CLAMP,TUBE
92037-1972
 $4.17
Available to order.
Add to View Price
#92055 RING-O,ID=9.5
92055-1386
 $3.80
Available to order.
Add to View Price
#92055A RING-O,11.5X1.5
92055-1387
 $3.80
Available to order.
Add to View Price
#92055B RING-O,TAP LEVER
92055-1419
 $4.84
Available to order.
Add to View Price
#92075 DAMPER
92075-1002
 $6.02
Available to order.
Add to View Price
#92075A DAMPER
92075-112
 $4.17
Available to order.
Add to View Price
#92075B DAMPER
92075-209
 $4.54
Available to order.
Add to View Price
#92093 SEAL,FUEL TANK CAP
92093-1030
 $7.50
Available to order.
Add to View Price
#92140 "BALL,STAINLESS,5/32",,2017-03-16 1
92140-1051
 $4.59
Available to order.
Add to View Price
#92143 COLLAR
92143-1515
 $19.32
Available to order.
Add to View Price
#92144 SPRING,FUEL TAP KNOB
92144-1212
 $4.21
Available to order.
Add to View Price
#92190 TUBE,FUEL,"ON"
92190-1349
 $18.59
Available to order.
Add to View Price
#92190A TUBE,FUEL,"RES"
92190-1350
 $16.36
Available to order.
Add to View Price
#92190B TUBE,DRAIN
92190-1453
 $20.57
Available to order.
Add to View Price
#120 BOLT-SOCKET,5X12
120S0512
Superseded by 120CB0512
 $1.71
Available to order.
Add to View Price
#130 BOLT-FLANGED,6X10
130J0610
Superseded by 130BB0610
 $2.42
Available to order.
Add to View Price
#130A BOLT-FLANGED,6X30
130J0630
Superseded by 130BB0630
 $4.29
Available to order.
Add to View Price
#130B BOLT-FLANGED,6X45
130J0645
Superseded by 130BB0645
 $4.52
Available to order.
Add to View Price
#132 BOLT-FLANGED-SMALL
132J0820
Superseded by 132BB0820
 $3.99
Available to order.
Add to View Price
#220 SCREW-PAN-CROS,5X8
220C0508
Superseded by 220AB0508
 $0.55
Available to order.
Add to View Price
#220A SCREW-PAN-CROS,6X25
220C0625
Superseded by 220AB0625
 $3.55
Available to order.
Add to View Price
