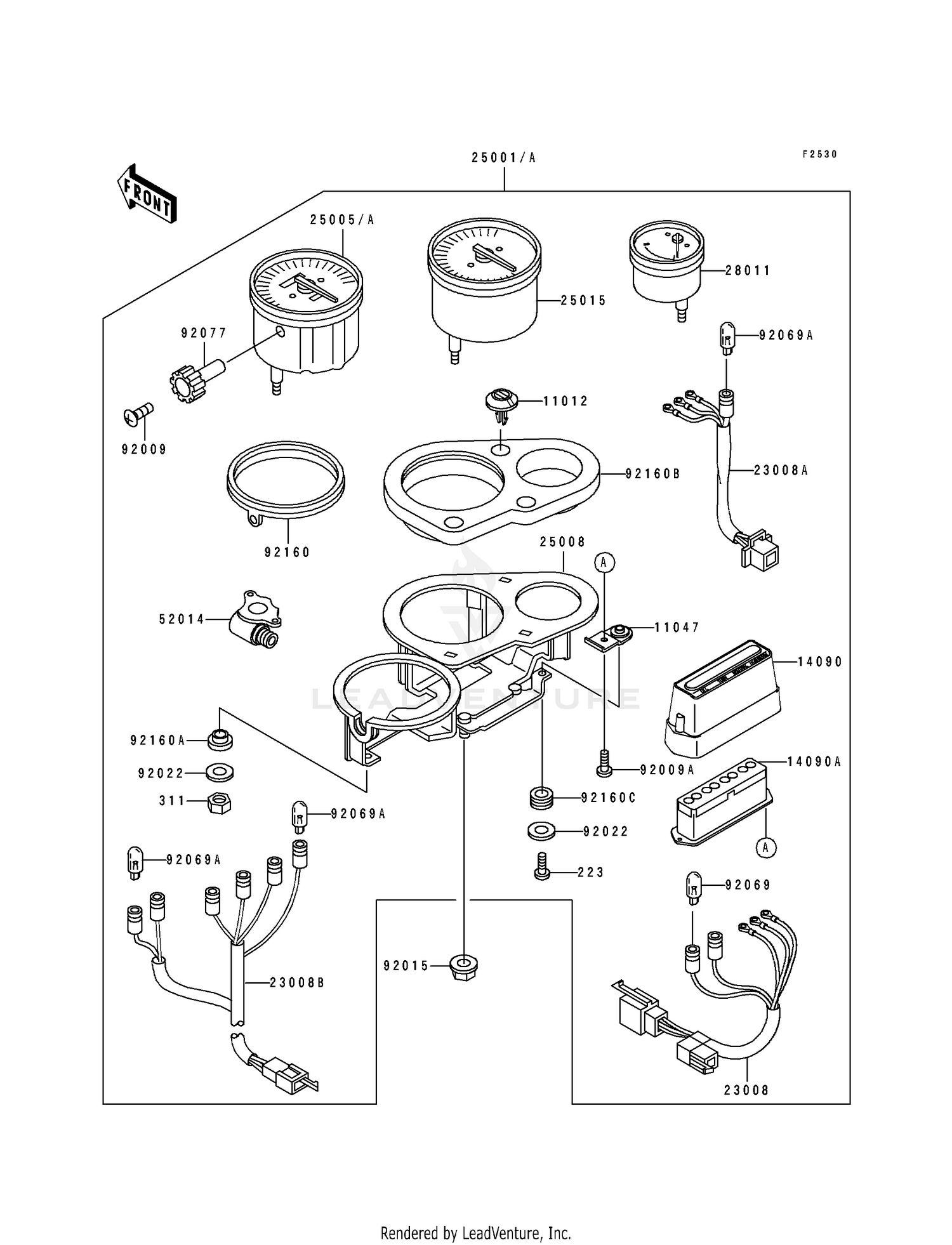

Meter(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1779
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#11047
BRACKET,PILOT BOX
11047-1557
|
$12.83 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,PILOT BOX,UPP
14090-1072
|
$33.40 | ||
|
Available to order. Add to View Price |
|||
|
#14090A
COVER,PILOT BOX,LWR
14090-1073
|
$30.53 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,TACHOMETER
23008-1386
|
$62.88 | ||
|
Available to order. Add to View Price |
|||
|
#23008A
SOCKET-ASSY,TEMP METER
23008-1388
|
$42.26 | ||
|
Available to order. Add to View Price |
|||
|
#23008B
SOCKET-ASSY,SPEEDOMET
23008-1465
|
$80.30 | ||
|
Available to order. Add to View Price |
|||
|
#25001
METER-ASSY,MPH
25001-1901
|
$1,560.91 | ||
|
Available to order. Add to View Price |
|||
|
#25001A
METER-ASSY,KPH
25001-1902
|
|||
|
Unavailable |
|||
|
#25005
SPEEDOMETER,KPH
25005-1522
|
|||
|
Unavailable |
|||
|
#25005A
SPEEDOMETER,MPH
25005-1544
Superseded by 25005-1545
|
$326.07 | ||
|
Available to order. Add to View Price |
|||
|
#25008
BRACKET-METER
25008-1175
|
$101.91 | ||
|
Available to order. Add to View Price |
|||
|
#25015
TACHOMETER,X1000R/MIN
25015-1316
|
$394.78 | ||
|
Available to order. Add to View Price |
|||
|
#28011
METER,TEMP
28011-1129
|
$135.40 | ||
|
Available to order. Add to View Price |
|||
|
#52014
ELBOW
52014-1081
Superseded by 52014-0002
|
$75.79 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,2X6,BLACK
92009-1172
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,3X16
92009-1391
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,4.3X12.5X1
92022-1949
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V3W T-7
92069-1020
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,14V 3W,T6.5
92069-1068
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,METER
92077-1073
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,SPEEDOMETER
92160-1064
|
$25.94 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1068
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#92160B
DAMPER,TACHO&TEMP MET
92160-1274
|
$42.70 | ||
|
Available to order. Add to View Price |
|||
|
#92160C
DAMPER,PILOT BOX
92160-1320
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X6
223C0406
Superseded by 223AB0406
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,4MM
311C0400
Superseded by 311AB0400
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
