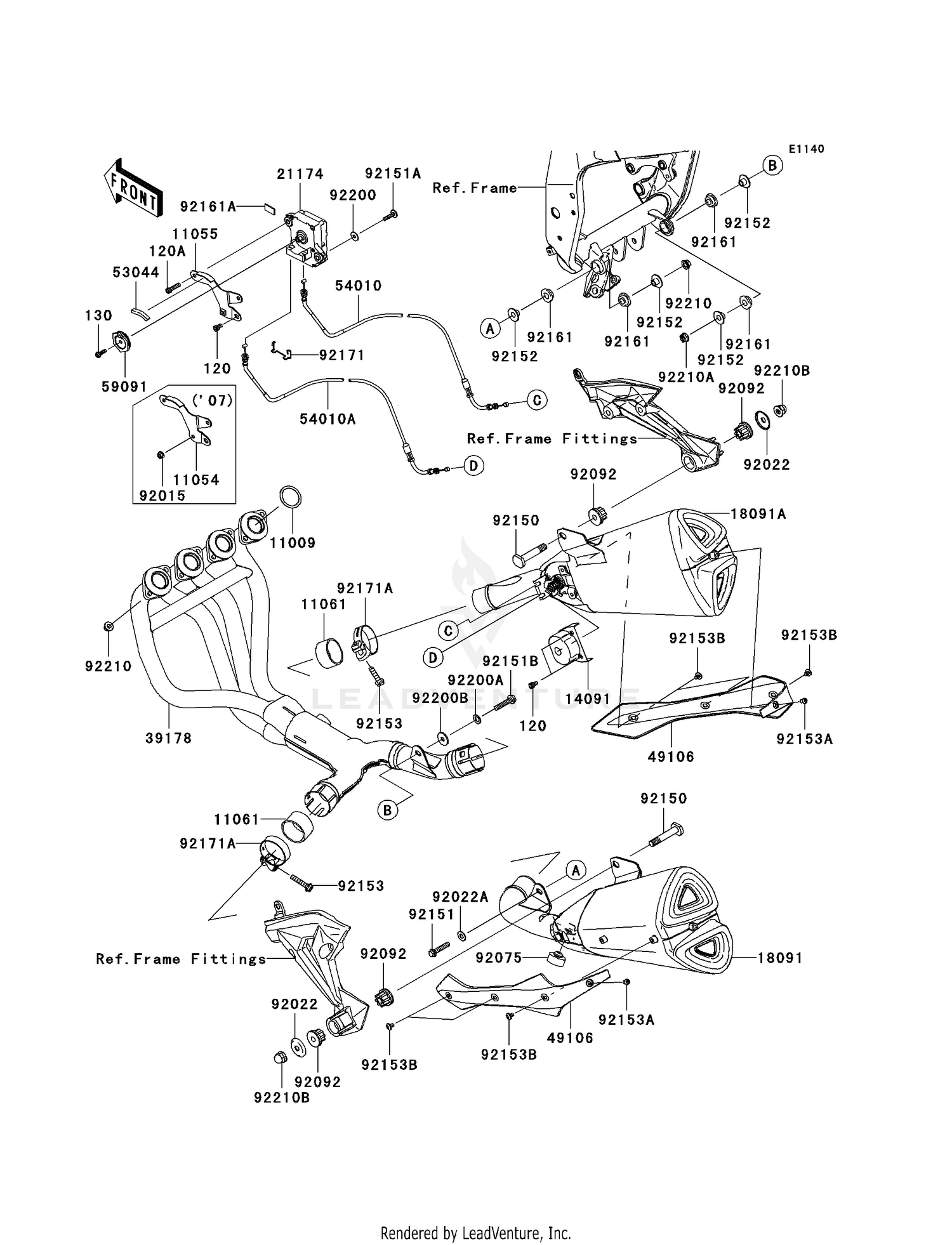

Muffler(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X10
120CB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#120A
BOLT-SOCKET,6X25
120W0625
Superseded by 120CB0625
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X18
130L0518
Superseded by 130BB0518
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,EXHAUST PIPE HOLDER
11009-1856
|
$5.48 | ||
|
Available to order. Add to View Price |
|||
|
#11055
BRACKET,MOTOR
11055-0341
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,MUFFLER CONNECTING
11061-0240
|
$33.20 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,PULLEY
14091-0712
|
$40.09 | ||
|
Available to order. Add to View Price |
|||
|
#18091
BODY-COMP-MUFFLER,LH
18091-0292
|
$1,236.97 | ||
|
Available to order. Add to View Price |
|||
|
#18091A
BODY-COMP-MUFFLER,RH
18091-0433
|
$1,357.30 | ||
|
Available to order. Add to View Price |
|||
|
#21174
MOTOR-ELECTRIC
21174-0003
Superseded by 21174-0005
|
$323.55 | ||
|
Available to order. Add to View Price |
|||
|
#39178
MANIFOLD-COMP-EXHAUST
39178-0108
Superseded by 39178-0115
|
$1,577.32 | ||
|
Available to order. Add to View Price |
|||
|
#49106
COVER-MUFFLER
49106-0071
|
$198.57 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,L=40
53044-0012
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#54010
CABLE,OPEN,WHITE NUT
54010-0079
|
$86.80 | ||
|
Available to order. Add to View Price |
|||
|
#54010A
CABLE,CLOSE,BLACK NUT
54010-0080
|
$86.80 | ||
|
Available to order. Add to View Price |
|||
|
#59091
PULLEY
59091-0007
|
$21.50 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-289
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,8.5X19X1.2
92022-3730
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1737
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER,MUFFLER
92092-1087
|
$19.19 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,10X55
92150-1792
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,8X40
92151-1532
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,SOCKET,6X25
92151-1611
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#92151B
BOLT,8X40
92151-2130
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0188
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,8X45
92153-0702
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,HEX HEAD,6X8
92153-1758
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,HEX HEAD,6X8
92153-1839
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,MANIFOLD MOUNT
92161-0532
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-1170
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0292
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-0924
|
$22.70 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0078
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,10X18X1.2
92200-0400
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,8X26X2.3
92200-3780
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,8MM
92210-0121
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,FLANGED,LOCK,8MM
92210-0159
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#92210B
NUT,CAP,10MM
92210-1121
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
