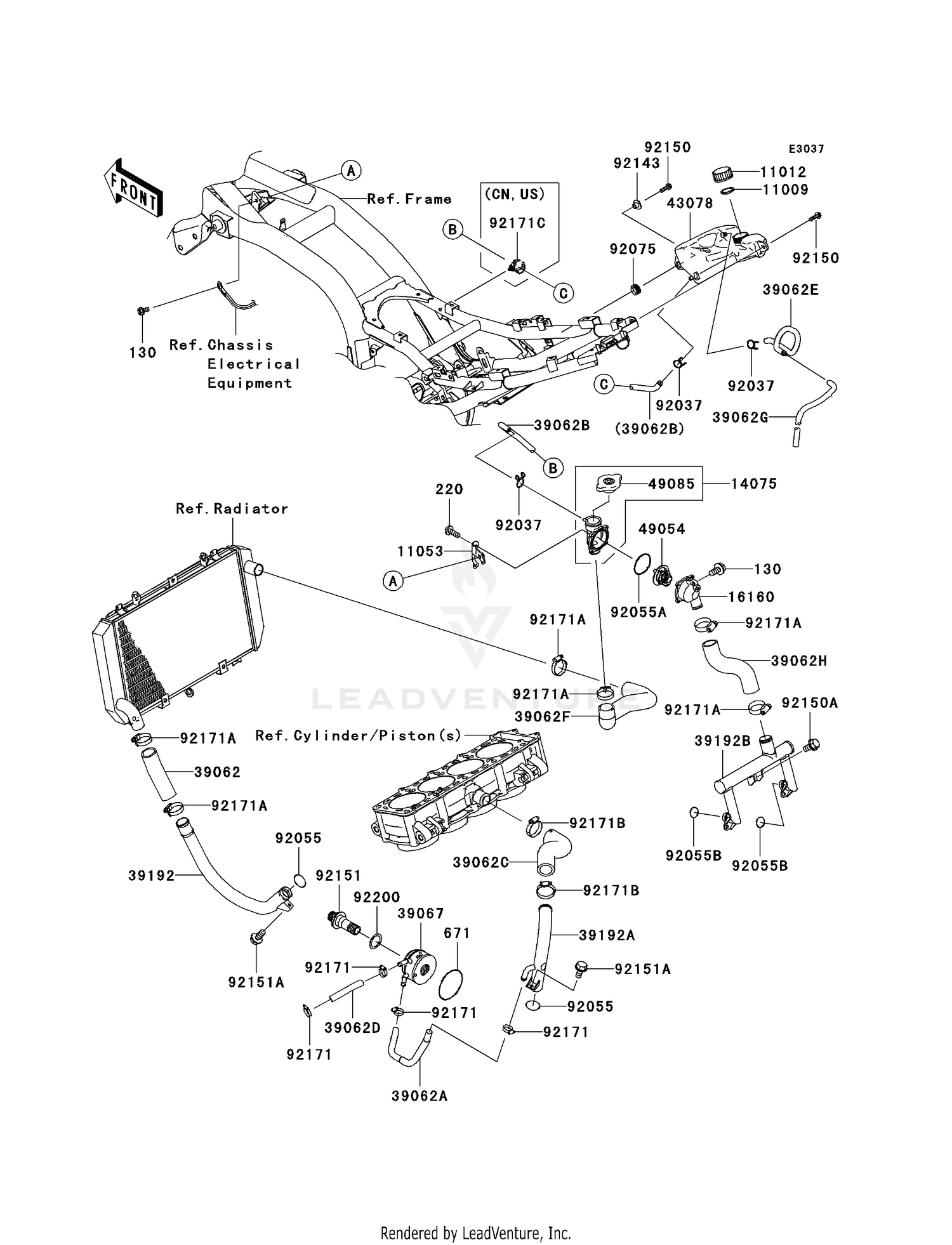

Water Pipe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X12
130J0612
Superseded by 130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X14
220D0514
Superseded by 220AA0514
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,RESERVOIR TANK CAP
11009-1145
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11053
BRACKET,THERMOSTAT
11053-1070
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14075
CAP-ASSY
14075-0001
|
$136.53 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY,LWR
16160-0039
|
$67.27 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,RAD.-PIP
39062-0190
Superseded by 39062-0673
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,PIPE-OIL
39062-0205
|
$49.85 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,RESERVOI
39062-0207
|
$17.32 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,PUMP-CYL
39062-0208
|
$34.16 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING,9X15X105
39062-0211
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#39062E
HOSE-COOLING,OVER FLO
39062-0213
|
$35.40 | ||
|
Available to order. Add to View Price |
|||
|
#39062F
HOSE-COOLING,THERMO-R
39062-0234
Superseded by 39062-0675
|
$73.28 | ||
|
Available to order. Add to View Price |
|||
|
#39062G
HOSE-COOLING
39062-1226
|
$31.80 | ||
|
Available to order. Add to View Price |
|||
|
#39062H
HOSE-COOLING,HEAD-THE
39062-1916
Superseded by 39062-0674
|
$34.41 | ||
|
Available to order. Add to View Price |
|||
|
#39067
COOLER-OIL
39067-0012
|
$723.51 | ||
|
Available to order. Add to View Price |
|||
|
#39192
PIPE-WATER
39192-0046
|
$66.17 | ||
|
Available to order. Add to View Price |
|||
|
#39192A
PIPE-WATER
39192-0069
|
$66.17 | ||
|
Available to order. Add to View Price |
|||
|
#39192B
PIPE-WATER
39192-1151
Superseded by 39192-0073
|
$205.05 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-0033
|
$40.32 | ||
|
Available to order. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1067
Superseded by 49054-0004
|
$56.71 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1066
|
$36.13 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,20.8X2.4
92055-0114
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,53.5X2.6
92055-112
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,18.54X2.6
92055-1350
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1634
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1962
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,6X20
92150-1633
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,FLANGED-SMALL,6X12
92150-1841
Superseded by 92154-1888
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,OIL COOLER
92151-1366
|
$84.17 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,6X12
92151-1997
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,COOLING HOSE
92171-0142
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-0179
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#92171B
CLAMP
92171-0180
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#92171C
CLAMP
92171-0864
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,OIL COOLER
92200-1379
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,65MM
671B2565
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
